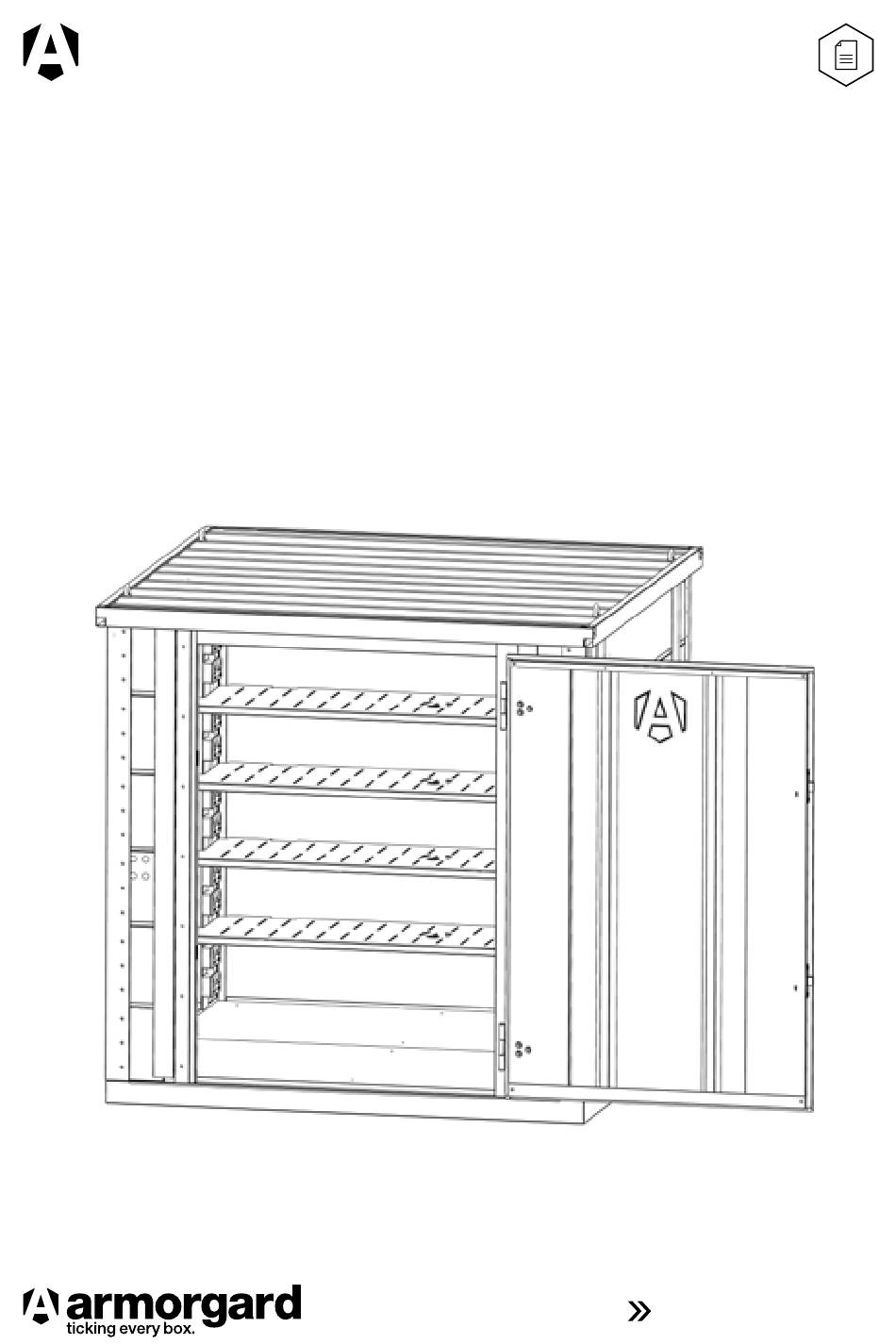

- Page 1 Operational and maintenance manual Suitable for: FR200-P 023 9238 0280 armorgard.co.uk...
- Page 2 Welcome Welcome to your Armorgard PowerStor. Supplied pre-assembled and immediately ready for use, providing the solution to safely and securely charge tool batteries on site. Please read this operational and maintenance manual carefully prior to using the PowerStor.
-
Page 3: Table Of Contents
Contents Safety information Electrical safety information Product routine inspection Product specification What’s included You’ll need Getting to know your PowerStor How to assemble How to use Using the lifting eyes Optional extras Attaching the BlokkaBar (optional extra) Using the BlokkaBar (optional extra) Attaching the ramp (optional extra) Storing the unit Transporting the unit... -
Page 4: Safety Information
Safety information Before using the PowerStor, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence or misuse. Ensure the PowerStor is not damaged before using it. Lock the PowerStor when not in use or out of sight. -
Page 5: Electrical Safety Information
Regular visual inspections are necessary and to be done by a trained person - a specialist/expert is not required for this. Please note that the electrical equipment installed within the PowerStor is not ATEX rated. Please contact Armorgard as upgrades on the unit are available on an extra cost. Electrical safety information Ensure an assessment has been made of any electrical hazards before using it. Make sure that workers know how to use the electrical equipment safely. Ensure there are no trailing cables that can cause people to trip or fall. -
Page 6: Product Routine Inspection
Product routine inspection The PowerStor arrives fully tested to current UK regulations. It is the customer’s responsibility to carry out all relevant electrical testing on an annual basis. A competent person should regularly check the red fuse cord and fire suppression system for any damage. Any damage should be immediately reported. The fire suppression system is 15 years maintenance free. If connected into an existing fire/smoke alarm system, the PowerStor should become part of the routine alarm testing schedule. Whilst every effort has been made to ensure this operational and maintenance manual covers every aspect needed to operate your product safely, please take care whilst using the product and always operate with caution. -
Page 7: Product Specification
Product specification Product Description Weight (kg) External Dimensions Internal Dimensions Code W x D x H (mm) W x D x H (mm) FR200-P PowerStor 2075x2075x2160 1920x1850x1795... -
Page 8: What's Included
What’s included... 1x PowerStor unit 3x keys 5x shelves 16x RCD protected 1x fire suppression double sockets system... -
Page 9: You'll Need
You’ll need... 1x 32A extension lead... -
Page 10: Getting To Know Your Powerstor
Getting to know your PowerStor Safely and securely charging tool batteries on site with the PowerStor. Crane lifting eyes Twin 5-lever deadlocks 32A 240V appliance inlet and isolator switch Sockets Forklift skids Shelves 5-lever Forklift skids Crane lifting Light supply Power supply deadlock eyes 240V... -
Page 11: How To Assemble
How to assemble PowerStor arrives fully assembled, It is important to check that product you will require a forklift or pallet is not damaged upon arrival and all truck when unloading your parts are intact, particularly assessing PowerStor. electrical components. -
Page 12: How To Use
How to use Simply plug the unit in to a power Inside the unit is a fused light switch. source using a 32A extension lead. This can be used to indicate that Always carry out a risk assessment there is power supplied into the unit. prior to doing so. We recommend getting a qualified engineer to connect the PowerStor into any existing fire and smoke alarm... -
Page 13: Using The Lifting Eyes
Using the lifting eyes Before lifting, ensure that the bolts Attach the lifting equipment to all holding the lifting eyes are securely four lifting eyes and ensure that the in place. load is lifted evenly across all four eyes. The lifting eyes are only provided for positioning of the PowerStor, and the unit must be empty while lifting. -
Page 14: Optional Extras
Take your PowerStor to the next level with these optional extras Contact the Armorgard team to find out more about the optional extras for your product. BlokkaBar Ramp To enhance your To improve PowerStor’s security accessibility when moving heavy equipment... -
Page 15: Attaching The Blokkabar (Optional Extra)
Attaching the BlokkaBar (optional extra) To install the BlokkaBar, locate the Place the lock housing of the pre-drilled holes on either side of the BlokkaBar on the left side of the door. Then, remove the coach bolts door. The other housing should and blanking plate. be placed on the right side of the door. Ensure the padlock is located in the Inside the PowerStor, replace locking housing with the lock facing... -
Page 16: Using The Blokkabar (Optional Extra)
Using the BlokkaBar (optional extra) To unlock the BlokkaBar, place the Remove the bar by pulling it and sliding key in the keyhole of the lock on the it to the left. This will allow the access bottom, and turn. This will unlock, to the door’s locking system. releasing the pin. To lock for maximum security, ensure Then, push in the pin of the lock that that the PowerStor door is locked is located at the bottom of the left before placing the BlokkaBar. -
Page 17: Attaching The Ramp (Optional Extra)
Attaching the ramp (optional extra) Position the ramp along the opening When using the ramp, do not exceed of the PowerStor, with the doors of the the 2200lbs UDL that it was designed unit open to improve accessibility when for. Do not close the door whilst the moving equipment. -
Page 18: Storing The Unit
Storing the unit To save space. PowerStors can be Ensure that all locks are secured safely stacked up to 2 storeys high when leaving the PowerStor un- when empty. attended. Use the BlokkaBar to enhance security if needed. -
Page 19: Transporting The Unit
Transporting the unit The PowerStor has been designed specifically to make transporting the product easy. The four crane lifting eyes come with the PowerStor and are attached to the roof. These are for ease of transporting the unit only. The unit should never be lifted when loaded. Always use the forklift pockets when transporting by forklift. During transport, ensure that the PowerStor is secured to the carrier by strapping down the unit fully. -
Page 20: Equipment Care
Equipment care The PowerStor is weather resistant and constructed with a durable powder coated finish, so it is suitable for outdoor use. It is always important to note that any electrics or equipment susceptible to water damage should be sealed and placed higher up the PowerStor, using the shelves if necessary. It is important to ensure that all PowerStor bolts remain in good condition and that they are always bolted on tightly. -
Page 21: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of 12 months - please refer to the terms and conditions for what this covers. We also keep replacement keys and offer replacement locks for all Armorgard products up to five years old. To get a replacement key, all you’ll need is the distributor you purchased from,... -
Page 22: Notes
Notes... - Page 23 Notes...
- Page 24 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office + 33 (0) 4 81 16 06 69 +61 (0) 1300 131 751 commercial@armorgard.fr...
