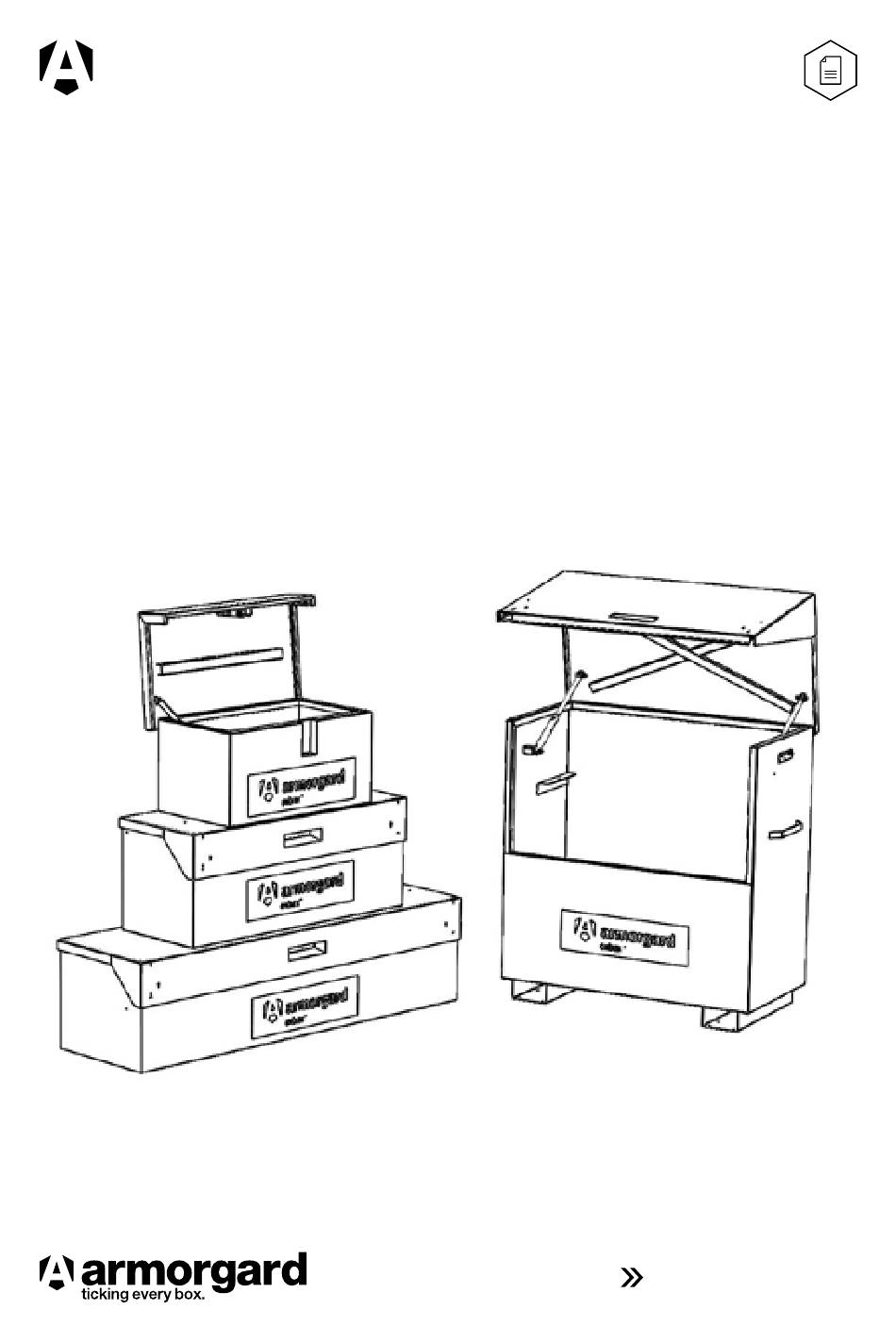

- Page 1 Operational and maintenance manual Suitable for: OX05, OX1, OX2, OX3, OX4, OX6 023 9238 0280 armorgard.co.uk...
- Page 2 Welcome Welcome to your Armorgard OxBox. Our simple, dependable security box is designed to help safeguard your tools, equipment, and livelihood. The OxBox comes ready to use, but please consult this manual for instructions on how to get the most from it.
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your OxBox How to assemble Mounting the OxBox Optional extras Fitting the castors Storing the unit Transporting the unit Equipment care Ongoing maintenance Warranty Locks, keys and spare parts Notes... -
Page 4: Safety Information
If castor wheels are fitted, these must be installed according to our specification and should be checked regularly to ensure they are still fit for purpose. If a gas strut or lid stay becomes damaged, contact Armorgard or your reseller for a replacement. Ensure that all OxBox parts are in good working condition prior to using the OxBox. Whilst every effort has been made to ensure this operational and maintenance manual covers every aspect needed to operate your product safely, please take care whilst using the product and always operate with caution. -
Page 5: Product Specification
Product specification Product Description Weight (kg) External Dimensions Internal Dimensions Code W x D x H (mm) W x D x H (mm) OX05 Van box 810x470x385 755x425x370 Van box 885x470x450 830x425x435 Truck box 1155x450x460 1130x425x445 Site box 4x2x2 1210x625x645 1115x595x550 Site chest 4x4x2 89 1215x595x1185... -
Page 6: What's Included
What’s included... 1x OxBox 2x keys (OX1, OX05) 3x keys (OX2, OX3, OX4, OX6) -
Page 7: Tools You'll Need
Tools you’ll need... 13mm spanner M8 bolts ratchet or socket (for mounting or (for mounting or adding castors) adding castors) Multiple people may be required to assist with lifting Please see page 14 for instructions on how to add castors to your OxBox. -
Page 8: Getting To Know Your Oxbox
Getting to know your oxbox The simple and dependable solution for securing tools and equipment Gas struts to assist in lifting lid Dataplate featuring each unique product serial number SlamStop lid Forklift skids Gas strut arms Gas strut arms Gas strut arms stay OX3, OX4 (300N) - Page 9 Armorgard SlamStop lid stay to ensure the lid is held open Keyed alike 5-lever deadlocks Corner guards for Lugs for optional added security storage shelf to organise equipment (OX4) Forklift skids for easy transportation. Castors can be added here 1.5mm material...
-
Page 10: How To Assemble
How to assemble The OxBox boxes arrive fully It is important to check that the assembled product is not damaged upon arrival and all parts are intact. You may require a forklift truck or pallet truck when unloading your OxBox. -
Page 11: Mounting The Oxbox
If you are installing the OxBox in The vehicle manufacturer should a vehicle, you may need to adapt always be consulted to ensure any the vehicle. Armorgard can not proposed works will not damage be held liable for any damage to the vehicle. - Page 12 Once installed, test by pulling and pushing the box vigorously in various directions. It is imperative to ensure it is firmly fixed down. When fitting an OxBox in a vehicle, our guidelines MUST be followed.
-
Page 13: Optional Extras
Take your oxbox to the next level with these optional extras Contact the Armorgard team to find out more about the optional extras for your product. Storage shelf Castors (OX4) (OX3, OX4) To make your Keep your tools OxBox mobile... -
Page 14: Fitting The Castors
13mm socket to tighten platform. The box MUST be empty the M8 nylocks. when fixing castors. Castors can be fitted to smaller boxes but holes will need to be drilled by the user. Armorgard castors kits come with Repeat step two for the other two fixed and two swivel-braked wheels. Once complete, check castors. We recommend fixing the all nuts are tight, and then ensure... -
Page 15: Storing The Unit
Storing the unit The flat sides on the OxBox (except Ensure that all locks are secured OX3, OX4) can help save space when leaving the OxBox when storing the unit. unattended. This is essential to maintain the maximum security of the box. When the OxBox is stationary and in position, always ensure both castor brakes are engaged. -
Page 16: Transporting The Unit
Transporting the unit The design of the OxBox makes transporting the product easy. The OX3 and OX4 come with forklift pockets for transporting using a forklift or pallet truck. Optional castors can be fitted to these boxes using the pre-drilled holes. Please note that boxes may require more than one person to lift, and it is always advised to lift the boxes when they are empty on contents. -
Page 17: Equipment Care
Equipment care The OxBox is weatherproof, constructed with a durable powder coated finish, so it is suitable for outdoor use, however it does not mean it is waterproof. It is always important to note that any electrics or equipment susceptible to water damage should be sealed. Always ensure that the product dataplate remains visible and in good condition, especially the unique serial number, as this is required should you need a replacement lock or key. -
Page 18: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of 12 months - please refer to the terms and conditions for what this covers. We also keep replacement keys and offer replacement locks for all Armorgard products up to five years old. To get a replacement key, all you’ll need is the distributor you purchased from,... -
Page 19: Notes
Notes... - Page 20 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office New Zealand Office + 33 (0) 4 81 16 06 69 +61 (0) 1300 131 751 +64 (0) 4 280 6440 commercial@armorgard.fr...
