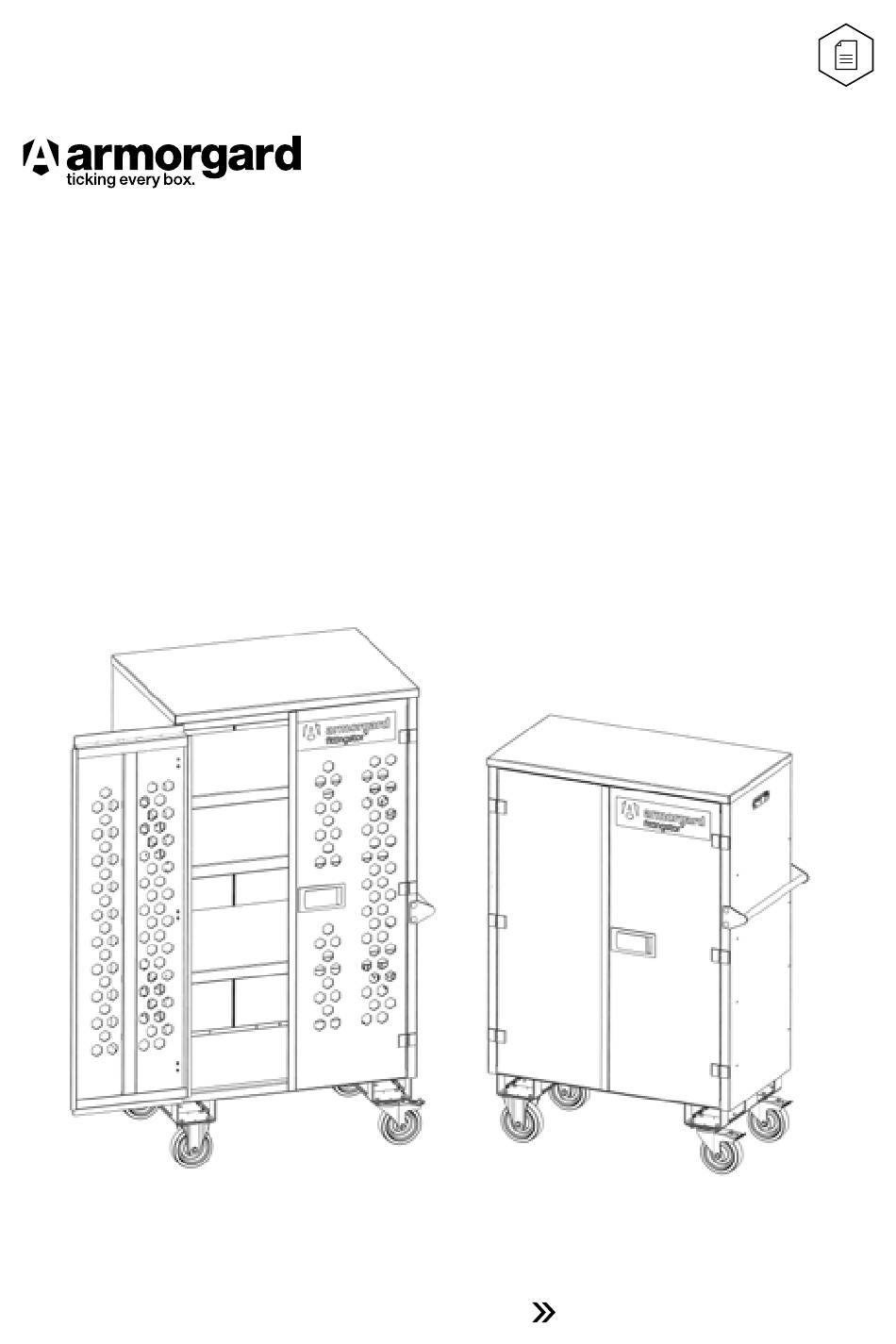

- Page 1 fittingstor Operational and maintenance manual Suitable for: FC4-T, FC6-T 1-877-794-2848 info@armorgardusa.com...
- Page 2 Welcome Welcome to your Armorgard FittingStor. Tough, tidy, transportable - a design that brings security, organization and mobility together. Please consult this manual for instructions on how to get the most from your product. Please read this operational and maintenance manual carefully prior to setting up the FittingStor.
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your FittingStor Padlock housing How to assemble Installing the casters Attaching the handle Fitting shelves on the FC4-T How to use the lock Storing the unit Transporting the unit Equipment care &... -
Page 4: Safety Information
Safety information Before using a FittingStor, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. Ensure that the FittingStor is not damaged before using it. Care should be taken to ensure contents do not make the unit unstable. When loading, ensure weight is evenly distributed and that heavier items are ALWAYS loaded in the base. -
Page 5: Product Specification
Do not exceed shelf capacity of 330 lbs. The unit has an overall WLL of 1400 lbs. When transporting, the doors must be locked shut and the product securely fastened to the vehicle. Only use UL or CSA listed electrical devices that meet the requirements of the local jurisdiction. -
Page 6: What's Included
What’s included... 1x FittingStor unit 3x shelves 1x caster kit (FC4-T/FC6-T) (FC4-T) 1x handle kit... -
Page 7: Tools You'll Need
Tools you’ll need... 33/64” wrench or adjustable wrench (to add casters and handle) -
Page 8: Getting To Know Your Fittingstor
Getting to know your FittingStor Tough, tidy, transportable - a design that brings security, organization and mobility together. Data plate which lists FittingStor FC4-T each unique product serial number Shelves with adjustable dividers (FC4-T only) Handle to help with Padlock locking... - Page 9 FittingStor FC6-T Data plate which lists each unique product serial number Shelves to organise equipment Padlock locking mechanism Handle to help with maneuverability Heavy-duty Front and side casters with access forklift brakes pockets Shelves...
-
Page 10: Padlock Housing
Padlock housing dimensions This lock system is designed to be used with a Master Lock No. 1, Master Lock No. 5, ABUS 41/50 or American Lock No. 50, or an equivalent sized lock. If you are using a padlock not listed above, it is your responsibility to make sure the lock mechanism is working correctly. -
Page 11: How To Assemble
How to assemble You may require a forklift or It is important to check that the pallet truck when unloading your product is not damaged upon arrival FittingStor. and all parts are intact. -
Page 12: Installing The Casters
Video: how to attach the casters Installing the casters Lift the FittingStor onto a stable Two of the casters are swivel-braked. platform to ensure it does not roll We recommend installing the 2x braked and cause injury. The unit MUST casters on same side, and if applicable, be empty when installing cast- where the side handle is located. -
Page 13: Attaching The Handle
Video: how to attach the handle Attaching the handle Locate the outer pre-drilled holes Feed the bolts through the handle near the corner of the cabinets. Take into the cabinet. the handle and align the unit holes with the ones in the plate. With the doors open, fix the washer and nut onto the fed-through bolts starting at the front of the cabinet. -
Page 14: Fitting Shelves On The Fc4-T
Fitting shelves on the FC4-T Locate the shelf brackets in each Slide the shelf into the interior of side of the cabinet body of the the FittingStor and let it rest on the FC4-T. top surface of the brackets, until it touches the rear of the cabinet. -
Page 15: How To Use The Lock
Video: how to use T-Latch Lock How to use the lock To open the unit, locate the lock Unlock the padlock and remove housing at the center of the door. Open the cover plate to expose the locking mechanism. Twist the handle 90° to release the Grab the T Handle and swing it to door and pull to open it. - Page 16 To lock the unit, shut the door, then Ensure the T Handle is parallel to open the cover plate to expose the the front face of the door. locking mechanism. Slide an unlocked padlock into the Lock the padlock, and fit it into inner shackle of the pocket to pre- the lock housing.
-
Page 17: Storing The Unit
Storing the unit The design of the FittingStor can Ensure that all locks are secured help save space when storing the when leaving the FittingStor unat- unit. tended. This is essential to maintain the maximum security of the box. When the FittingStor is in posi- tion, always ensure the caster brakes are used. -
Page 18: Transporting The Unit
Transporting the unit The design of the FittingStor makes transporting the product easy. The FittingStors come with forklift pockets for transporting using a forklift or pallet truck. Casters for mobility must be fitted following the guidelines in this manual. Please note that the product requires more than one person to lift, and it is always advised to lift the boxes when they are empty of contents. -
Page 19: Equipment Care & Ongoing Maintenance
Equipment care The FittingStor is weather resistant and finished with a durable powder coating, so it is suitable for outdoor use, however, the unit should not be kept outside in wet conditions. It is always important to note that any electrical components or equipment susceptible to water damage should be sealed. Always ensure that the product data plate remains visible and in good condition, especially the unique serial number. -
Page 20: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of seven years - please refer to the terms and conditions for what this covers. Do not force entry into the product, as this could affect the warranty. Contact your padlock distributor if you require a replacement lock or key. - Page 21 1.4.1 Defect Arises Because the Buyer Failed to Follow the Seller’s Oral or Written Instruc- tions as to the Storage, Installation, Commissioning, Use or Maintenance of the Goods or (if There Are None) Good Trade Practice; 1.4.2 The Buyer Alters or Repairs the Goods Without the Written Consent of the Seller; 1.4.3 Defect Arises From Fair Wear and Tear (as Determined by the Seller in Its Sole and Absolute Discretion), Cosmetic Rust, Scratches, Dents, or Willful Damage, Negligence, Ab- normal Working Conditions or Misuse, Environmental or Other External Factors;...
-
Page 22: Spare Parts
Spare parts Replacement Replacement lock system kit casters Replacement shelves (FC4-T) Other spare parts available. Please get in touch for more information. -
Page 23: Notes
Notes... - Page 24 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office + 33 (0) 4 81 16 06 69 +61 (0) 1300 131 751 commercial@armorgard.fr...
