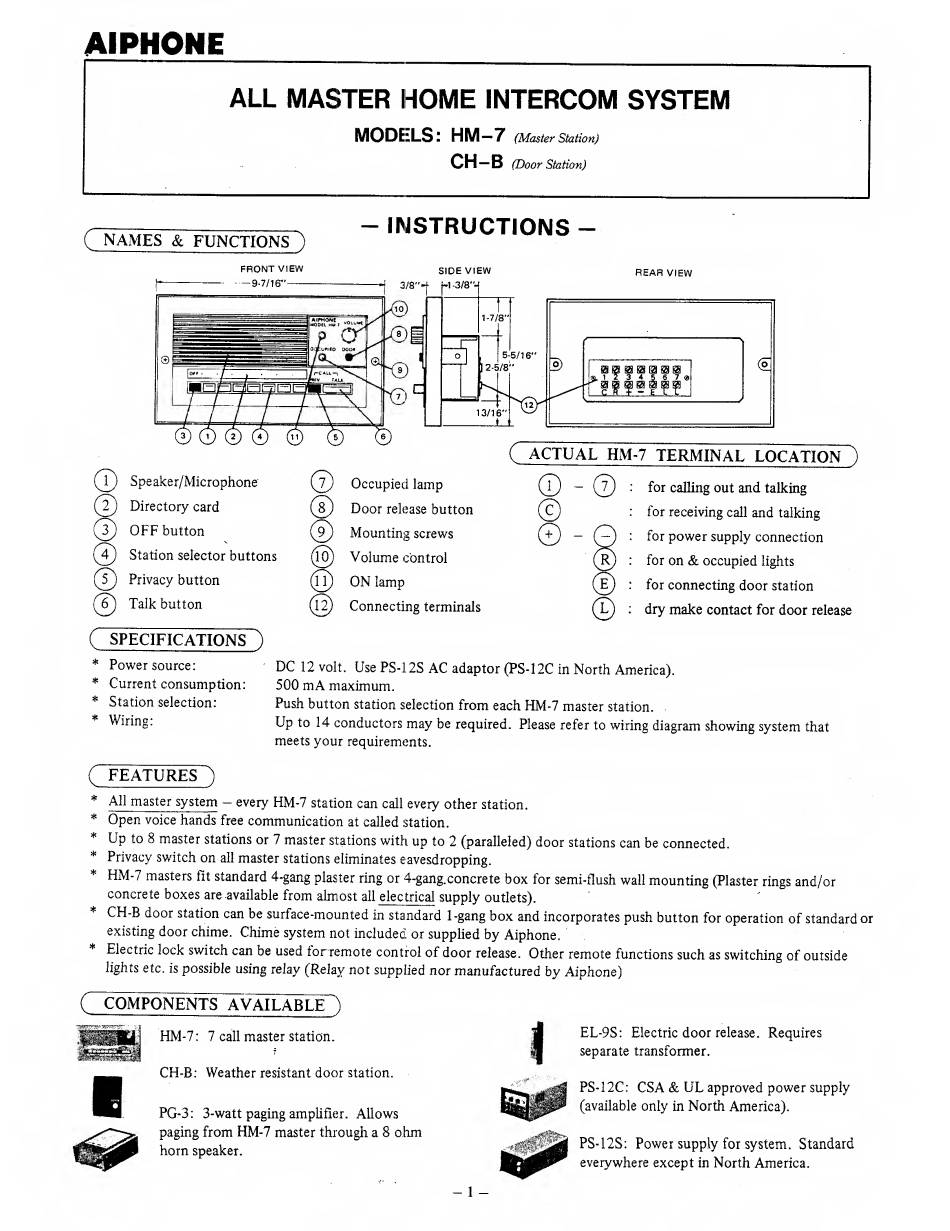

Aiphone HM-7 Instructions

AlPHONE
ALL MASTER HOME INTERCOM SYSTEM
MODE:LS: HM-7
(Master Station)
CH-B
(Door Station)
NAMES & FUNCTIONS
FRONT VIEW
-9-7/16'*-
- INSTRUCTIONS -
SIDE VIEW
--| 3/8"-j- [-1-3/8'*-j
ol I 15-5/16"
~T
D
2-5/8"
(jJ) Speaker/Microphone
Directory card
(3^ OFF button
(7) Station selector buttons
Privacy button
Talk button
f SPECIFICATIONS )
(T) Occupied lamp
(J) Door release button
Mounting screws
(1^ Volume control
(n) ON lamp
Connecting terminals
ACTUAL HM-7 TERMINAL LOCATIOI^
CD ~ CD
• calling out and talking
: for receiving call and talking
-
for calling out and talking
for receiving call and talking
for power supply connection
for on & occupied lights
for connecting door station
dry make contact for door release
* Power source:
* Current consumption:
* Station selection:
* Wiring:
FEATURES
DC 12 volt. Use PS-I2S AC adaptor (PS-12C in North America).
500 mA maximum.
Push button station selection from each HM-7 master station.
Up to 14 conductors may be required. Please refer to wiring diagram showing system that
meets your requirements.
* All master system — every HM-7 station can call every other station.
* Open voice hands free communication at called station.
* Up to 8 master stations or 7 master stations with up to 2 (paralleled) door stations can be connected.
* Privacy switch on all master stations eliminates eavesdropping.
HM-7 masters fit standard 4-gang plaster ring or 4-gang.concrete box for semi-flush wall mounting (Plaster rings and/or
concrete boxes are available from almost ail electrical supply outlets).
CH-B door station can be surface-mounted in standard 1-gang box and incorporates push button for operation of standard or
existing door chime. Chime system not included or supplied by Aiphone.
* Electric lock switch can be used tor remote control of door release. Other remote functions such as switching of outside
lights etc. is possible using relay (Relay not supplied nor manufactured by Aiphone)
COMPONENTS AVAILABLE )
WKi'
HM-7: 7 call master station.
^ CH-B: Weather resistant door station.
PG-3: 3-watt paging amplifier. Allows
paging from HM-7 master through a 8 ohm
horn speaker.
EL-9S: Electric door release. Requires
separate transformer.
PS-12C: CSA & UL approved power supply
(available only in North America).
PS-12S: Power supply for system. Standard
everywhere except in North America.
