Sennheiser System 2013 PLL Product Sheet

System 2013 PLL
Mikroport 2013 PLL FM Assistive Listening System

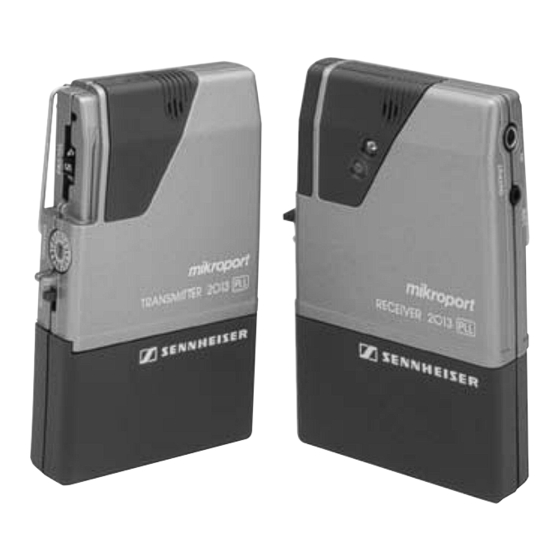

The Mikroport™ 2013 PLL system, consisting of the EK 2013 PLL receiver for hearing-impaired
persons and the SK 2013 PLL transmitter for speakers, represents a major advance in enabling
people with impaired sound perception to play a fully integrated role in education, the work-
place, and social settings. The system has been designed using the latest PLL technology
and offers the highest level of flexibility, with up to 16 selectable frequencies.
Features—Benefits
• Rugged metal housings
• Up to 40 hours operation, exchangeable battery box or rechargeable battery
• Built-in microphone in receiver and transmitter
• Phase Lock Loop technology, 16 available frequencies from which to choose
• Automatic priority circuit
• Ensure long life through real-world use
• Avoid frequent interruptions or down time
• Convenient one-unit operation
• Avoid interference and always have the clearest signal possible
• Natural sound
Technical Data
Transmitter
Carrier Frequency
Number of Channels
Frequency Stability
Radiated Power
Modulation
Nominal/Peak Deviation
AF Frequency Response
THD
Mic Sensitivity
Dimensions in inches
Weight
Receiver
Carrier Frequency
Number of Channels
Frequency Stability
Squelch
Modulation
Nominal/Peak Deviation
AF Frequency Response
THD
Dimensions in inches
Weight
Product Variants
Also available complete system which includes the Basic System plus L2013 recharger,
NT2013 adapter, MKE2013 lapel microphone, EZU2013 chest strap, and (2) BA2013 rechargeable
batteries.
72–76 MHz
16
+/- 2.0 kHz/-10°C to +55°C
1 mW
FM
+/-8 kHz/+/-12 kHz
40–6,000 Hz
< 1%
4–80 mV, adjustable
.66 x 2.24 x 3.74
4.66 oz (incl. power supply)
72–76 MHz
16
+/-2.0 kHz/-10°C to +55°C
Yes
FM
+/-8 kHz/+/-12 kHz
40–16,000 Hz
< 2%
.66 x 2.24 x 3.74
4.66 oz (incl. power supply)
continued
