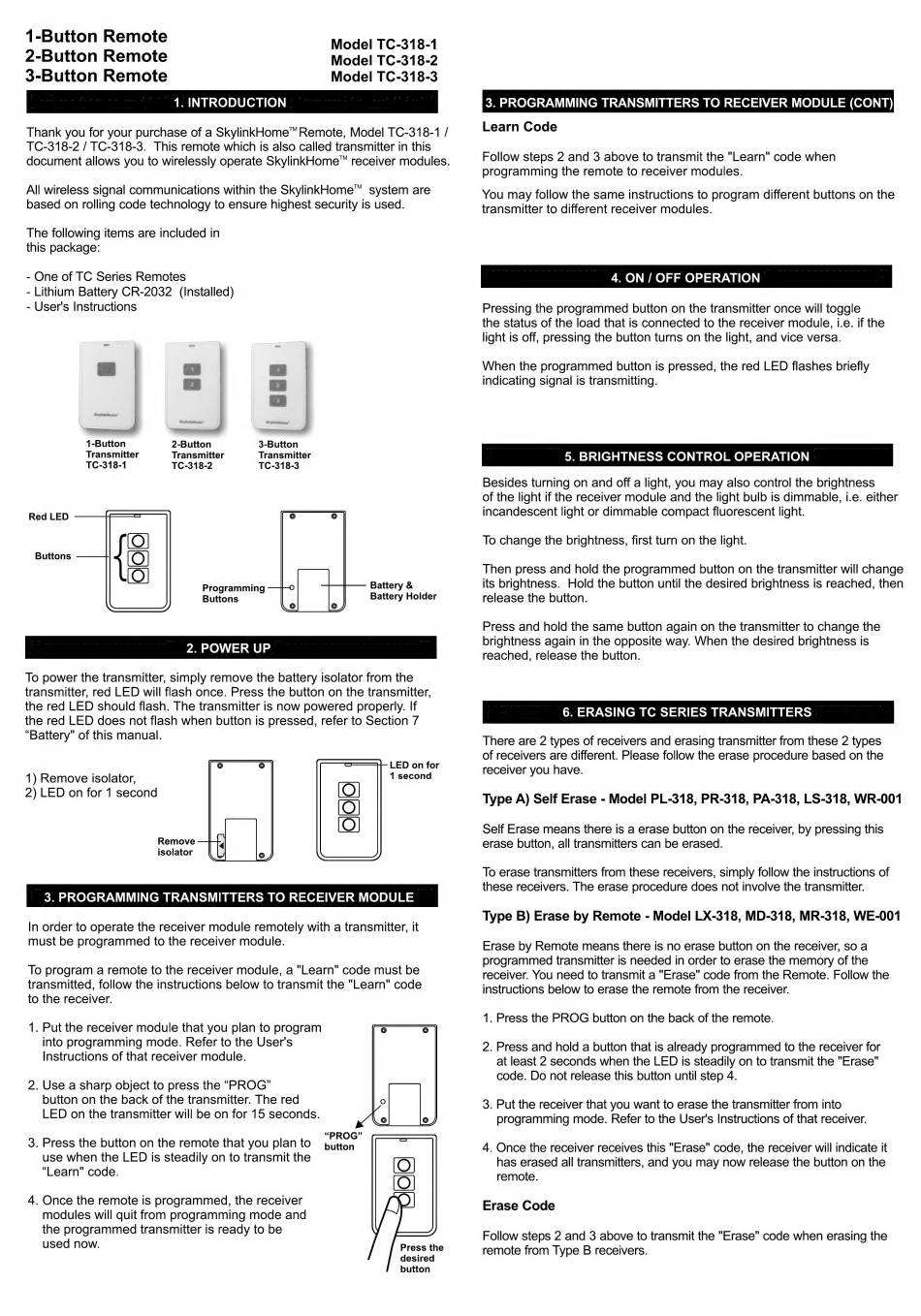

SkyLink TC-318-1 Quick Start Manual

1-Button Remote
2-Button Remote Model TC-318-2
3-Button Remote Model TC-318-3
1. INTRODUCTION
Thank you for your purchase of a SkylinkHome™ Remote, Model TC-318-1 /
TC-318-2 / TC-318-3. This remote which is also called transmitter in this

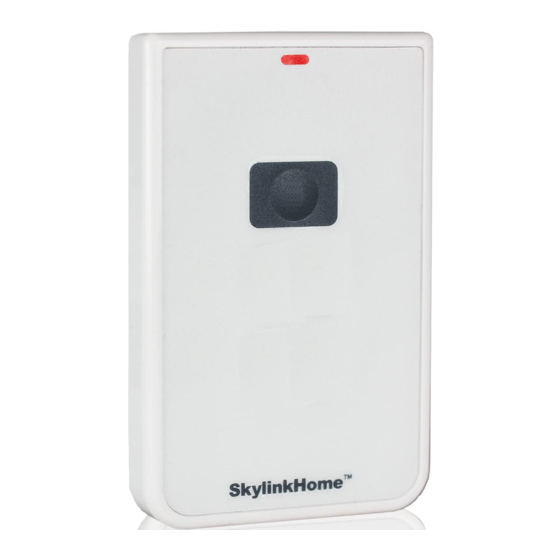

Model TC-318-1
document allows you to wirelessly operate SkylinkHome™ receiver modules.
All wireless signal communications within the SkylinkHome™ system are
based on rolling code technology to ensure highest security is used.
The following items are included in
this package:
- One of TC Series Remotes
- Lithium Battery CR-2032 (Installed)
- User's Instructions
@ ea ag
ae Ey
EJ
e saman
1-Button 2-Button 3-Button
Transmitter Transmitter Transmitter
TC-318-1 TC-318-2 TC-318-3
Red LED >
Buttons (OJ
Programming Battery &
Buttons Battery Holder
2. POWER UP
To power the transmitter, simply remove the battery isolator from the
transmitter, red LED will flash once. Press the button on the transmitter,
the red LED should flash. The transmitter is now powered properly. If
the red LED does not flash when button is pressed, refer to Section 7
"Battery" of this manual.
oA LED on for
1) Remove isolator, 1 second
2) LED on for 1 second
Remove
isolator
3. PROGRAMMING TRANSMITTERS TO RECEIVER MODULE
In order to operate the receiver module remotely with a transmitter, it
must be programmed to the receiver module.
To program a remote to the receiver module, a "Learn" code must be
transmitted, follow the instructions below to transmit the "Learn" code
to the receiver.
1. Put the receiver module that you plan to program
into programming mode. Refer to the User's
Instructions of that receiver module.
2. Use a sharp object to press the "PROG"
button on the back of the transmitter. The red
LED on the transmitter will be on for 15 seconds.
3. Press the button on the remote that you plan to ata
use when the LED is steadily on to transmit the
"Learn" code.
4. Once the remote is programmed, the receiver
modules will quit from programming mode and
the programmed transmitter is ready to be
used now.
Press the
desired
button
3. PROGRAMMING TRANSMITTERS TO RECEIVER MODULE (CONT)
Learn Code
Follow steps 2 and 3 above to transmit the "Learn" code when
programming the remote to receiver modules.
You may follow the same instructions to program different buttons on the
transmitter to different receiver modules.
4. ON / OFF OPERATION
Pressing the programmed button on the transmitter once will toggle
the status of the load that is connected to the receiver module, i.e. if the
light is off, pressing the button turns on the light, and vice versa.
When the programmed button is pressed, the red LED flashes briefly
indicating signal is transmitting.
5. BRIGHTNESS CONTROL OPERATION
Besides turning on and off a light, you may also control the brightness
of the light if the receiver module and the light bulb is dimmable, i.e. either
incandescent light or dimmable compact fluorescent light.
To change the brightness, first turn on the light.
Then press and hold the programmed button on the transmitter will change
its brightness. Hold the button until the desired brightness is reached, then
release the button.
Press and hold the same button again on the transmitter to change the
brightness again in the opposite way. When the desired brightness is
reached, release the button.
6. ERASING TC SERIES TRANSMITTERS
There are 2 types of receivers and erasing transmitter from these 2 types
of receivers are different. Please follow the erase procedure based on the
receiver you have.
Type A) Self Erase - Model PL-318, PR-318, PA-318, LS-318, WR-001
Self Erase means there is a erase button on the receiver, by pressing this
erase button, all transmitters can be erased.
To erase transmitters from these receivers, simply follow the instructions of
these receivers. The erase procedure does not involve the transmitter.
Type B) Erase by Remote - Model LX-318, MD-318, MR-318, WE-001
Erase by Remote means there is no erase button on the receiver, so a
programmed transmitter is needed in order to erase the memory of the
receiver. You need to transmit a "Erase" code from the Remote. Follow the
instructions below to erase the remote from the receiver.
1. Press the PROG button on the back of the remote.
NO
. Press and hold a button that is already programmed to the receiver for
at least 2 seconds when the LED is steadily on to transmit the "Erase"
code. Do not release this button until step 4.
OO
. Put the receiver that you want to erase the transmitter from into
programming mode. Refer to the User's Instructions of that receiver.
D>
. Once the receiver receives this "Erase" code, the receiver will indicate it
has erased all transmitters, and you may now release the button on the
remote.
Erase Code
Follow steps 2 and 3 above to transmit the "Erase" code when erasing the
remote from Type B receivers.
