SkyLink MK-318-1 Manual

3-Button Garage Door
Remote Control
1. INTRODUCTION
Thank you for your purchase of Skylink
318-2/MK-318-3.
The following items are included
in this package:
- One of MK-318 series Remotes
- Lithium Battery CR-2032 (Installed)
- User's Instructions
There are one or two or three buttons on transmitter, each button can be
programmed to control Skylink garage door receiver Smart Button
GB-318 or Skylink garage door opener directly.
Follow one or more instructions below in Section 2 to program transmitter
MK-318 to the receiver or receivers you want to control.
2a. PROGRAM TRANSMITTER TO RECEIVER GB-318
You need to do the programming in order to add the transmitter - remote
control to a receiver.
Refer to the receiver Smart Button
Smart Button GB-318 can learn up to 10 remote controls.
TM
To program the transmitter to the receiver, follow the instructions below:
1. Press the learn button on the side of the Smart Button
2. Once the learn button is pressed, the LED will
flash quickly. Release the learn button.
3. Within 30 seconds, press any one of the 3 buttons
on the transmitter that you want to program to the
receiver.
4. Once the remote control is programmed, the LED
will flash slowly, in the same way as it flashes
in standby mode.
5. You may now operate the garage door opener
with this new remote control.
6. To program this transmitter to control another
receiver, repeat process (1) to (4) to program
another button on the remote control.
2b. PROGRAM A TRANSMITTER TO THE SKYLINK
OPENER - EQ SERIES
You need to do the programming in order to add the transmitter to a
Skylink Garage Door Opener.
®
Skylink Garage Door Opener can learn up to 16 remote controls.
®
To program the transmitter to the Garage Door Receiver, follow the
instructions below:
1. Press the LEARN/SET button once on the garage door opener.
2. Once the LEARN/SET buttton is pressed, the LEARN LED will flash.
You may release the LEARN/SET button.
3. Within 30 seconds, press any one of the 3 buttons on the transmitter
that you want to program to the receiver.
4. Once the transmitter is programmed, the LEARN LED will turn off.
5. You may now operate the garage door opener with this new transmitter.
6. To program a transmitter to control another garage door opener,
repeat process (1) to (4) to program another button on the transmitter.

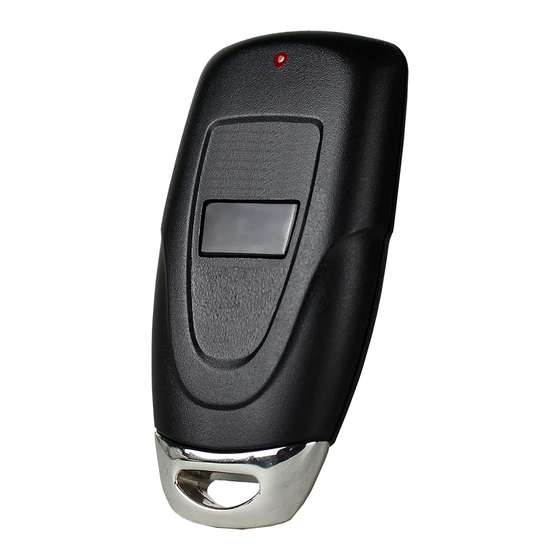

Model MK-318-1
Model MK-318-2
Model MK-318-3
®
Remote, Model MK-318-1/MK-
1-Button
2-Button
Transmiter
Transmiter
MK-318-1 MK-318-2
GB-318 user's instruction to set up the unit.
TM
TM
Smart Button
GB-318
GARAGE DOOR
®
Learn Button
2c. PROGRAM A TRANSMITTER TO THE SKYLINK
OPENER - IQ SERIES
To program the transmitter to the Skylink
please follow the user's instruction from the Garage Door Opener.
2d. PROGRM A TRANSMITTER TO THE IN-CAR REMOTE SYSTEM
3-Button
Procedure to program the In-Car remote to operate the Skylink Garage
Transmiter
Door Opener:
MK-318-3
1. Press and hold the Skylink transmitter (Rev 2.0) button, which you
are using for the Skylink Garage Door Opener, for 10 seconds.
TM
Release the button when the red LED starts flashing rapidly.
2. The Skylink transmitter LED will keep flashing for 20 seconds, you
have to program it to your In-Car remote before the LED stops
flashing. Any questions for the In-Car remote, please refer to the
vehicle owner's manual or contact the car manufacturer.
While carrying out the above programming, caution should be taken to
watch out if the garage door is operated by the Skylink transmitter or In-
Car remote.
It is recommended to erase the programmed In-Car remote system for
security purpose when upon the sale of the vehicle. To erase the
programmed In-Car remote system, please follow the vehicle owner's
GB-318.
manual of your In-Car remote system.
Antenna
LED
Q: What can I do if the door opener does not react after I press the button on
the transmitter ?
Learn
Button
A: - Ensure when the button on the transmitter is pressed, the red light on the
TM
transmitter comes on. Otherwise, check if the battery is inserted properly.
- Make sure the correct button on the transmitter is pressed.
- Ensure the wires that were previously connected to the wall mounted
door control are not loose.
- Ensure the transmitter has been programmed to the receiver. Refer
to section 2 for how to program a transmitter to the receiver.
Q: Why won't my In-Car remote learn the signal from the Skylink
transmitter?
A: If you have enabled the password feature in the Skylink transmitter,
please disable the password function before programming.
Q: Why won't my In-Car remote accept the signal from the Skylink
transmitter?
A: Try to keep the Skylink transmitter close to your In-Car remote while
programming.
Q: What do I do if the garage door opener does not operate after I
press the button on the In-Car remote?
A: Ensure that the In-Car remote has been learnt to the Skylink
transmitter. If your In-Car remote has more than one button, verify
which button has been learnt.
3 Volt lithium battery (CR 2032) (included).
It is time to change the battery when the red LED on the transmitter does
not turn on when either button is pressed.
IQ series Garage Door Opener,
®
3. TROUBLE SHOOTING
4. BATTERY
GARAGE DOOR
®
