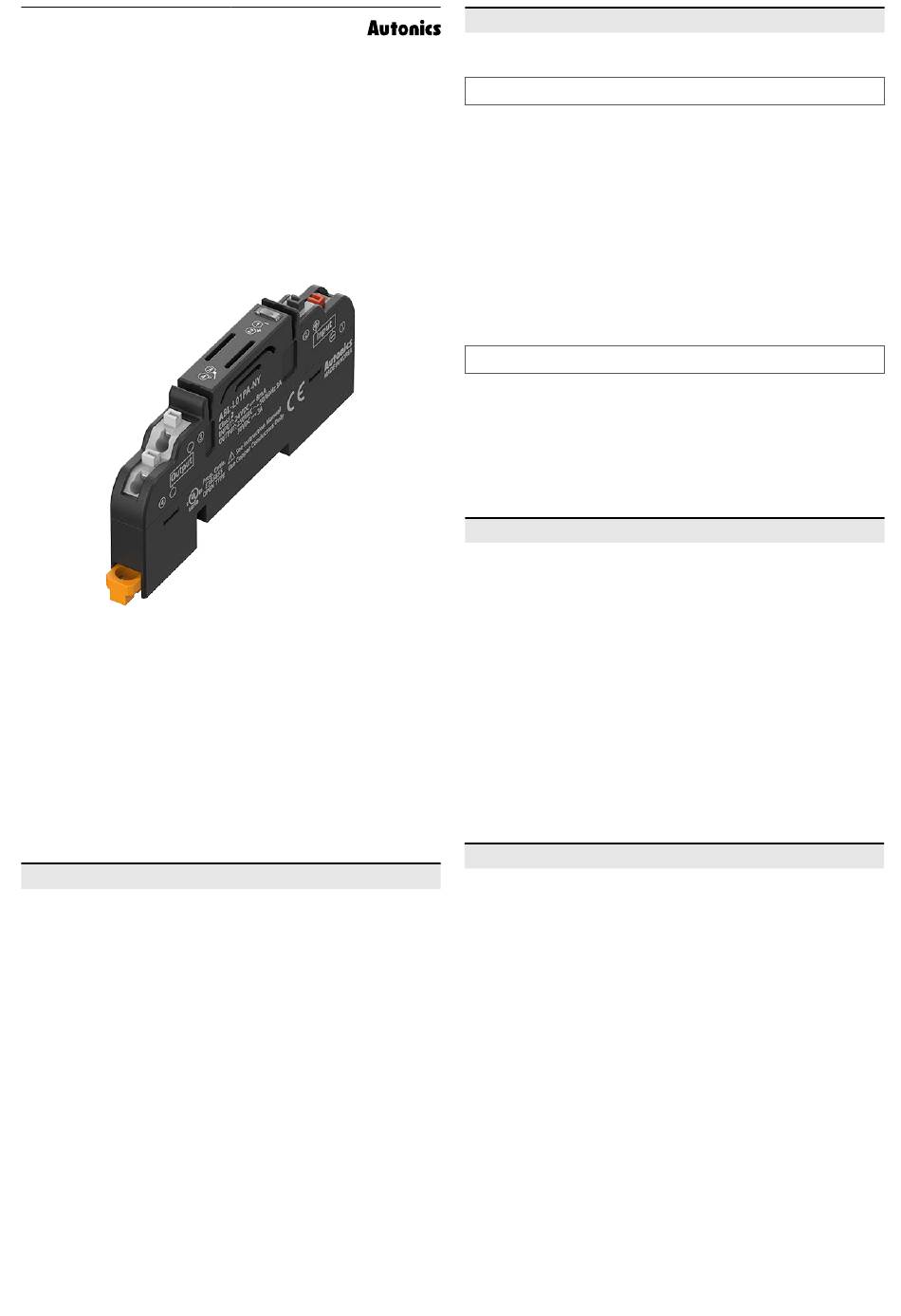

TCD210106AB
Screwless
Relay Terminal Block
(1-point)
ABL Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• Screwless push-in type connection for simple and easy connection
• Ideal for operating various loads using output signals from PLCs
• Switch between independent and load common output with jumper bar
• Operation status indicator (blue LED)
• DIN rail mount and screw mount installation
• Relay protection cover
※ Autonics CH/CO series I/O terminal block cables are recommended for best
performance
ᜢ ᜽ ᜨ ᜫ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss.(e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity may
be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not connect, repair, or inspect the unit, remove connector, or change
Relay while connected to a power source.
Failure to follow this instruction may result in fire or electric shock.
04. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
03. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use'. Otherwise, it may cause unexpected
accidents.
• Check the polarity of power or COMMON before connecting PLC or other controllers.
• Do not touch the unit immediately after the load power is supplied or cut.
It may cause burn by high temperature.
• 24VDCᜡ power supply should be insulated and limited voltage/current or Class 2,
SELV power supply device.
• Wire as short as possible and keep away from high voltage lines or power lines, to
prevent surge and inductive noise. Do not use near the equipment which generates
strong magnetic force or high frequency noise (transceiver, etc.). In case installing the
product near the equipment which generates strong surge (motor, welding machine,
etc.), use diode or varistor to remove surge.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II
Product Components
• Product × 4
• 9.0 mm pitch jumper bar (JB-9.0-04L) × 1
• Instruction manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ABL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Autonics ABL Series

  • Page 1 • Switch between independent and load common output with jumper bar • Operation status indicator (blue LED) • DIN rail mount and screw mount installation • Relay protection cover ※ Autonics CH/CO series I/O terminal block cables are recommended for best performance ᜢ ᜽ ᜨ ᜫ...
  • Page 2 -|Transparent Guide|- Sold Separately Dimensions • 9.0 mm pitch jumper bar (JB-9.0-04L) • Unit: mm, For the detailed drawings, follow the Autonics website. 38.5 Ordering Information This is only for reference, the actual product does not support all combinations. For selecting the specified model, follow the Autonics website.
  • Page 3 -|Transparent Guide|- Relay: APAN3124 [MATSUSHITA (Panasonic)] Wire Connection • is only for the varistor type. ■ Coil specifications • When mounting four products arrangement, Power/Load common can be done All values in the table are measured at 20 ℃ with a tolerance of ±10 %. by inserting a jumper bar.
  • Page 4 2-Ø1.1 It was written based on the data provided by each manufacturer, but there is room for change, so be sure to check the manufacturer’s data. 18, Bansong-ro 513Beon-gil, Haeundae-gu, Busan, Republic of Korea, 48002 www.autonics.com | +82-2-2048-1577 | sales@autonics.com...
