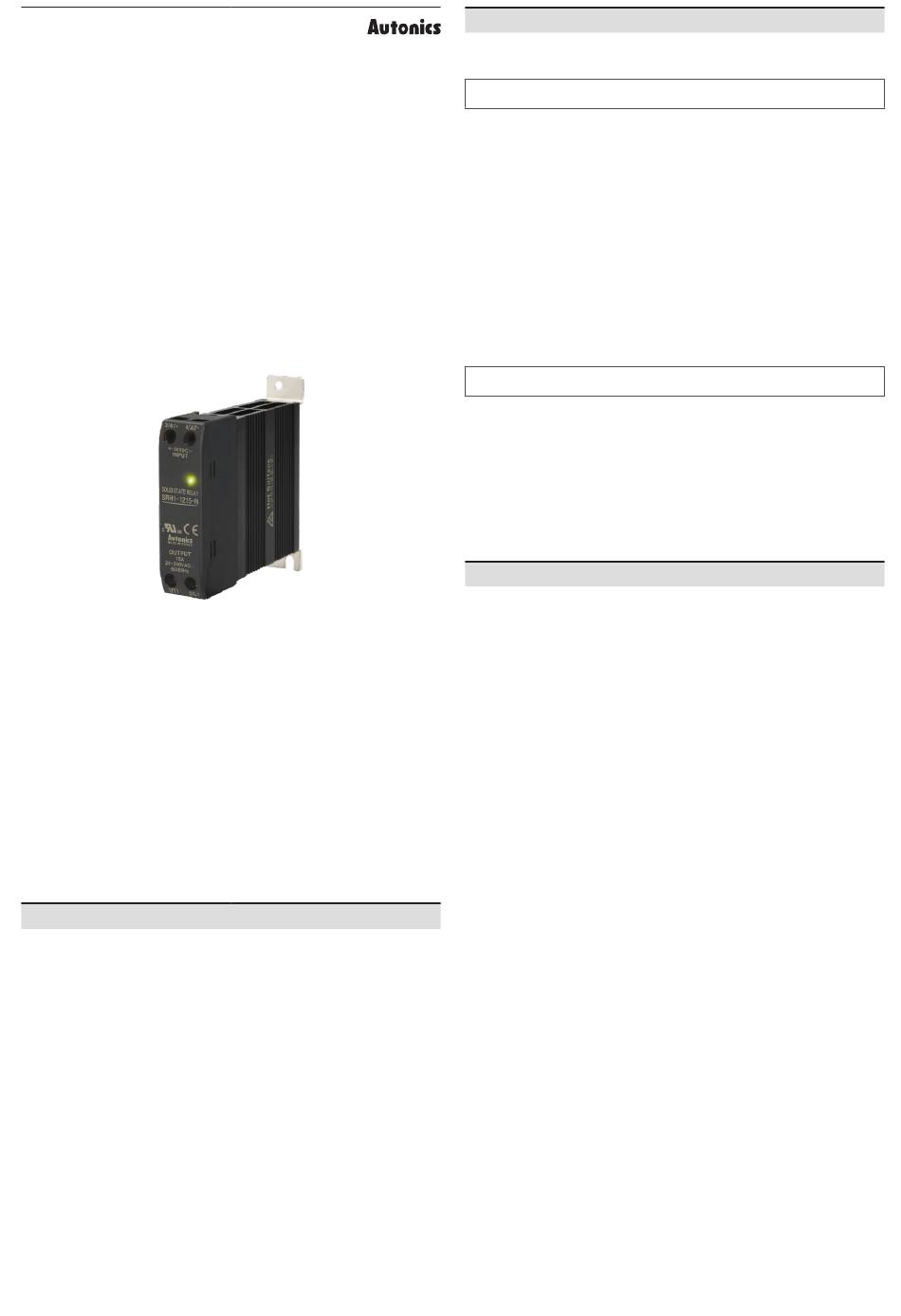

TCD210092AA
Single-phase Top/Bottom
Terminal SSR with
Integrated Heatsink
[Current Input Type]
SRH1 Series
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.

Features

• High heat dissipation efficiency with ceramic PCB and integrated heatsink
• Input Indicator (green)
• DIN rail mount or panel mount installation
• Phase control (power equality division/phase equality division), cycle control (fixed
cycle/variable cycle)
• Improved dielectric strength: 4,000 VACᜠ
ᜢ ᜧ ᜫ

Safety Considerations

• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss.(e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install the unit on DIN rail or panel to use.
Failure to follow this instruction may result in fire or electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire or electric shock.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
03. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
04. Since leakage current still flows right after turning off the power or in the
output OFF status, do not touch the load terminal.
Failure to follow this instruction may result in electric shock.
Cautions during Use
• Follow instructions in 'Cautions during Use' .
Otherwise, it may cause unexpected accidents.
• Install the unit in the well ventilated place.
• Ground to the heatsink, panel, or DIN rail. Failure to follow this instruction may result
in electric shock.
• While supplying power to the load or right after turning off the power of the load, do
not touch the body and heat sink. Failure to follow this instruction may result in burn
due to high temperature of the surface.
• In order to protect the product from the short-circuit current of the load, use rapid fuse
of which I
t is under the 1/2 of SSR I
2
of same specification with the used rapid fuse.
• Install dummy resistance in parallel with the load, to keep the sum of current flowing
in the load and dummy resistance being over SSR minimum load current.
• Do not use near the equipment which generates strong magnetic force or high
frequency noise.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category III
t. When short-circuited, replace the fuse to those
2
