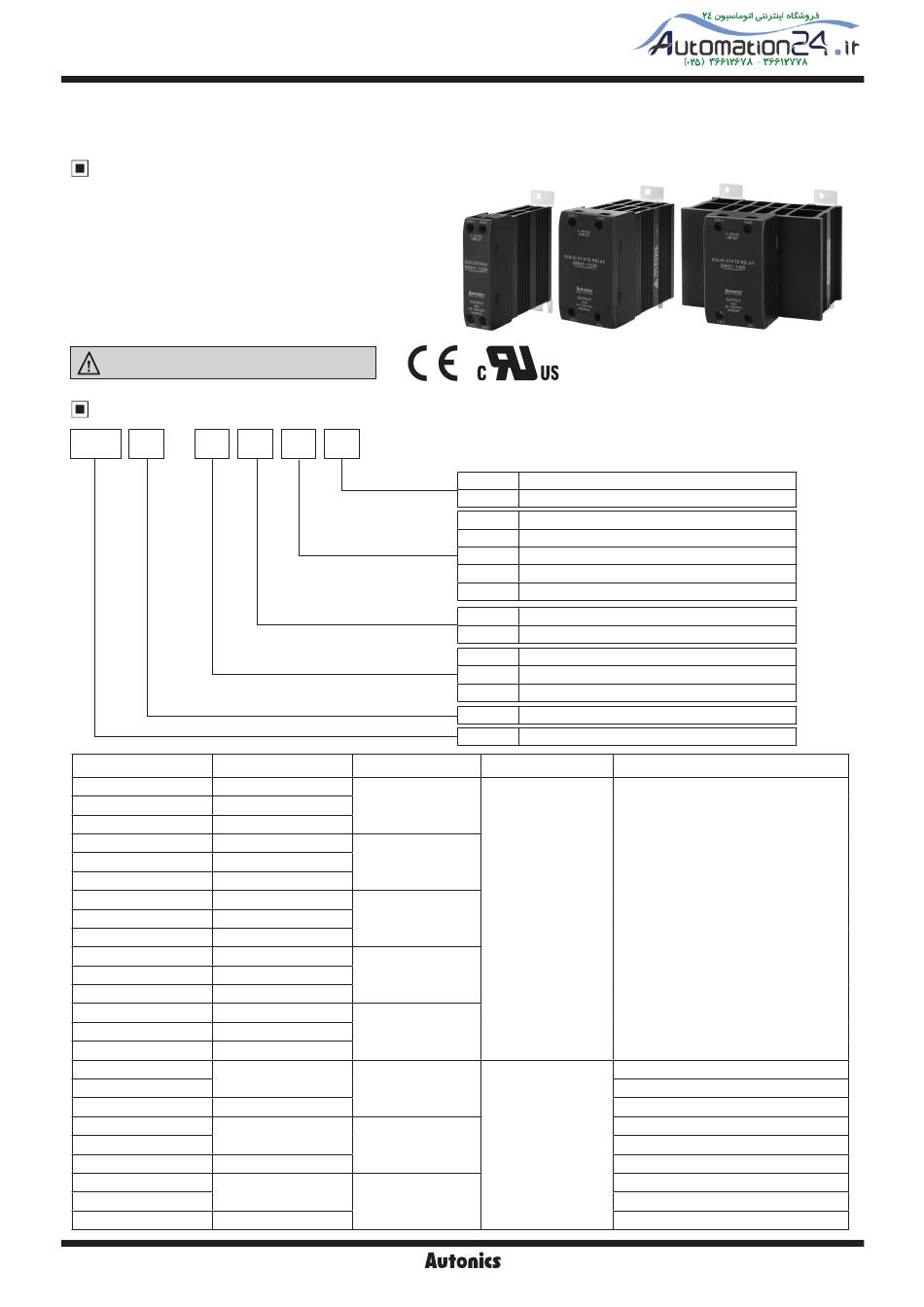

Autonics SRH1 Series Quick Start Manual

SRH1 Series
Single Phase, Integrated Heatsink Type SSR
Features
● Superior dielectric strength: 4,000VAC
● Improved reliability by maximizing heat
protection efficiency with heatsink integrated
design and ceramic board
● Various mounting methods (DIN rail, screw fixing)
● Supports Zero cross turn-on/ Random turn-on type
● Checks input status by Input LED (green)
Please read "Caution for your safety" in operation
manual before using.
Ordering Information
SRH 1 - 1
Input voltage (rated)
Control phase
Item
Model Input voltage
SRH1-1215 4-30VDC
SRH1-2215 24VAC
SRH1-4215 90-240VAC
SRH1-1220 4-30VDC
SRH1-2220 24VAC
SRH1-4220 90-240VAC
SRH1-1230 4-30VDC
SRH1-2230 24VAC
SRH1-4230 90-240VAC
SRH1-1240 4-30VDC
SRH1-2240 24VAC
SRH1-4240 90-240VAC
SRH1-1260 4-30VDC
SRH1-2260 24VAC
SRH1-4260 90-240VAC
SRH1-1420
4-30VDC
SRH1-1420R
SRH1-2420 24VAC
SRH1-1430
4-30VDC
SRH1-1430R
SRH1-2430 24VAC
SRH1-1460
4-30VDC
SRH1-1460R
SRH1-2460 24VAC
4 60 R
Function
Rated load current
(resistive load)
Load voltage (rated)
Rated load current
15A
20A
30A
40A
60A
20A
30A
60A
No Mark Zero cross turn-on
R Random turn-on
15 15A
20 20A
30 30A
40 40A
60 60A
2 24-240VAC
4 48-480VAC
1 4-30VDC
2 24VAC
4 90-240VAC
1 Single phase
SRH Solid State Relay (Integrated heat sink type)
Load voltage Zero cross turn-on/Random turn-on
24-240VAC Zero cross turn-on
Zero cross turn-on
Random turn-on
Zero cross turn-on
Zero cross turn-on
48-480VAC Random turn-on
Zero cross turn-on
Zero cross turn-on
Random turn-on
Zero cross turn-on
I-13
