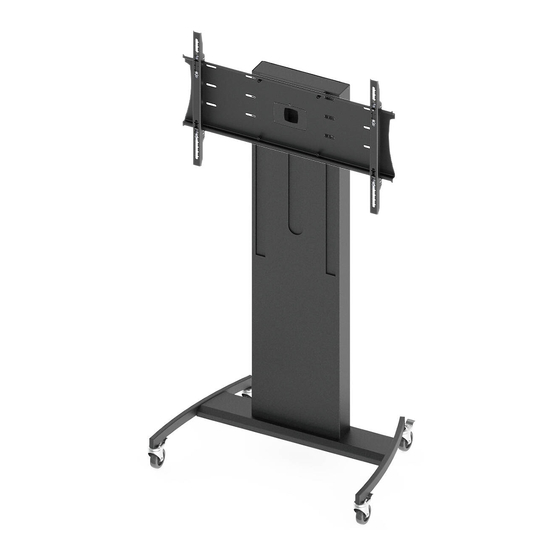

NST2PL
Screen Size: 70-110"
Guide Max. Weight: 150kg
Revised 26/04/24
*Please check model specific details before installing*
WARNING
Please carefully inspect the product before assembling. If you notice any apparent damage, call your
carrier claims agent and do not continue the installation until it has been reviewed. Please watch for pinch
points. Do not put your fingers between moveable parts. Do not tamper with or disassemble any spring
loaded parts. Before installing, make sure that the supporting surface will support five times the combined
load of the solution and the hardware. Never exceed the maximum load capacity. Please also layout all
components to ensure that you have all of the required parts before proceeding (see BOM list on following
page). Use of this product for anything other than its specified use may result in failure or personal
injury. This product is intended for indoor use only. We recommend using a qualified trades person for
installation. Use an assistant or lifting equipment to lift and position products.
For support, please call: +44 (0)1865 767676 or email: sales@unicol.com
