01865 767676
sales@unicol.com
www.unicol.com

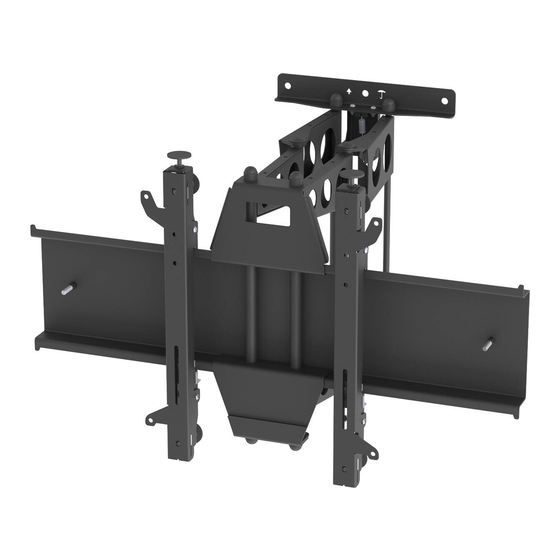

PLA4
Screen Size: 71 - 110"
Guide Max. Weight: 130kg
Revised 26/04/24
*Please check model specific details before installing*
WARNING
Please carefully inspect the product before assembling. If you notice any apparent damage, call your
carrier claims agent and do not continue the installation until it has been reviewed. Please watch for pinch
points. Do not put your fingers between moveable parts. Do not tamper with or disassemble any spring
loaded parts. Before installing, make sure that the supporting surface will support five times the combined
load of the solution and the hardware. Never exceed the maximum load capacity. Please also layout all
components to ensure that you have all of the required parts before proceeding (see BOM list on following
page). Use of this product for anything other than its specified use may result in failure or personal
injury. This product is intended for indoor use only. We recommend using a qualified trades person for
installation. Use an assistant or lifting equipment to lift and position products.
For support, please call: +44 (0)1865 767676 or email: sales@unicol.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Unicol PLA4
Summary of Contents for Unicol PLA4
- Page 1 Use of this product for anything other than its specified use may result in failure or personal injury. This product is intended for indoor use only. We recommend using a qualified trades person for installation. Use an assistant or lifting equipment to lift and position products. For support, please call: +44 (0)1865 767676 or email: sales@unicol.com...
- Page 2 01865 767676 sales@unicol.com www.unicol.com TOOLS REQUIRED INSTALLERS REQUIRED Pozi Head Screwdriver COMPONENTS DESCRIPTION PLA4 Bracket Adjustable Mount Arms Revised 26/04/24...
- Page 3 01865 767676 sales@unicol.com www.unicol.com STEP 2 STEP 1 Using the identified mounting slots, fix the mount Utilising the fixing pack provided with your mount, to the wall. Please note, the top of the mount can be attach the arms to the back of your screen.
- Page 4 01865 767676 sales@unicol.com www.unicol.com STEP 5 STEP 6 Centre the screen horizontally by sliding from side Once all adjustments are done, push the screen to side until you are happy with the position. Lock back into position until the latch clicks into place.
