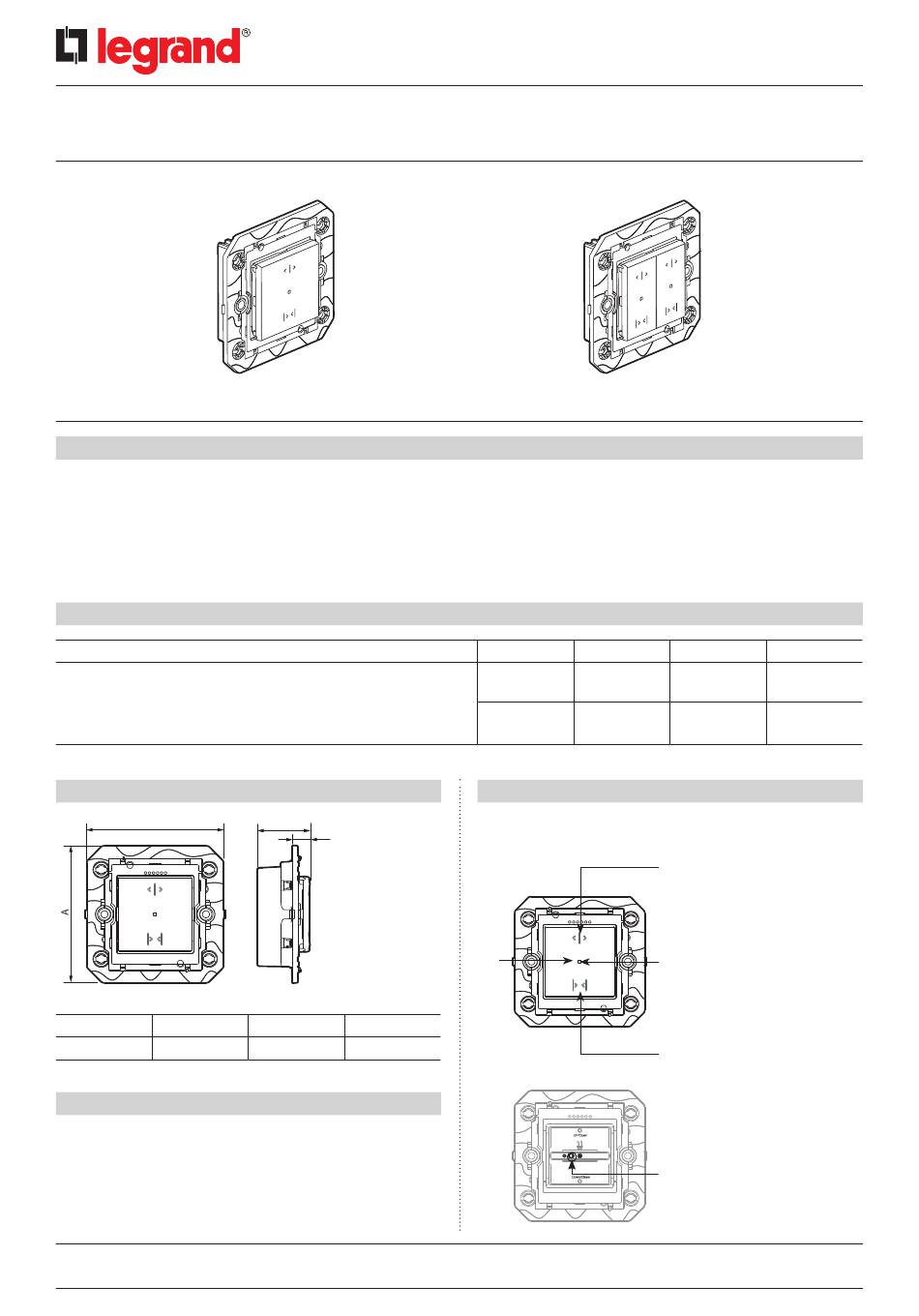

LEGRAND Arteor 5 746 29 Quick Start Manual

Arteor with Netatmo - British Standard
TM

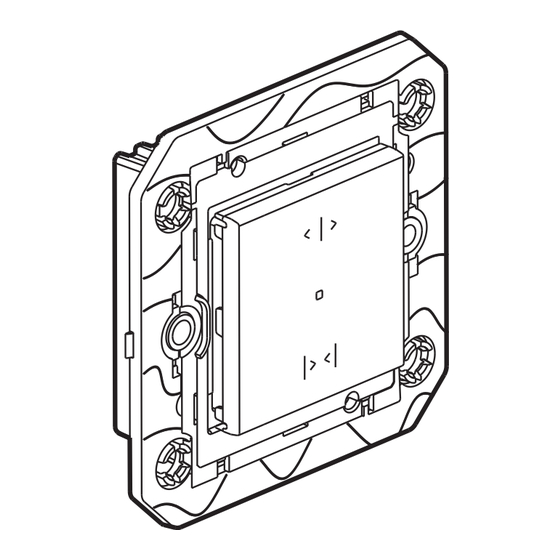

Connected curtain/roller blind switches
5 746 29/30/31/32
1. USE
For local or remote control of a roller shutter/curtains.
Can be combined with one or more wireless roller shutter controls/curtains.
Can be installed in place of an existing roller shutter switch in a flush-mounting box 25 mm deep (minimum).
The Arteor with Netatmo solution is compatible with roller shutters with a mechanical or electronical stop, controlled by a standard wired switch for
roller shutters.
Caution: Must be connected to the neutral.
Not compatible with radio-controlled roller shutter motors.
2. RANGE
Connected curtain/roller blind switches with neutral.
Mechanisms supplied with rocker plates and support frames.
Equipped with an LED indicator.
Hidden reset button used to return to factory settings.
3. DIMENSIONS (mm)
B
A B
81.5 81.5
4. CONNECTION
Terminal type : with screws
Terminal capacity: 2 x 1.5 mm - 2 x 2.5 mm
2
Stripping length: 8 mm
Technical data sheet: F03682EN/01
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
Description
C
D
C D
31 10.5
- 1 x 4 mm
2 2
Updated: 01/09/2023
Cat. Nos: 5 746 29/30/31/32/33/34/35/36
5 746 33/34/35/36
White Magnesium
5 746 29 5 746 30
1-gang 1-gang
5 746 33 5 746 34
2-gang 2-gang
5. OPERATION
Integrated time delay for up/down inversion: 500 ms
1-gang: 5 746 29/30/31/32
STOP
Soft Alu Champagne
5 746 31 5 746 32
1-gang 1-gang
5 746 35 5 746 36
2-gang 2-gang
Up when pressed at the top:
- short press raises to the top
- long press raises until released
LED indicator:
- useful during installation
- locator function can be activated frome the Home
+ Control app
Down when pressed at the bottom:
- short press lowers to the bottom
- long press lowers until released
RESET button
used to return to factory settings
Created: 31/03/2022
1/2
