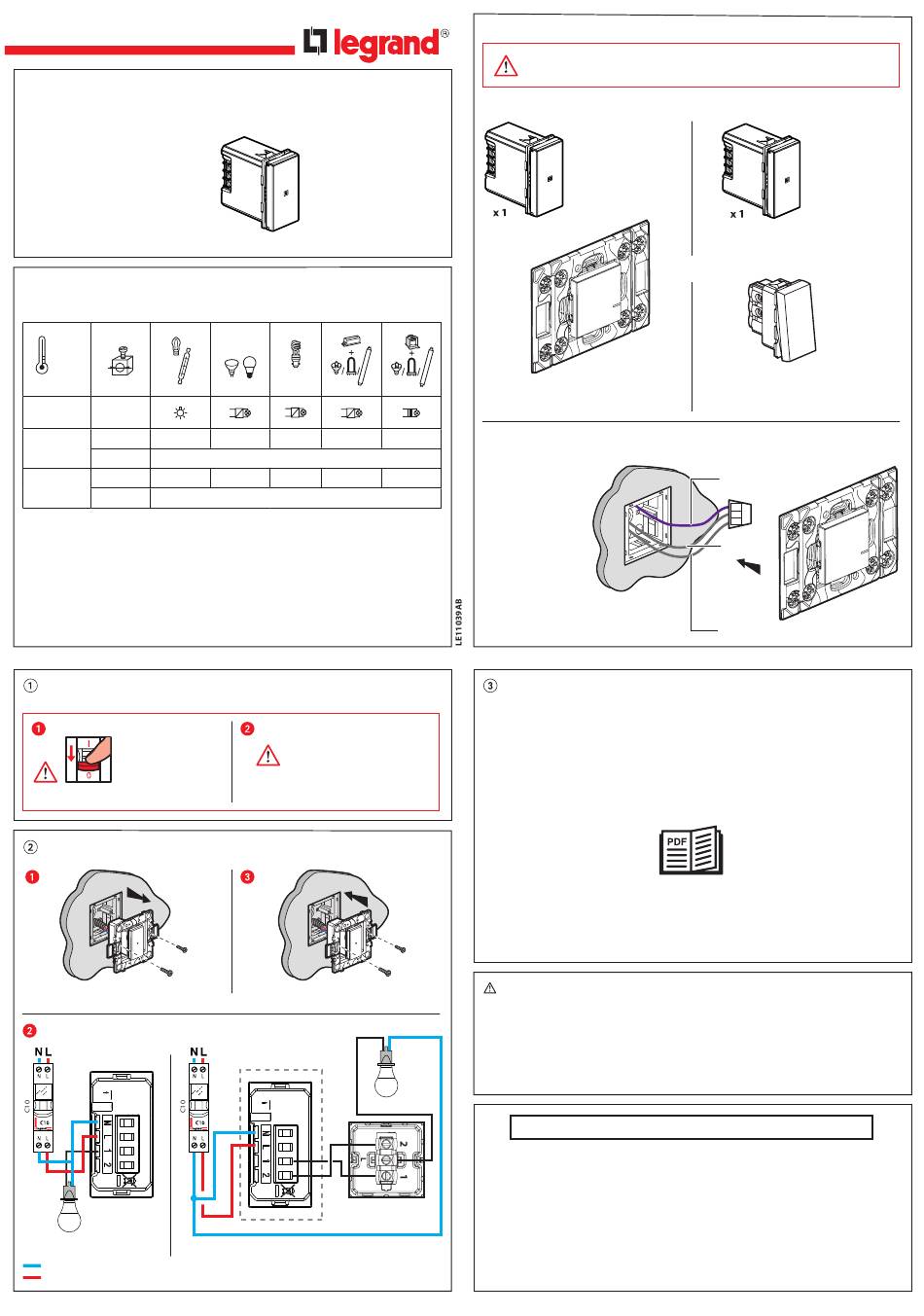

LEGRAND 5 742 01 Quick Start Manual

Connected switch with neutral
5 742 01/11/20/29
This product is a connected accessory which requires you to buy and install the Arteor
with Netatmo connected starter pack first.
Pack contents
Connected switch
Characteristics
In default operating mode (on/off), this switch works with the following bulbs:
+ 45°C
+ 5° C
100-240 VAC
1 x 2.5 mm
2
50/60 Hz
Max. 500 W
240 VAC
Min.
Max. 250 W
100 VAC
Min.
( * ) Or 10 lamps max. For a good light comfort, it is recommended to use bulbs of the
same type and the same manufacturer.
( ** ) Use only with transformers designed to work with electronic switches.
Take account of transformer losses when calculating power.
Transformers must be loaded at more than 60% of their power.
This product is designed to operate only with light loads. Any other type of
load (relays, valves, etc.) is not permitted as this may cause malfunction or
damage to the product and/or load.
Necessary safety precautions
Switch OFF the power
at the main circuit
breaker
OFF
Install the connected switch
Remove the existing switch
Wire the connected switch
1 way
7 mm
N (neutral) = blue
L (live) = any except blue and green/yellow
LED
( ** )
( * )
100 W 100 W 250 VA
4 W
( * )
50 W 50 W 125 VA
8 W
1
Make sure that the power
is OFF before continuing
with the installation.
2 way
7 mm
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
3
Before you start: wiring precautions
Do not use: two connected switches to control the same lighting point.
If you plan to install two-way light switches, read the following precautions:
Connected
switch
AND
Wireless controls for all control points
(not included in this pack)
Tip if replacing a two-way switch using a wireless control:
250 VA
old flush-mounted switch replaced by the wireless control.
125 VA
Use a connector
to connect live wire
and traveller wires
a1 and 2.
To add a connected product to your connected installation, you should
follow the instructions:
- in the Legrand Home + Control application (Settings/Add a new product section)
- or consult the user manual on legrand.com
87002 LIMOGES CEDEX FRANCE • www.legrand.com
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualified electrician.
Incorrect installation and/or incorrect use can lead to risk of electric shock or fire.
Before carrying out the installation, read the instructions and take account of the product's specific
mounting location.
Do not open up, dismantle, alter or modify the device except where specifically required to do so by the
instructions. All Legrand products must be opened and repaired exclusively by personnel trained and
approved by Legrand. Any unauthorised opening or repair completely cancels all liavilities and the rights
to replacement and guarantees. Use only Legrand brand accessories.
SIMPLIFIED EU DECLARATION OF CONFORMITY
declares that the radio-electric equipment referred to in these instructions
The full text of the EU declaration of conformity
www.legrand.com/ecatalogue
OR
x 1
or several
Mechanical 2-way switch
(not included in this pack)
Live
Traveller 1
Traveller 2
2
www.legrand.com/reference/574211
