SMART REEF Skimmer Mate Manual

Skimmer
Manual
Mate

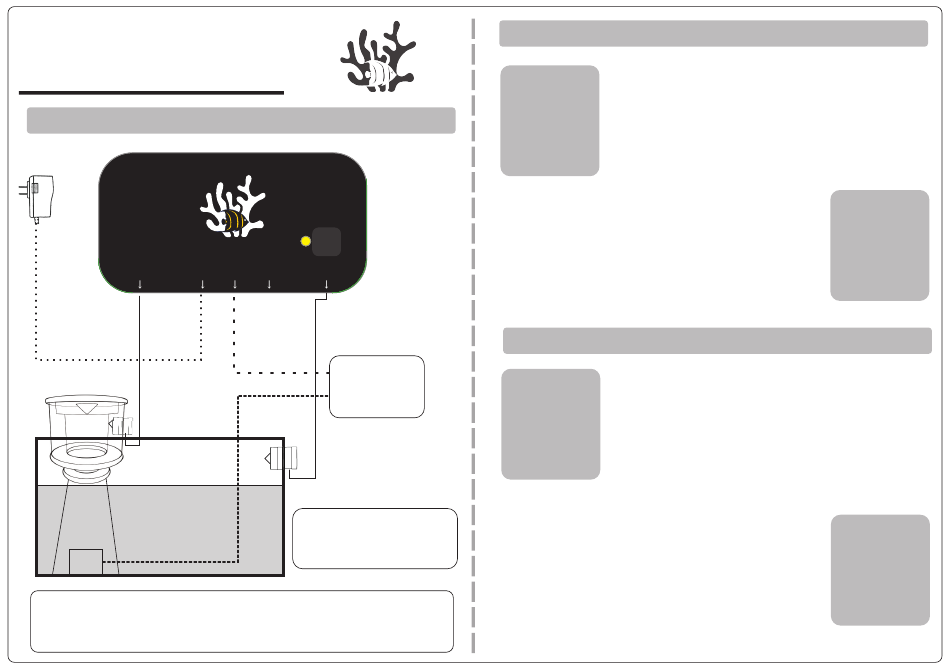

System connection
Power
supply of
Smartreefs
skimmer
Level A Power
Main probe
Attention
· This product can only be used with protein skimmers powered by DC power.
· The second probe needs to be purchased separately
Ver.1.0
SMART REEF
Switch
Pump linkage Level B
DC-IN
DC-OUT
Controller of skimmer
Secondar y probe
(Optional)
Attention
The probe module located outside the
tank can only prevent splashing, please
do not put it in the water!
Set-up Directions 使用说明
Red light: The main probe senses abnormal water level
Red light flashes: power-on delayed start or delayed self-recover y
Indicator light
Green light: normal operation
Green light flashes: After manual pause, it is in the process
of self-recover y
1
Alternating red and green: The system is suspended and
cannot be self-recovered.
Red and green at the same time: the second probe senses
abnormal water level
1. Connect the system correctly according to the diagram.
2. After power on, there will be a delay of 1 minute to supply power
to the skimmer.
3. The red light flashes during the delay period, you can click the
switch button to make the skimmer run immediately.
4. When the main probe senses an abnormal water level, the system
will automatically cut off the power supply of the skimmer.
Function Description
Delay start: According to the setting, the skimmer will be
turned on after a specified time delay (default 1 minute)
Delay start
after power-on.
Pause and self-recover y: According to the setting, after
1
the user cuts off the power of the protein skimmer by
clicking the button, it will delay the specified time
(16 minutes by default) before turning on the power
of the protein skimmer.
Alarm control for abnormal water level: cut off the power
of the protein separator when the collection cup is full,
at this time the red light will be on and the buzzer will alarm.
Delayed self-recover y: After the water level of the collection
cup returns to normal, the system will restore the power
supply of the protein skimmer in 1 minute.
Multi-point monitoring: The auxiliar y probe (optional) will
start the buzzer alarm after detecting the abnormal water
level and cut off the power of the protein separator to
prevent the sewage from overflowing from the collection cup.
Steps for usage
2
Skimmer control
2
