SMART REEF Smart A.T.O. TINY II Manual

Smart A.T.O.
Manual
（TINYⅡ）

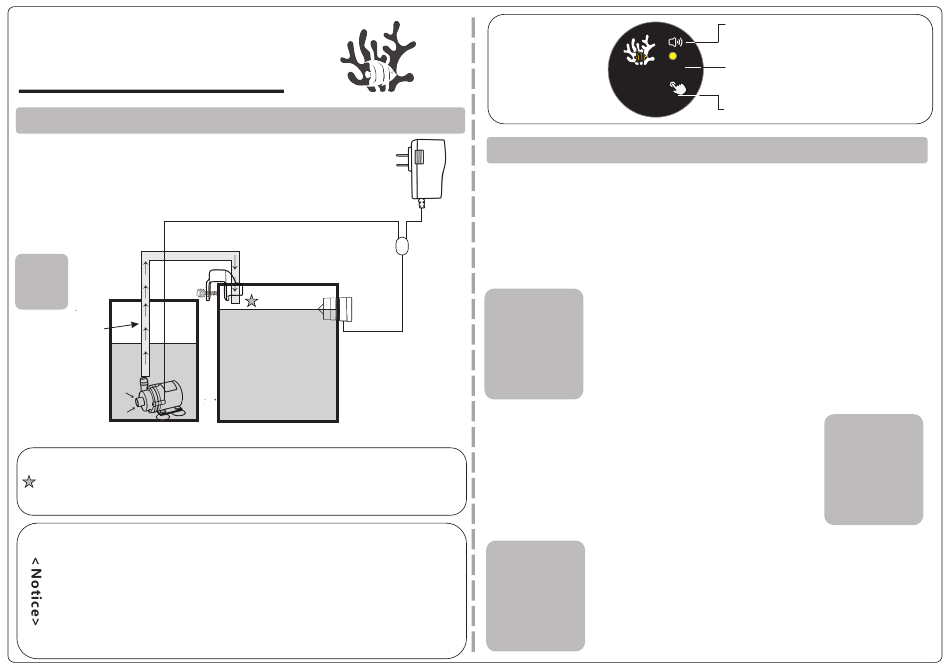

System connection
· When installing, the glass must be cleaned first,
dirty glass will make the probe sense abnormal! !
← ←
Pipe
Prevent
rack
siphon
***
If a siphon occurs,
punch holes in
this position.
DC
pump
→
Bucket
The outlet pipe must not be lower than the water
Warning
surface, otherwise the water will flow back from
the fish tank back to the bucket! !
** The water outlet should not be aligned with the probe.
*** If you unplug the power supply and still add water, it is
siphoning. You need to open a hole with a diameter of 1mm
on the water pipe. After opening the hole, water will flow
out of the hole and flow back into the bucket when the pump
is running,This is normal.. After the pump stops working,
the small holes will draw in air and destroy the siphon.
Ver.1.1
SMART REEF
←
** Magnetic
controller
Probe
Fish tank
The function of
the controller
Set-up Directions
· If you feel that the probe has weak magnetism and cannot be
fixed during installation, it may be caused by the device's wire
exerting a large downward pull. Please use the complimentar y
Power
supply
wire clip to assist in fixing the wire so that it will not cause
excessive pull on the probe.
· The wire has no directivity and can be installed in any direction.
1、Install the probe with a water level lower
Step
than the probe or in the middle of the probe.
2、After turning on the power, press and hold
1
the multi-function button for 3 seconds. You
can let go when you hear the sound of "DiDiDi",
and the initialization is successful.
3、The system will automatically add water to
the middle or high place of the probe.
4、Let the water level below the the probe to
test whether the system will automatically
add water back .
· The internal and external probes must be aligned
Notice
accurately during the first installation, other wise
it is easy to misjudge the water level status. For
3
example, the indicator light will keep on when
there is no water.) At this time, just align the internal
and external modules carefully to return to normal.
Buzzer
Water shortage, or running error (Red)
High level sensing point (Blue)
low level sensing point
Level
Smartreefs
+ Water shortage
TINY
Pause (White flashing )
Pause
Multi-function button
(Green)
(Lights off )
Step
2
