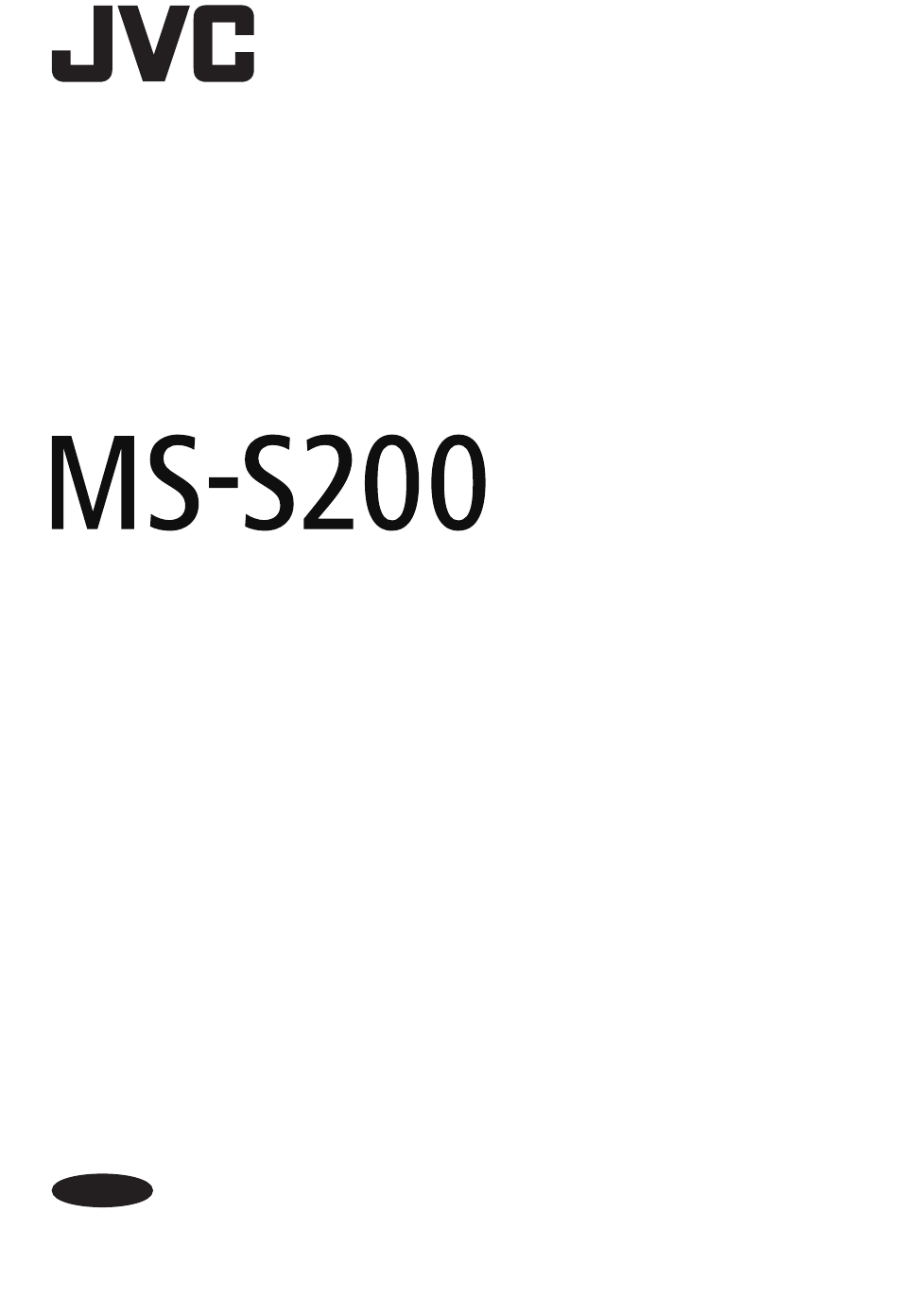

21.3-inch (54 cm) Monochrome LCD Monitor
Operation Manual
Model: MS-S200Bx0UA
MS-S200Bx0EA
Important
Please read this "Operation Manual" carefully before use.
Please make sure to read the "Safety precautions" first and keep this "Operation
Manual" in a safe and easily accessible place for future reference.
B5A-3734-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-S200 and is the answer not in the manual?

Questions and answers

Related Manuals for JVC MS-S200

Summary of Contents for JVC MS-S200

  • Page 1 21.3-inch (54 cm) Monochrome LCD Monitor Operation Manual Model: MS-S200Bx0UA MS-S200Bx0EA Important Please read this “Operation Manual” carefully before use. Please make sure to read the “Safety precautions” first and keep this “Operation Manual” in a safe and easily accessible place for future reference. B5A-3734-20...
  • Page 2 Attention! The monitor screen can be rotated horizontally or vertically at 90 degrees. The monitor screen is rotated horizontally by default, rotate it according to your usage. Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved. License to copy and use this software is granted provided that it is identified as the “RSA Data Security, Inc.

  • Page 3: Table Of Contents

    Contents Before use ............................4 Safety precautions ........................15 Features ............................20 Names and functions of parts .....................22 Reference ............................24 Operating principle ........................24 Cleaning the monitor .......................25 Connector pin assignment ....................26 Technical specification ......................27 After-sales service ........................30 Disposal of electrical and electronic equipment ............31 - 3 -...

  • Page 4: Before Use

    Indication for use MS-S200 is intended to be used in displaying and viewing medical images for diagnosis by trained medical practitioners or certified personnel. It is not meant to be used in digital mammography.
  • Page 5 Also, any unauthorized changes or modifications to this monitor would void the user's authority to operate this device. Supplier's Declaration of Conformity Trade Name: JVC Products: LCD Monitor Model Name: MS-S200Bx0UA, MS-S200Bx0EA...
  • Page 6 Warning ● This apparatus must be earthed because of Class I equipment. ● This apparatus is not a patient contact equipment. ● When using at 240 V in the United States, supply must be from center-tapped, 240 V, single phase circuit. ●...
  • Page 7 Guidance and manufacturer’s declaration – electromagnetic emissions The model MS-S200 is intended for use in the electromagnetic environment specified below. The customer or the user of the model MS-S200 should assure that it is used in such an environment. Electromagnetic environment...
  • Page 8 The model MS-S200 is intended for use in the electromagnetic immunity environment (Home healthcare environment defined in IEC 60601-1-2) specified below. The customer or the user of the model MS-S200 should assure that it is used in such an environment.
  • Page 9 The model MS-S200 is intended for use in the electromagnetic immunity environment (Home healthcare environment defined in IEC 60601-1-2) specified below. The customer or the user of the model MS-S200 should assure that it is used in such an environment.
  • Page 10 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model MS-S200 is used exceeds the applicable RF compliance level above, the model MS-S200 should be observed to verify normal operation.
  • Page 11 RF communications equipment and the model MS-S200 The model MS-S200 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model MS-S200 can help prevent...
  • Page 12 The model MS-S200 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model MS-S200 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model MS-S200 as recommended below, according to the maximum output power of the communications equipment.
  • Page 13 Label Please read the label containing warnings and cautions carefully before use. Important - 13 -...
  • Page 14 Explanation of symbols These following symbols and labels indicate meanings as below. Caution Mark Indicates the monitor is approved according to the UL & c-UL regulations Indicates complies to the essential requirements of the European Medical Device Regulation (EU) 2017/745 (“MDR”) Indicates this device complies with the requirements of The Medical Devices Regulations 2002 (SI 2002 No 618, as amended)

  • Page 15: Safety Precautions

    Safety precautions This manual contains important warnings and information to prevent potential personal injury and property damage. The symbols and signs used in this manual and their meanings are as follows. Symbols Indicates a hazard which, if not avoided, could result in death or serious injury.
  • Page 16 Warning Do not disassemble, repair, or alter the monitor. It could cause fire, electric shock, or injury. Servicing of such a monitor may be refused. Or a fee may be charged even within the warranty period. Ask your dealer for repairs. Do not continue using the monitor when failure or abnormality is found.
  • Page 17 The monitor must be grounded. Failure to do so could cause electric shock. When using a 2P plug, ground the monitor before plugging into a wall outlet. To remove the grounding cable, unplug the monitor first. Follow the instructions below in handling the power plug. •...
  • Page 18 Do not place the monitor on its back or use in a place with little ventilation. Heat could build up and damage the cabinet and/or the inner parts. It could result in shortening of life, overheat, and/or fire. Rest your eyes for 10 to 15 minutes per hour. Failure to do so could cause eyestrain.
  • Page 19 Do not set maximum luminance or closer to it when using the monitor in a dim room below 100 lx. It could cause eyestrain. We recommend the factory default. Setting it too low could makes it hard to see the image. Do not press the LCD luminance sensor or subject it to impact.

  • Page 20: Features

    Also, the orientation of OSD and images on the screen will be automatically adjusted. ● Switchable display mode MS-S200 supports 6MsP-ISD and 2M-nomal modes. The display mode can be easily switched by OSD controls or optional utility software, “QA Medivisor Agent”. ● 1276-step simultaneously displayable grayscale Up to 1276 shades of gray are simultaneously displayable using a viewer.
  • Page 21 ● Auto text mode function Automatically decreases luminance of the text window (white) when it is shown to help reduce eyestrain. ● Human presence sensor Activates “Human presence sensor” function, when leaving your seat, states of the monitor automatically switches into “Stand-by”. It leads to reduce power consumption.

  • Page 22: Names And Functions Of Parts

    Names and functions of parts ① Human sensor When leaving your seat, the status of the monitor automatically switches into “Stand-by” due to “Human Sensor”. ② Operation button Displaying Menu on OSD or configuration can be available by these four buttons. ③...
  • Page 23 ⑪ DOWN: USB downstream ports (×2). A USB device with a maximum current consumption of 500 mA per port can be connected to each port. Multiple MS-S200 monitors, connected in a daisy chain, can be calibrated in succession by connecting the supplied USB cable between here and the next monitor’s UP.

  • Page 24: Reference

    Reference Power save function The monitor enters into power save mode after idling for a certain period of time to reduce power consumption. Refer to the workstation instruction manual on how to set it. Digital input This monitor supports digital signal. It is normal for noise to occur during startup, shutdown, and/or at switching resolutions.

  • Page 25: Cleaning The Monitor

    Cleaning the monitor How to care for the cabinet and screen ● When cleaning the monitor, remove the Power cord from the monitor and the wall outlet for your safety. ● Wipe off dust on the cabinet with a soft cloth, and use a cloth lightly moistened with a mild detergent, ethanol or isopropyl alcohol to remove grease.

  • Page 26: Connector Pin Assignment

    Connector pin assignment DVI 24-pin (female) connector for DVI signals Pin # Signal Pin # Signal TMDS Data 2- TMDS Data 2+ +5V Power TMDS Data 2 Shield Hot Plug Detect DVI-D TMDS Data 0- DDC Clock TMDS Data 0+ DDC Data TMDS Data 0 Shield TMDS Data 1-...

  • Page 27: Technical Specification

    Technical specification Item MS-S200Bx0UA, MS-S200Bx0EA 21.3-inch (54 cm), monochrome, TFT, Anti-glare, IPS Pixel pitch (H × V) 0.270 × 0.270 mm Display area 324.0 × 432.0 mm (Portrait) (H × V) Pixel (H × V) 1200 × 1600 (Portrait) 8 bit: 256 steps 10 bit: 1024 steps Grayscale 1276-step simultaneously displayable grayscale in ISD mode with a...
  • Page 28 The monitor installed on desk in observation room or diagnostic reading room. (Diffuse reflection) 14.5 lx. Environmental (Config1 (Lmin 0.6 cd/m Conditions Use MS-S200/F in the room that its 24.1 lx. ambient light is less than (Config2 (Lmin 1.0 cd/m 19.3 lx. (Config3 (Lmin 0.8 cd/m 16.3 lx.
  • Page 29 External dimensions Portrait (vertical orientation) 166.5 80.5 34.5 361.5 +20° -5° 326.5 196.5 Landscape (horizontal orientation) 434.5 Unit: mm - 29 -...

  • Page 30: After-Sales Service

    After-sales service Warranty Consult your dealer about the warranty. Requesting repair • Read “Troubleshooting” of the installation manual carefully and check if the problem solves. • If the problem remains, stop using the monitor, unplug it, and consult your dealer. Do not try to repair yourself.

  • Page 31: Disposal Of Electrical And Electronic Equipment

    Disposal of electrical and electronic equipment Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems) Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.
  • Page 32 This page is intentionally left blank. - 32 -...
  • Page 33 This page is intentionally left blank. - 33 -...
  • Page 34 This page is intentionally left blank. - 34 -...
  • Page 35 MS-S200 Operation Manual November 2023 Edition Notes for the Operation Manual • No part of this manual, whether partly or wholly, may be reproduced or copied without authorization. • The content of this manual is subject to change without notice.
  • Page 36 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN Printed in Japan © 2021 JVCKENWOOD Corporation B5A-3734-20 231110...
