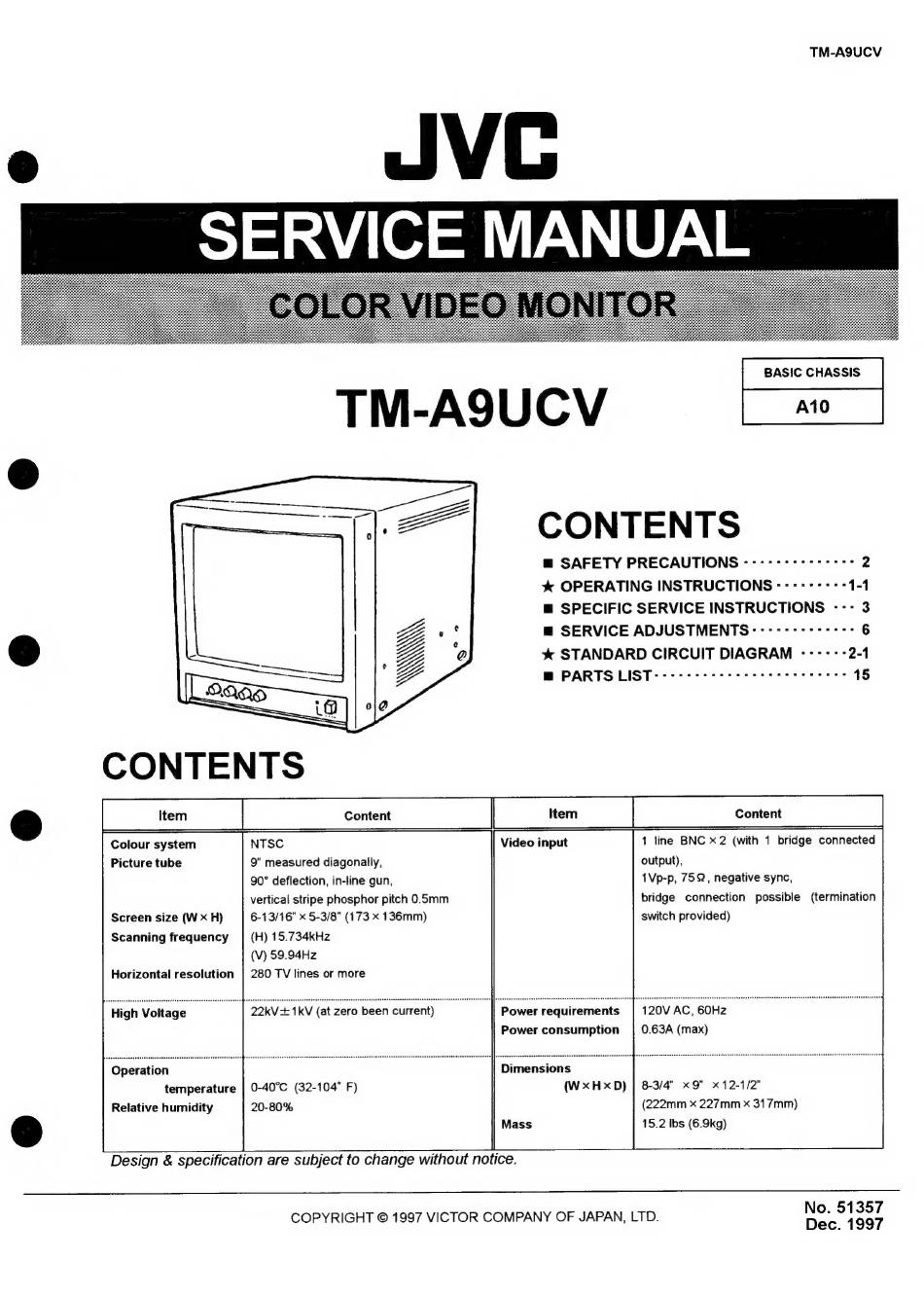

TM-ASUCV
CONTENTS
m SAFETY PRECAUTIONS ---------+--+- 2
& OPERATING INSTRUCTIONS --------- 1-1
™ SPECIFIC SERVICE INSTRUCTIONS --- 3
m SERVICE ADJUSTMENTS ------- ween 6
1 line
BNC x2
(with 1 bridge connected
output),
1Vp-p, 752, negative sync,
NTSC
9" measured diagonally,
90° deflection, in-line gun,
vertical stripe phosphor pitch 0.5mm
6-13/16" x 5-3/8" (173 x 136mm)
(H) 15.734kHz
(V) 59.94Hz
280 TV lines or more
Colour system
Video input
Picture tube
bridge
connection
possible
(termination
switch provided)
Screen size (W x H)
Scanning frequency
Horizontal resolution
120V AC, 60Hz
0.63A (max)
Dimensions
(WxHxD)
Operation
temperature
8-3/4"
x9"
x12-1/2"
(222mm x 227mm x 317mm)
15.2 Ibs (6.9kg)
0-40°C (32-104° F)
Relative humidity
20-80%
