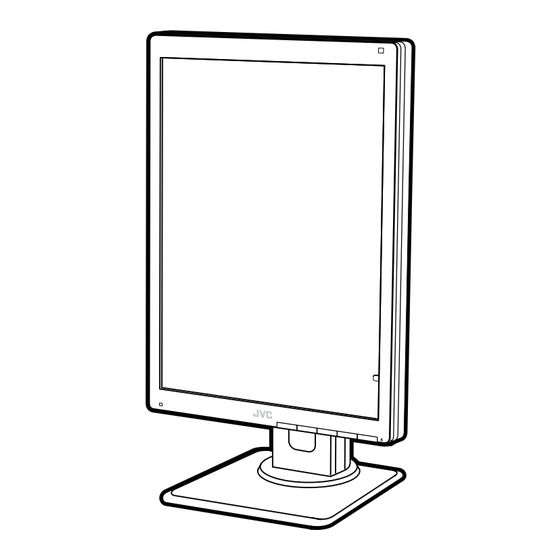

21.3-inch (54 cm) Monochrome LCD Monitor
Installation Manual
for system administrators
Model: MS-S200Bx0UA
MS-S200Bx0EA
Important
Please read this "Installation Manual" carefully before use.
Please make sure to read the "Safety precautions" in the "Operation Manual" first and
keep this "Installation Manual" in a safe and easily accessible place for future reference.
B5E-0268-10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JVC MS-S200
Summary of Contents for JVC MS-S200
- Page 1 21.3-inch (54 cm) Monochrome LCD Monitor Installation Manual for system administrators Model: MS-S200Bx0UA MS-S200Bx0EA Important Please read this “Installation Manual” carefully before use. Please make sure to read the “Safety precautions” in the “Operation Manual” first and keep this “Installation Manual” in a safe and easily accessible place for future reference. B5E-0268-10...
-
Page 2: Table Of Contents
Contents Product security ................... 3 Package contents ..................4 Connecting the cables ................5 Switching screen orientation ..............7 Adjusting the screen angle ..............8 Monitor information .................. 9 1. Operation button guide ..............9 2. Information ...................10 3. Current state ..................11 4. -
Page 3: Product Security
Product security This product is operated by the dedicated microcomputer system. To delete or alter the program could lead to abnormal display. When connecting this monitor to a workstation to change the settings or adjust the accuracy control, do not disconnect the USB cable while the devices are communicating. -
Page 4: Package Contents
Package contents Please check if the following items are included in this product package. If any item is missing, contact your dealer for replacement. Do not use the supplied power cord for anything other than this monitor. Note □ Monitor □... -
Page 5: Connecting The Cables
Connecting the cables Turn off the workstation. DisplayPort connection : Connect the supplied DisplayPort cable between the monitor’s DisplayPort IN and the workstation’s DisplayPort connector. DVI-D connection : Connect a Single Link DVI cable between the monitor’s DVI-D and the workstation’s DVI output connector. - Page 6 How to setup multiple monitors in daisy-chain Please connect multiple monitors together using DisplayPort as below. For details on the monitors and graphics cards supporting daisy-chain, please see our website. To the DisplayPort output of the workstation DisplayPort cable DisplayPort cable DisplayPort cable - 6 -...
-
Page 7: Switching Screen Orientation
Switching screen orientation MS-S200 can be used in both landscape and portrait orientation by changing the resolution setting in Monitor Properties. Follow the instructions below on how to switch screen orientation. To use the monitor in portrait orientation, a graphics card that supports vertical Note timing is required. -
Page 8: Adjusting The Screen Angle
Adjusting the screen angle The screen of this monitor can be adjusted to any angle within the range shown below. Hold the screen with both hands and adjust the angle slowly. 20 degrees 45 degrees 45 degrees 5 degrees Caution Be careful when adjusting the screen angle. -
Page 9: Monitor Information
Monitor information You can display various monitor information on the screen (On Screen Display: OSD) for adjustment. 1. Operation button guide “ Operation Button Guide ” is not displayed on the screen in the default setting. When pressing any one of operation buttons (A–D), “ Operation Button Guide ① ” appears. When no operation is done, it will disappear after 10 seconds. -
Page 10: Information
2. Information 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Press the “MENU” button. 3) Select “INFORMATION” from MENU 1/2 using the “▼” or “▲” button and press the “OK” button. The following “INFORMATION 1/2” OSD appears as below. The OSD page switches between “INFORMATION 1/2”... -
Page 11: Current State
3. Current state 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Press the “MENU” button. 3) Select “CURRENT STATE” from MENU 1/2 using the “▼” or “▲” button and press the “OK”... -
Page 12: Osd Menu Hierarchy
5. OSD menu hierarchy The OSD structure and a brief explanation for each menu item as follows. MENU － INFORMATION ..........Shows monitor information － CURRENT STATE ..........Shows monitor current state － DICOM CONFORMANCE TEST ....DICOM conformance test －... - Page 13 － USB POWER － Auto * ............ON only when USB UP is connected － Off ............... OFF － FACTORY PRESET) － Yes ............... Executes FACTORY PRESET － No ..............Cancels FACTORY PRESET • KEY LOCK_1 (The stand-by button can be locked by long press on it.) •...
-
Page 14: Performing The Dicom Conformance Test
Performing the DICOM conformance test Note This function is available only when the monitor has been calibrated to DICOM GSDF. Performing the DICOM conformance test ensures DICOM conformance of the monitor by measuring and checking the monitor properties. The DICOM conformance test is recommended to be performed after 60 minutes of continuous lighting time of the backlight of the LCD panel. - Page 15 6) Select “DICOM CONFORMANCE TEST” from MENU 1/2 using the “▼” or “▲” button and press the “OK” button. Then select “Yes” for “START TESTING” from “DICOM CONFORMANCE TEST” OSD and press the “OK” button. If “DICOM GSDF” is NOT selected, the message “START TESTING” will not Note appear.
-
Page 16: Setting The Configuration Data
Setting the configuration data MS-S200 can save up to three settings of luminance-Gamma as configuration data within the monitor and they can be switched by selecting a configuration number appeared on the current operating state OSD screen. The following three configuration settings are saved prior to shipping as factory default. - Page 17 CURRENT STATE 2 M P C U R R E N T S T A T E L U M I N A N C E 5 0 0 A M B L I G H T 1 0 0 . 0 lx I N P U T D V I C A L I B R A T I O N...
-
Page 18: Switching Display Mode
Switching display mode This product has “Normal Mode”, whose pixel pitch is 270 μm (2 million-pixel LCD monitor), and “ISD Mode”, whose pixel pitch is 90 μm (sub-pixel direction) realized by Independent Sub-pixel Drive (ISD) technology. Setting method 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Press the “MENU”... -
Page 19: Switching Input Source
Switching input source Please operate input source change following the procedure mentioned below. Setting method 1 You can change input source by OSD. 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Press the “MENU” button. 3) Select “INPUT SOURCE”... -
Page 20: Auto Text Mode
Auto text mode MS-S200 comes with the function called “AUTO TEXT MODE”, which automatically detects a text window (white window) used for showing information such as report and patient list, and reduces its luminance depending on the size of the display area of the window. - Page 21 Setting method 2 You can assign the AUTO TEXT MODE function to the function buttons (F1–F3) which allows you to enable or disable the function easily via button operation. The following explains how to assign to the “F2” button. 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Press the “MENU”...
-
Page 22: Human Presence Sensor
Human presence sensor Human presence sensor is mounted on this product, and it can detect human motion. When leaving your seat, “Stand-by” mode is automatically activated. It helps to reduce power consumption. The default is “Disable”, but OSD operation can change it to “Enable”. -
Page 23: Locking The Image Display Orientation
Locking the image display orientation MS-S200 can be used both Portrait and Landscape orientation rotating the panel. If the user would like to use with proper screen even if changes the panel orientation, need to change EDID data which is operated in the OSD (EDID). It is set to “Auto Selection” as default. -
Page 24: How To Display The Test Pattern
How to display the test pattern To display the Test pattern to check the image quality prior to the use of the monitor, press the button located in the front of the monitor as follows. Select test pattern 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Press the “MENU”... - Page 25 Display method 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Display a test pattern by pressing the “F1” button. The test pattern disappears automatically in 10 seconds. You can also turn it off by pressing the “F1” button again while the test pattern is activated.
-
Page 26: Displayport Setting
DisplayPort setting You can reduce power consumption by selecting “Disable” for DISPLAYPORT on MENU 2/2 when using only DVI (DisplayPort is not used at all). With this setup, DisplayPort OUT connector does not work. Setting method 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Press the “MENU”... -
Page 27: Usb Hub
USB hub MS-S200 has a USB 2.0 compliant hub. Peripheral USB devices can be connected to this monitor directly by connecting the supplied USB cable to a workstation supporting USB or other USB hubs. The default is “Auto”, but OSD operation can change it to “Off”. - Page 28 The supplied USB cable can also be used for the followings: • To calibrate the monitor (An optional calibration kit is required.) • To calibrate multiple monitors in succession ● To calibrate the monitor Connect the supplied USB cable between one of the monitor’s UP’s and the workstation’s USB down port.
-
Page 29: Restore Factory Preset
Restore factory preset Please follow the steps as below when restoring your monitor to “Factory Preset”. Restore method 1) Display the “Operation Button Guide ① ” by pressing any one of operation buttons (A– 2) Press the “MENU” button. 3) Select “FACTORY PRESET” from MENU 2/2 using the “▼” or “▲” button and long press the “OK”... -
Page 30: Locking The Stand-By Button
Locking the stand-by button MS-S200 has the function to lock the Stand-by (Power) button. You can make the Stand-by (Power) button unavailable in front of the monitor to avoid turning off the monitor accidentally. Stand-by button How to lock Long press the Stand-by (Power) button for more than four seconds without any OSD on the screen. -
Page 31: Operation Button Lock
Operation button lock MS-S200 has the function to lock Operation buttons. You can make the Operation buttons unavailable in front of the monitor to avoid changing your setting accidentally. Operation button (4 pieces) How to lock Long press the “▼” and “▲” button for more than four seconds without any OSD on the screen. -
Page 32: Attaching An Arm Stand
Attaching an arm stand The tilt stand is interchangeable with commercially available arms. After checking the specifications of the arm to be used, pay 115 mm attention to the following points when selecting. 100 mm • Come with a mount plate with 4 slotted screw holes at 100 mm ×... -
Page 33: Anti-Theft Security Slot
Anti-Theft security slot This monitor has a built-in Kensington MicroSaver* Security Slot by ACCO Brands Corporation. Please purchase the MicroSaver lock at PC stores separately. * Kensington, MicroSaver are registered trademarks of ACCO Brands Corporation. - 33 -... -
Page 34: How To Change The Fuse
How to change the fuse Note for AC INLET with fuse AC Inlet has a built-in fuse. When replacing the fuse, be sure to use only a correctly rated approved type, re-fit the fuse cover. How to replace the fuse Open the fuse compartment with the blade screwdriver, and replace the fuse. -
Page 35: Troubleshooting
Troubleshooting If you suspect a problem, please check the following items before requesting repair. Symptom Cause and Solution The monitor does not turn • Make sure the monitor is plugged ( P5). • Check if the POWER switch is turned on. (The LED indicator is off.) •... - Page 36 This page is intentionally left blank. - 36 -...
- Page 37 This page is intentionally left blank. - 37 -...
- Page 38 This page is intentionally left blank. - 38 -...
- Page 39 MS-S200 Installation Manual November 2023 Edition Notes for the Installation Manual • No part of this manual, whether partly or wholly, may be reproduced or copied without authorization. • The content of this manual is subject to change without notice.
- Page 40 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN Printed in Japan © 2021 JVCKENWOOD Corporation B5E-0268-10 231107...
