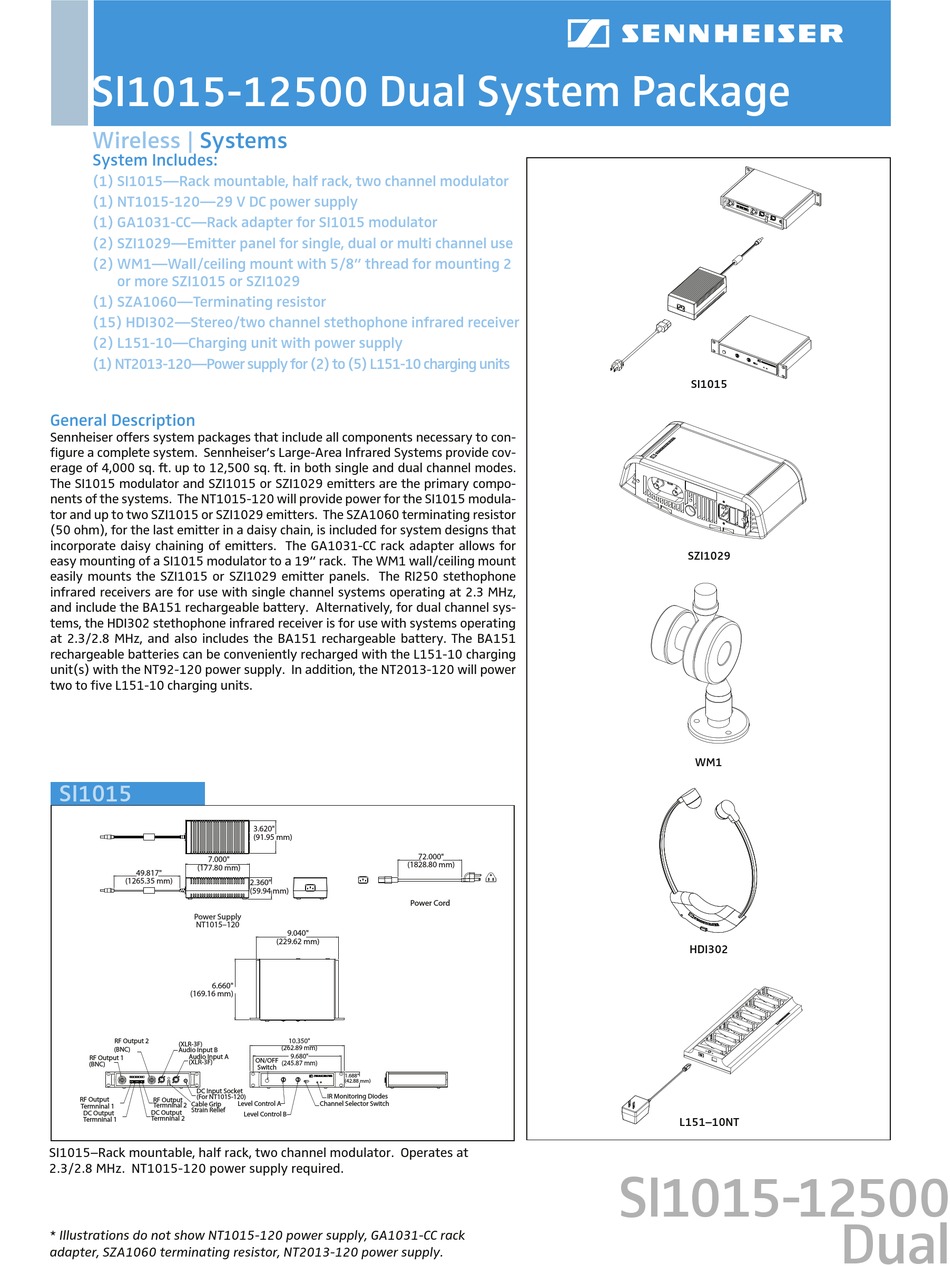

Sennheiser SI 1015-12500 DUAL Product Sheet

SI1015-12500 Dual System Package
Wireless | Systems
System Includes:
(1265.35 mm)
(1) SI1015—Rack mountable, half rack, two channel modulator
(1) NT1015-120—29 V DC power supply
(1) GA1031-CC—Rack adapter for SI1015 modulator
(2) SZI1029—Emitter panel for single, dual or multi channel use
(2) WM1—Wall/ceiling mount with 5/8" thread for mounting 2
or more SZI1015 or SZI1029
(1) SZA1060—Terminating resistor
(15) HDI302—Stereo/two channel stethophone infrared receiver RF Output 2
(BNC)
RF Output 1
(2) L151-10—Charging unit with power supply
(BNC)
(1) NT2013-120—Power supply for (2) to (5) L151-10 charging units
RF Output
Termninal 1
DC Output
Termninal 1
General Description
Sennheiser offers system packages that include all components necessary to con-
figure a complete system. Sennheiser's Large-Area Infrared Systems provide cov-
erage of 4,000 sq. ft. up to 12,500 sq. ft. in both single and dual channel modes.
The SI1015 modulator and SZI1015 or SZI1029 emitters are the primary compo-
nents of the systems. The NT1015-120 will provide power for the SI1015 modula-
tor and up to two SZI1015 or SZI1029 emitters. The SZA1060 terminating resistor
(50 ohm), for the last emitter in a daisy chain, is included for system designs that
incorporate daisy chaining of emitters. The GA1031-CC rack adapter allows for
easy mounting of a SI1015 modulator to a 19" rack. The WM1 wall/ceiling mount
easily mounts the SZI1015 or SZI1029 emitter panels. The RI250 stethophone
4.571"
infrared receivers are for use with single channel systems operating at 2.3 MHz,
(116.10 mm)
and include the BA151 rechargeable battery. Alternatively, for dual channel sys-
tems, the HDI302 stethophone infrared receiver is for use with systems operating
at 2.3/2.8 MHz, and also includes the BA151 rechargeable battery. The BA151
rechargeable batteries can be conveniently recharged with the L151-10 charging
unit(s) with the NT92-120 power supply. In addition, the NT2013-120 will power
two to five L151-10 charging units.
Adjusting
SI1015
7.000"
(177.80 mm)
49.817"
(1265.35 mm)
Power Supply
NT1015–120
6.660"
(169.16 mm)
RF Output 2
(XLR-3F)
(BNC)
Audio Input B
Audio Input A
RF Output 1
(XLR-3F)
(BNC)
DC Input Socket
(For NT1015-120)
RF Output RF Output
Cable Grip
Termninal 2
Termninal 1
Strain Relief
DC Output DC Output
Termninal 2
Termninal 1
SI1015–Rack mountable, half rack, two channel modulator. Operates at
2.3/2.8 MHz. NT1015-120 power supply required.
* Illustrations do not show NT1015-120 power supply, GA1031-CC rack
adapter, SZA1060 terminating resistor, NT2013-120 power supply.
3.620"
(91.95 mm)
7.000"
(177.80 mm)
49.817"
2.360"
(59.94 mm)
Power Supply
NT1015–120
9.040"
(229.62 mm)
6.660"
(169.16 mm)
10.350"
(XLR-3F)
(262.89 mm)
Audio Input B
Audio Input A 9.680"
ON/OFF
(XLR-3F) (245.87 mm)
Switch
DC Input Socket
(For NT1015-120)
RF Output
3.318"
Level Control A
Cable Grip Channel Selector Switch
Termninal 2
(84.28 mm)
Strain Relief
DC Output
Level Control B
Termninal 2
Ratchet Adjustment
For Angle
RF Output (BNC)
MONO/Multi Switch
RF Input (BNC)
ø1.936
(49.17 mm)
2.724"
(69.19 mm)
Knob
ø.161
(4.09 mm)
ø.743
(44.27 mm)
Mounting Plate
ø.251
(6.38 mm)
ø.1242
Screw Holes
(31.55 mm)
3.620"
(91.95 mm)
(1828.80 mm)
2.360"
(59.94 mm)
9.040"
(229.62 mm)
Inserted BA151
Rechargeable
10.350"
(262.89 mm)
9.680"
ON/OFF
(245.87 mm)
Switch
1.688"
(42.88 mm)
IR Monitoring Diodes
Level Control A Channel Selector Switch
Level Control B
72.000"
(1828.80 mm)
Power Cord
1.688"
Convection Cooling Fins
(42.88 mm)
IR Monitoring Diodes
10.270"
(260.86 mm)
IR Transmission Diodes
(behind cover)
4.970"
(126.24 mm)
5/8" External
Thread
IEC Mains Connector
5/8" Thread for mounting
(3/8" X 1/2" Adapters included)
5.286"
(134.26 mm)
Replaceable
Ear Cushions
7.390"
(187.71 mm)
72.000"
Two IR
Receiving Diodes
(Behind plastic cover)
Power Cord
1.467"
(37.26 mm)
Battery Channel Selector Switch
ON/OFF Volume Control
SI1015
SZI1029
WM1
ø.752
(19.10 mm)
HDI302
L151–10NT
SI1015-12500
LED Indicator
Trickle Charge
(Green)
Button:
Press to begin
10 HR charge cycle
LED Indicator
Charge (Red)
Charging for
RI250, HDI302
Infrared Receivers
(Up to ten)
1.500"
(38.10 mm)
Dual
