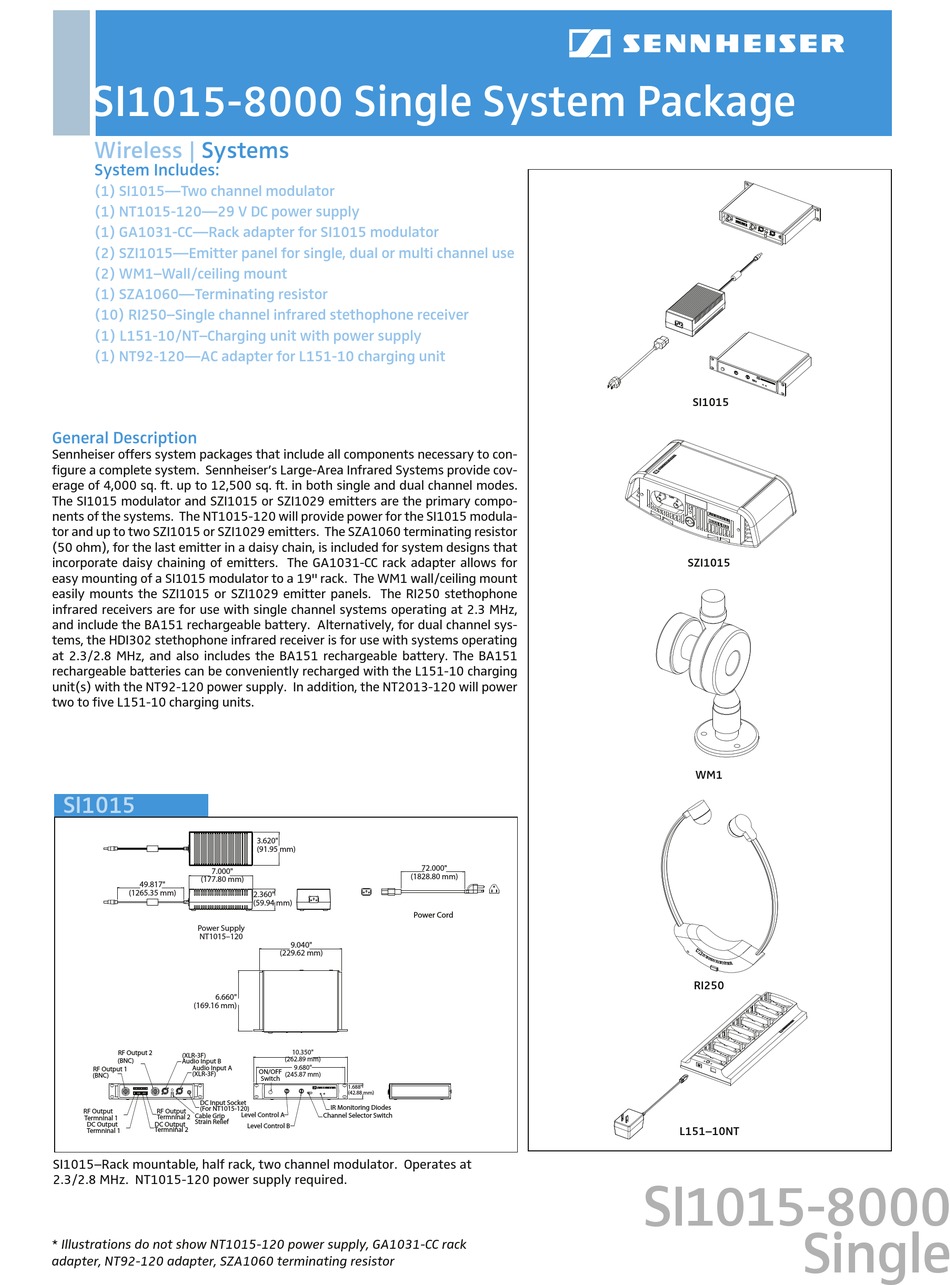

SI1015-8000 Single System Package
Wireless | Systems

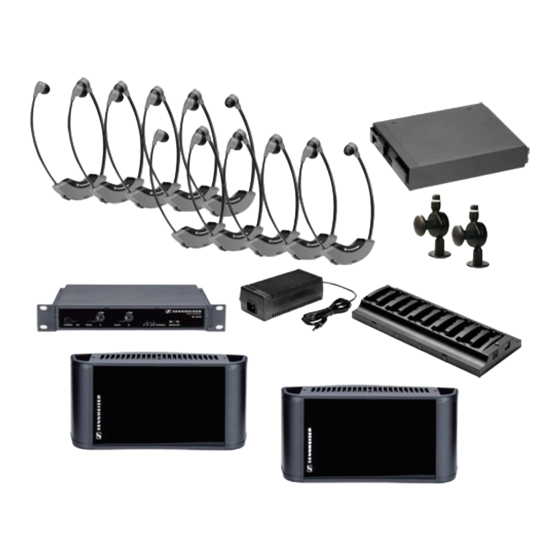

System Includes:
49.817"
(1265.35 mm)
(1) SI1015—Two channel modulator
(1) NT1015-120—29 V DC power supply
(1) GA1031-CC—Rack adapter for SI1015 modulator
(2) SZI1015—Emitter panel for single, dual or multi channel use
(2) WM1–Wall/ceiling mount
(1) SZA1060—Terminating resistor
(10) RI250–Single channel infrared stethophone receiver
(1) L151-10/NT–Charging unit with power supply
RF Output 2
(BNC)
RF Output 1
(1) NT92-120—AC adapter for L151-10 charging unit
(BNC)
RF Output
Termninal 1
DC Output
Termninal 1
General Description
Sennheiser offers system packages that include all components necessary to con-
figure a complete system. Sennheiser's Large-Area Infrared Systems provide cov-
erage of 4,000 sq. ft. up to 12,500 sq. ft. in both single and dual channel modes.
The SI1015 modulator and SZI1015 or SZI1029 emitters are the primary compo-
nents of the systems. The NT1015-120 will provide power for the SI1015 modula-
tor and up to two SZI1015 or SZI1029 emitters. The SZA1060 terminating resistor
(50 ohm), for the last emitter in a daisy chain, is included for system designs that
incorporate daisy chaining of emitters. The GA1031-CC rack adapter allows for
easy mounting of a SI1015 modulator to a 19" rack. The WM1 wall/ceiling mount
easily mounts the SZI1015 or SZI1029 emitter panels. The RI250 stethophone 4.571"
(116.10 mm)
infrared receivers are for use with single channel systems operating at 2.3 MHz,
and include the BA151 rechargeable battery. Alternatively, for dual channel sys-
tems, the HDI302 stethophone infrared receiver is for use with systems operating
at 2.3/2.8 MHz, and also includes the BA151 rechargeable battery. The BA151
rechargeable batteries can be conveniently recharged with the L151-10 charging
unit(s) with the NT92-120 power supply. In addition, the NT2013-120 will power
two to five L151-10 charging units.
Adjusting
Knob
SI1015
7.000"
(177.80 mm)
49.817"
(1265.35 mm)
Power Supply
NT1015–120
6.660"
(169.16 mm)
RF Output 2
(XLR-3F)
(BNC) Audio Input B
Audio Input A
RF Output 1
(XLR-3F)
(BNC)
DC Input Socket
(For NT1015-120)
RF Output
RF Output
Cable Grip
Termninal 2
Termninal 1
Strain Relief
DC Output
DC Output
Termninal 2
Termninal 1
SI1015–Rack mountable, half rack, two channel modulator. Operates at
2.3/2.8 MHz. NT1015-120 power supply required.
* Illustrations do not show NT1015-120 power supply, GA1031-CC rack
adapter, NT92-120 adapter, SZA1060 terminating resistor
3.620"
(91.95 mm)
7.000"
(177.80 mm)
2.360"
(59.94 mm)
Power Supply
NT1015–120
9.040"
(229.62 mm)
6.660"
(169.16 mm)
10.350"
(XLR-3F)
(262.89 mm)
Audio Input B
9.680"
Audio Input A
ON/OFF
(XLR-3F)
(245.87 mm)
Switch
DC Input Socket
IR Monitoring Diodes
(For NT1015-120)
RF Output
Level Control A Channel Selector Switch
Cable Grip
Termninal 2
Strain Relief
DC Output
Level Control B
Termninal 2
3.318"
(84.28 mm)
Ratchet Adjustment
For Angle
RF Output (BNC)
MONO/Multi Switch
RF Input (BNC)
ø1.936
(49.17 mm)
2.724"
(69.19 mm)
ø.161
5.286"
(4.09 mm)
(134.26 mm)
Replaceable
ø.743
ear cushions
(44.27 mm)
Mounting Plate
ø.1242
(31.55 mm)
3.620"
(91.95 mm)
72.000"
(1828.80 mm)
Two IR (187.71 mm)
Receiving Diodes
(behind plastic cover)
2.360"
(59.94 mm)
Power Cord
9.040"
1.467"
(229.62 mm)
(37.26 mm)
ON/OFF
Volume Inserted BA151
Control Rechargeable
Battery
10.350"
(262.89 mm)
9.680"
ON/OFF
(245.87 mm)
Switch
1.688"
(42.88 mm)
IR Monitoring Diodes
Level Control A
Channel Selector Switch
Level Control B
72.000"
(1828.80 mm)
Power Cord
1.688"
(42.88 mm)
Convection Cooling Fins
10.270"
(260.86 mm)
IR Transmission Diodes
(behind cover)
4.970"
(126.24 mm)
5/8" External
Thread
RF Input Terminals
DC Input Terminals
DC Output Terminals
RF Output Terminals
5/8" Thread for mounting
(3/8" X 1/2" Adapters included)
ø.752
(19.10 mm)
7.390"
SI1015
SZI1015
WM1
RI250
L151–10NT
SI1015-8000
Single
LED Indicator
Trickle Charge
(Green)
Button:
Press to begin
10 HR charge cycle
LED Indicator
Charge (Red)
Charging for
RI250, HDI302
Infrared Receivers
(Up to ten)
1.500"
(38.10 mm)
