Sennheiser Audiology Set 810 S Infra-red Specifications

Set 810 S Infra-red
Audiology |
Description

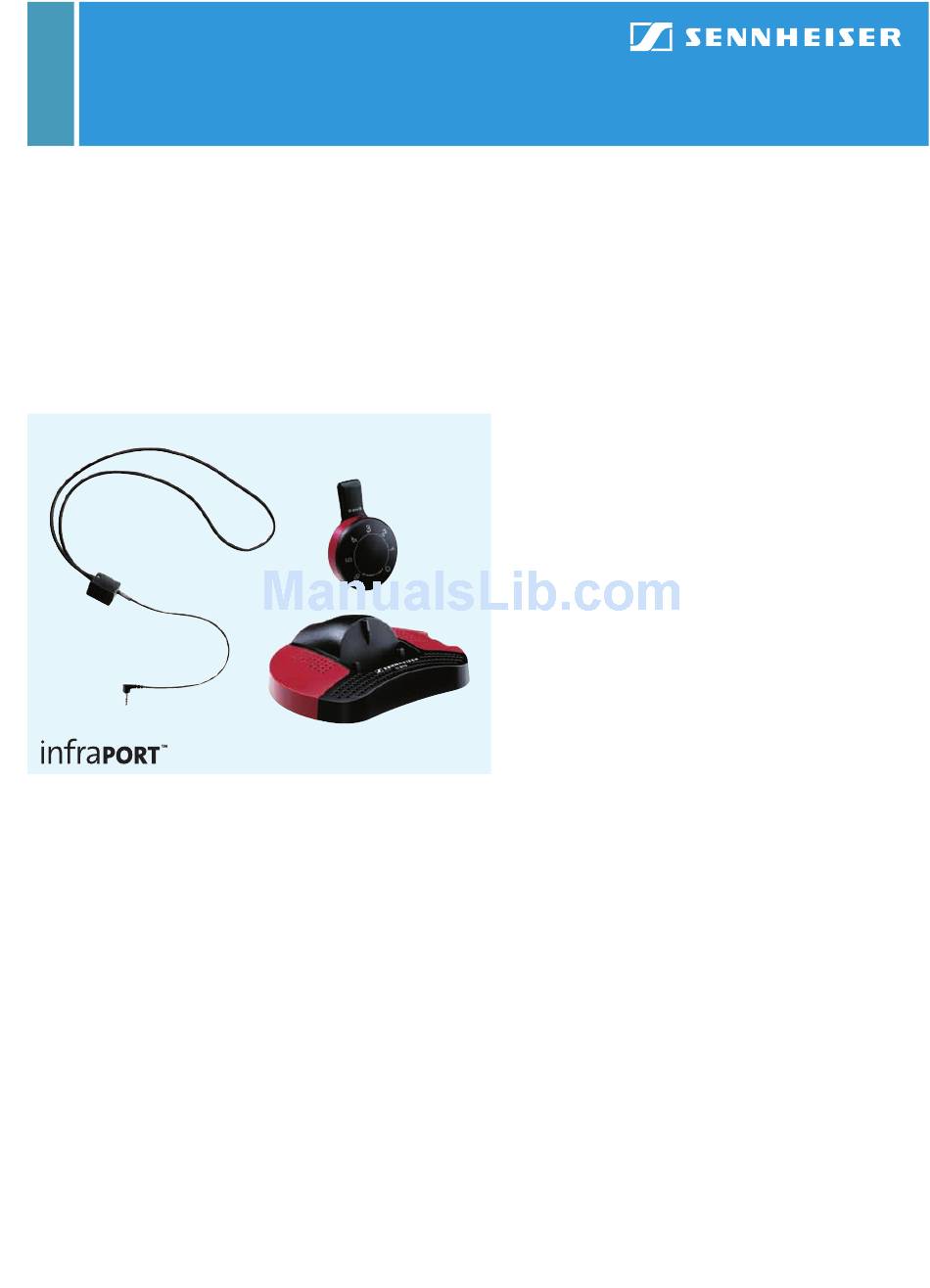

IR stereo receiver for use with the TI 810 IR stereo transmitter or an
IR audio transmission system. The RI 810 S features an audio output
for connecting a pair of headphones, an induction neck loop, induction
couplers or a hearing aid with audio input. The receiver features a large,
easy-to-use volume control and an integrated clip for attaching it to the
clothing.
Features
Individually adjustable to the listener's hearing
j
Large, ergonomic volume control
j
Integrated attachment clip
j
3.5 mm (1/8˝) Ø stereo jack socket for connecting headphones,
j
induction accessories or hearing aids with audio input
Delivery includes: 1 RI 810 S stethoset receiver
j
1 BA 151 accupack
Recommended Accessories
BA 151 Spare accupack
j
L 151-2 Charger
j
TI 810 (European version) Transmitter
j
TI 810-UK (UK version)
j
TI 810-120 (US version)
j
MKE 800 TV, TV microphone
j
HD 25 SP-1 Dynamic headphones
j
EZI 120 Induction coupler
j
EZT 1011 Induction neck loop
j
Wireless Infra-Red Receiver
for TV Sound Transmission
Technical Data – System
Colour ........................................................................... red/anthracite
Modulation .......................................................................... FM, stereo
Receiving frequencies ................................................. 2.3 / 2.8 MHz
AF frequency response ............................................. 40 Hz –15 KHz
THD .............................................................................< 2 % at 120 dB
Signal-to-noise ratio ...........................................................60 dB A
Range ...................................................................... 12 m (365.76 ft.)
Covered area ....................................................60 m
Technical Data – Transmitter
Audio input ......................................................... jack, stereo/mono
Microphone socket ............................. 2.5 mm (3/32˝) jack, mono
Charging time (receiver accupack) .................................. appx. 4 h
Charging time (spare accupack) .....................................appx. 14 h
Power supply ................................................ 24 V DC via mains unit
Weight (w/o accupack) ..................................appx. 94 g (3.32 oz)
Dimensions ................Ø 150 mm (5.91˝), height: 47 mm (1.85˝)
Technical Data – Receiver
THD .................................................................................................< 2%
Operating time .............................................................................> 5 h
Power supply ................................... 2.4 V DC via BA 151 accupack
Weight (w/o accupack) ..................................appx. 35 g (1.23 oz)
Dimensions ............................................................. 95 x 63 x 35 mm
Product Variants
Set 810 S-UK as Set 810 S, but with
j
UK plug-in mains unit and MKE 800
Cat. No. 004146
TV microphone
Cat. No. 004457
Set 810 S-120 as Set 810 S, but with
j
US plug-in mains unit, audio connection
Cat. No. 004983
cable with RCA phono connector and
Cat. No. 004991
MKE 800 TV microphone
Cat. No. 004993
Cat. No. 004995
Cat. No. 004173
Cat. No. 003448
Cat. No. 001954
Cat. No. 009370
eff
2 (645.83 sq. ft.)
(3.74˝ x 2.48˝ x 1.38˝)
Cat. No. 009371
Cat. No. 009372
