- Page 1 SIP Intercom DP8 Series Quick Installation Guide Shenzhen Dinstar Co.,Ltd. Tel: +86 755 2645 6664 Fax: +86 755 2645 6659 Email: sales@dinstar.com, support@dinstar.com Website: www.dinstar.com...
-
Page 2: Table Of Contents
Contents 1 Packing List ................3 2 Physical Specifications ............4 3 Installation ................. 9 4 Obtaining the device IP address ........10 5 SIP Intercom Setting ............. 10 6 Door Open Setting ..............11... -
Page 3: Packing List

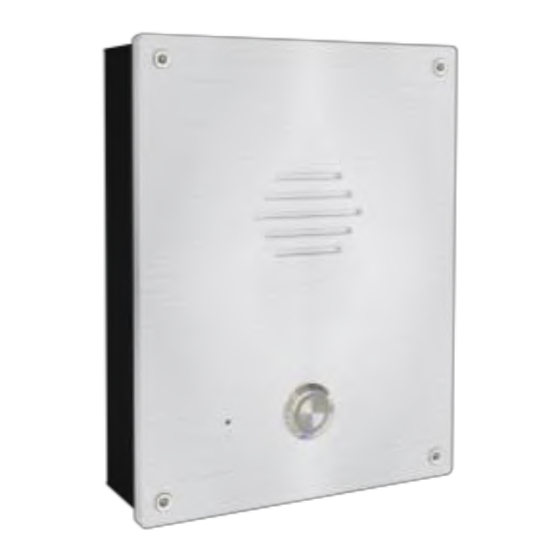

SIP Intercom DP8 Series Quick Installation Guide 1 Packing List SIP Intercom Installation Accessories RFID Card DP81 DP82 DP83... -
Page 4: Physical Specifications
DP85 DP88 2 Physical Specifications DP81 Device Dimension(L*W*H) 120*153*40（mm） DP82 Device Dimension(L*W*H) 120*200*40（mm） DP83 Device Dimension(L*W*H) 120*200*40（mm） DP85 Device Dimension(L*W*H) 120*200*40（mm） DP88 Device Dimension(L*W*H) 120*285*40（mm）... - Page 5 2.1 Front Panel DP81 DP82 DP83 DP85 DP88...
- Page 6 2.2 Interface Description Number Description Ethernet interface: standard RJ45 interface, 10/100M adaptive, it is recommended to use five or five types of network cable Power interface: 12V/1A input Two sets of short-circuit input detection interfaces: for connecting switches, door magnets, vibration sensors and other input devices Two sets of short-circuit output detection interfaces: for controlling the electric lock, alarm device, etc.
- Page 7 External power supply： When the electric-lock starting current is less than 12V/500mA, the device can use the internal drive mode, the electric lock interface is 12V DC output. 2.3 Wiring Instructions NO: Normal Open, idle status of the electric lock is opened COM: COM1/COM2 interface NC: Normal Closed, idle status of the electric lock is closed JP1 Jumper...
- Page 8 √ √ √ √ JP6 Jumper Power Supply Type Electric Lock type Connections Power off, Power on, Jumper Internal External door open door open √ √ √ √ √ √ √ √...
-
Page 9: Installation
3 Installation 3.1 Preparations （1）Check the following contents L-type screwdriver x 1 Slotted screwdriver x 1 KA4 X30 mm screws x 5 6×30mm expansion tube x 5 M3* 8mm screws x 2 （2）Tools that may be required L-type screwdriver Screwdriver (Ph2 or Ph3), hammer, RJ45 crimper Electric impact drill with a 6mm drill bit 3.2 Steps（Take DP88 for example）... -
Page 10: Obtaining The Device Ip Address
4 Obtaining the device IP address After the device is powered on. By default, the device will get the IP address through DHCP. Press the DSS key for ten seconds on the DP81/82/83/85 access panel, the intercom will voice broadcast the IP address of the device. -
Page 11: Door Open Setting
5.3 Set Door Access Parameters Click "Equipment->Access" to set door access parameters. Including open door By DTMF Code, Access Card (RFID card & password) and HTTP (username & password of HTTP door open). 6 Door Open Setting 6.1 Open Door by DTMF Code Click "Equipment->Access", select "Open Door by DTMF Code"... - Page 12 enable this function, and set the DTMF code for opening the door; When the intercom calls the indoor monitor, during the call, the indoor monitor can send DTMF code to open the door. 6.2 Open Door by RFID Card （Only supported by DP82/DP85/DP88） Click "...
- Page 13 6.3 Open Door By Password（Only supported by DP88） Click " Equipment->Access", select "Access Card->password ", and add the correct password to open the door configuration; Enter *password# on the DP88 panel to open the door.
