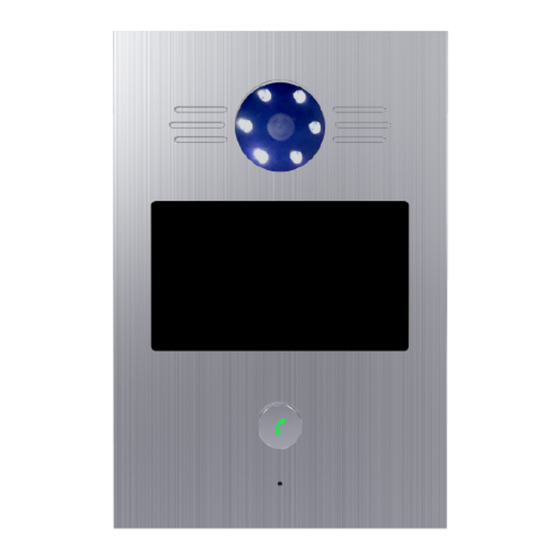

Dinstar C83 User Manual

Sip door phone
Hide thumbs
Table of Contents

Advertisement

Quick Links


C83 SIP Door phone User




















Manual


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C83 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dinstar C83

Summary of Contents for Dinstar C83

  • Page 1           C83 SIP Door phone User  Manual                                   ...

  • Page 2: Table Of Contents

        Contents  C83 SIP Door phone User Manual 1 Overview 1.1 Introduction 1.2 Features 1.3 Hardware Introduction Chapter 2 Installation 2.1 Check the contents of the package Contents 2.2 Installation steps Chapter 3 Feature 3.1 Dial 3.3 Enter the password to open the door(Note:Only C88 has this function) Chapter 4 Web configuration Status->Basic...

  • Page 3: C83 Sip Door Phone User Manual

    C83 SIP Door phone User Manual Door Phone-Voice/Video Door Phone-Tones 4.10 Upgrade-Basic 4.11 Upgrade-Advanced 4.12 Security-Basic 4.13 Security-Advanced 4.14 4.15 Chapter 5 Fault Resolution Appendix: Time Zone  ...

  • Page 4: Overview

    1 Overview 1.1 Introduction  C83 is a one-key SIP access control phone with integrated HD camera and advanced                             audio system with echo cancellation. It supports H.264 video compression format and  ...
  • Page 5 C83 SIP Door phone User Manual Management Function  ❖ Automatic configuration: FTP / TFTP / HTTP / HTTPS / PNP  ▪ Configuration via HTTP / HTTPS web  ▪ SNMP/TR069  ▪ Time synchronization service / Daylight saving time  ▪ Network upgrade firmware ...

  • Page 6: Hardware Introduction

    Primary and secondary DNS  ▪ Private network penetration protocol, session timer  ▪ 802.1p/q, DSCP  ▪ DHCP/Static/PPPoE  ▪ DTMF MODE: In-Band, RFC2833 and SIP INFO  ▪   1.3 Hardware Introduction  Front view and description  ❖   camera：1080p HD camera      ❖...
  • Page 7 C83 SIP Door phone User Manual    ...
  • Page 8     Appellation  Description  (DC 12V/1A)  DC 12V/1A power adapter connector  Internet  LAN port for network connection, 10 /               100M, RJ45 interface  VCC+(IN)  The interface connected to the engineering          ...

  • Page 9: Chapter 2 Installation

              C83, and the other end to the Ethernet port on the computer.  Step 4 – Configure the device  Start a web browser on the computer and enter the phone's IP address into the    ...

  • Page 10: Chapter 3 Feature

                The dialed number (C83 phone can directly press the "Dial" button to dial the number);  Round Robin Time Out is the time-out period of the carousel. If a number times out      ...

  • Page 11: Enter The Password To Open The Door(Note:only C88 Has This Function)

    C83 SIP Door phone User Manual configuration page;  (note:​ ​ O nly C88 has this function)  In Speed Dial Code you can set up to 10 (phone 0-9 numeric keypad) commonly                  ...

  • Page 12: Chapter 4 Web Configuration

    Chapter 4 Web configuration The web user interface is used for administrators to check or change the phone  configuration.  You can short-circuit the external electrical interface pin 7 and pin 11 to hear the IP            ...

  • Page 13: Account->Basic

    C83 SIP Door phone User Manual Section  Description  Product Information  Display the basic information of the settings, such as Model,  MAC Address (physical address of the IP device), Firmware  Version, and Hardware Version.  Network Information   Display the set network status，Ex:LAN Port Type（...
  • Page 14 Password：For authentication；  ❖ SIP Server 1    Display and configure master server information：  Server IP: SIP server address can be a domain  ❖ name or an IP address;  Registration Period：The IP phone will  ❖ automatically re-register within the registration  period;  SIP Server 2  ...

  • Page 15: Account-Advanced

    C83 SIP Door phone User Manual ；  DNS-SRV：Is a type of DNS record used to  ❖ specify the server address；  NAT   Display and configure NAT (Network Address Translator)             ：  STUN：Simple traversal of UDP on NATS is the ...
  • Page 16 method needs to be available and set its priority;  1、 Disabled Codecs：Default is empty；  2、 Enabled Codecs：H264；  Video Codec：For different encoding methods, the  resolution, bit rate and payload can be set；  Codecs Name：Used to display the name of the  encoding method, currently displayed H264；  Codecs Payload：Codec payload, selection, default ...

  • Page 17: Network-Basic

    C83 SIP Door phone User Manual 2、Min Local SIP Port：cannot be empty， ❖ Account 1-Account 6respectively default  5062-5067，[1,63]characters，Only integers  within [1024,65535] can be filled；  3、Invite with user=phone：options，default  ❖ Disabled，Optional Enabled and Disabled；  4、PTime：options，default 20，can choose  ❖ 10、20、30、40、50、60；  5、Prevent SIP Hacking：options，default ...
  • Page 18 Section  Description  LAN Port  Display and configure LAN port settings：  DHCP: If checked, the IP phone will automatically  ❖ obtain the IP address, subnet mask, default gateway  and DNS server address from the DHCP server；  Static IP: If selected, you must manually set the IP  ❖...

  • Page 19: Network-Advanced

    C83 SIP Door phone User Manual Network-Advanced  Sections Description...
  • Page 20 To display and configure LLDP settings. ❖ LLDP Active: To enable or disable LLDP feature.、 ❖ Packet interval: To configure the interval for LLDP admin message. Note:​ LLDP stands for Link Layer Discovery Protocol, it’s used to LLDP exchange device information between any two directly-connected devices.

  • Page 21: Door Phone-Door Phone

    C83 SIP Door phone User Manual TR069 To display and configure TR069 settings. ❖ Active: To enable or disable TR069 feature. ❖ Version: To select supported TR069 version (version 1.0 or 1.1). ❖ ACS/CPE: ACS is short for Auto configuration servers as server side, CPE is short for Customer-premise equipment as client side devices.
  • Page 22  ...
  • Page 23 C83 SIP Door phone User Manual Section  Description  Call Button  One-touch dial function：  Call Button: Set the corresponding number for  ❖ one-button dialing. In the daytime time range, after  one-button dialing, it will be rotated in the order of  Call Button Day1, Call Button Day2, Call Button Day3; ...
  • Page 24       And the DTMF of the door opening is configured as 1 (it can                           be other DTMF number)    Use softphone dials door phone. After the call is  connected, press 1 on the soft-phone, then the doorphone ...
  • Page 25 C83 SIP Door phone User Manual If the set time is reached, the device will reboot normally.  Note that the current phone time can be referenced                   through the “system time” on the web ...
  • Page 26 and Repeatedly;  Reboot Time：The point in time when the system  ❖ restarts; only when Active selects Every Day, you need  to configure the time to restart every day;  Reboot Interval：Time interval for system restart; only  ❖ when Active selects Repeatedly, you need to  configure the time interval for repeated restart. ...
  • Page 27 C83 SIP Door phone User Manual or high, you can adjust this parameter in the figure below:            Web Call  The configuration steps are as follows： Before using this function, you need to configure Remote control：...
  • Page 28     Example: configure 192.168.3.8 to send HTTP request.   Go to page "Doorphone", enable "door open via HTTP", set                     Username and Password as below:        Enter the following URL on the browser page, and the door  ...

  • Page 29: Call Feature

    C83 SIP Door phone User Manual (3) if wrong username and password will not open the door,                       prompt tone will not play and no response to relay.  (4) if "Door open via HTTP" is disable. Enter the correct URL,  ...
  • Page 30 Select FTP upload： Configure FTP server Set the user name and password of the corresponding FTP server and the IP address of the FTP server； Each call will send the video capture packet to the FTP server for saving； Select email upload： Configure the email address, SMTP user name, password and server address and port；...
  • Page 31 C83 SIP Door phone User Manual Configure HTTP server Set the IP address corresponding to HTTP server； Each call will send the video capture packet to the HTTP server for saving；...

  • Page 32: Door Phone-Time/Lang

    Door Phone-Time/Lang  Section  Description  Web Language  Set the webpage display language.  LCD Language  Set LCD display language(Note:Only C88)  Format Setting   Configure time display settings： ...
  • Page 33 C83 SIP Door phone User Manual Time Format： Set the format for displaying time on the  ❖ phone user interface (12 hours / 24 hours)；  Date Format：Set the format for displaying the date on  ❖ the phone user interface；  Display Mode：Determine the mode for displaying time ...

  • Page 34: Door Phone-Voice/Video

    Because the NTP server only responds to GMT time, you need  to specify the IP phone's time zone to determine the local  time  Daylight Saving Time  Display or configure DST settings：  Notice：​ DST is an abbreviation for Daylight Saving Time,  which means that the sun rises early in summer and will be ...
  • Page 35 C83 SIP Door phone User Manual Section  Description  Mic Volume   Configure the microphone volume for speaker mode.  IP Camera  Configure the camera：  Resolution：Resolution setting；  ❖ Custom：Choose one of ManulRtspURL, Manual UUID,  ❖ Auto UUID to configure the camera；  ManulRtspURL：The correct Rtsp URL must be filled in ...

  • Page 36: Door Phone-Tones

    4.10 Door Phone-Tones  Section  Description  Tone  Allows users to select specific signal tones (classified by  country) or customize their own signal tones.  Notice：​ A vailable country signal tone sets include：  China,Spain,Luxembourg,Sweden,Taiwan,Belgium,Denmark,Fi nland,Germany,Netherlands,Norway,Portugal, Italy.     ...

  • Page 37: Upgrade-Basic

    C83 SIP Door phone User Manual 4.11 Upgrade-Basic    Section  Description  Upgrade  Select ROM file to upgrade automatically from local or  remote server.  Notice:​ Please make sure to use the right format and  correct format file.  Firmware Version  Display firmware version number ...

  • Page 38: Upgrade-Advanced

    4.12 Upgrade-Advanced     ...
  • Page 39 C83 SIP Door phone User Manual Section  Description  PNP Option  Display and configure PNP for automatic upgrade：  PNP Config: Plug and Play. Once PNP is enabled,  ❖ the phone will automatically send SIP subscription  messages to the PNP server to obtain the address ...
  • Page 40 0c110588888.conf).  Notice：​ AES is one of many encryptions, it only needs to be  configured when using AES to encrypt the configuration file,  otherwise leave it blank.  Automatic Autop  Display and configure automatic configuration mode  settings: This automatic upgrade mode is actually  self-evident. ...

  • Page 41: Security-Basic

    C83 SIP Door phone User Manual temporary file. The maximum size of the file is 1M  (megabytes). Once the maximum value is reached, it will  stop capturing.  Others  Display or configure other functions on this page:  Config File: Export or import configuration files for IP ...

  • Page 42: Security-Advanced

    Confirm Password：  ❖ Session Time Out  Configure the user's session timeout：  Session Time Out Value：  ❖ 4.14 Security-Advanced                 ...

  • Page 43: Log

    C83 SIP Door phone User Manual Section  Description  Web Server Certificate  Display or delete all certificates used by HTTPS requests  to connect to IP phones.  Notice：​ C annot delete the default certificate.    Server   Certificate   Upload the certificate file that will be used as the server ...

  • Page 44: Chapter 5 Fault Resolution

    The page displays the door opening mode, including password, DTMF, etc； Chapter 5 Fault Resolution Problem 1：LED not bright  Check the AC power adapter to make sure it is the original power adapter.  ❖ Check the power outlet. Make sure that the power supply of the outlet into which  ...

  • Page 45: Appendix: Time Zone

    C83 SIP Door phone User Manual Appendix: Time Zone Time Zone  Time zone name  -11  Samoa  -10  United States-Hawaii-Aleutian  -10  United States-Alaska-Aleutian  -9  United States-Alaska Time  -8  Canada(Vancouver,Whitehorse)  -8  Mexico(Tijuana,Mexicali)  -8  United States-Pacific Time  -7  Canada(Edmonton,Calgary)  -7  Mexico(Mazatlan,Chihuahua)  -7  United States-Mountain Time ...
  • Page 46 -4  Trinidad&Tobago  -4  Curaçao  -3:30  Canada-New Foundland(St.Johns)  -3  Denmark-Greenland(Nuuk)  -3  Argentina(Buenos Aires)  -3  Brazil(no DST)  -3  Brazil(DST)  -2  Brazil(no DST)  -1  Portugal(Azores)  0  GMT  0  Greenland  0  Denmark-Faroe Islands(Torshaven)  0  Ireland(Dublin)0  Portugal(Lisboa,Porto,Funchal)  0  Spain-Canary Islands(Las Palmas)  0  United Kingdom(London)  0  Morocco ...
  • Page 47 C83 SIP Door phone User Manual +1  Germany(Berlin)  +1  Hungary(Budapest)  +1  Italy(Rome)  +1  Luxembourg(Luxembourg)  +1  Makedonia(Skopje)  +1  Netherlands(Amsterdam)  +1  Namibia(Windhoek)  +2  Estonia(Tallinn)  +2  Finland(Helsinki)  +2  Gaza Strip(Gaza)  +2  Greece(Athens)  +2  Israel(Tel Aviv)  +2  Jordan(Amman)  +2  Latvia(Riga)  +2  Lebanon(Beirut)  +2  Moldova(Kishinev) ...
  • Page 48 +4  Georgia(Tbilisi)  +4  Kazakstan(Aqtau)  +4  Russia(Samara)  +5  Kazakstan(Aqtobe)  +5  Kyrgyzstan(Bishkek)  +5  Pakistan(Islamabad)  +5  Russia(Chelyabinsk)  +5  Russia(Yekaterinburg)  +5:30  India(Calcutta)  +6  Kazakstan(Astana,Almaty)  +6  Russia(Novosibirsk,Omsk)  +7  Russia(Krasnoyarsk)  +7  Thailand(Bangkok)  +8  China(Beijing)  +8  Singapore(Singapore)  +8  Australia(Perth)  +9  Korea(Seoul)  +9  Japan(Tokyo)  +9:30  Australia(Adelaide)  +9:30  Australia(Darwin)  +10 ...
  • Page 49 C83 SIP Door phone User Manual +12:45  New Zealand(Chatham Islands)  +13  Tonga(Nukualofa)     ...
