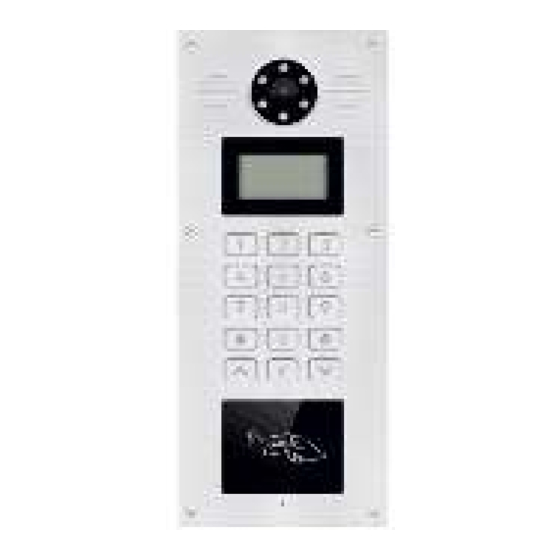

- Page 1 DP88A SIP DOOR PHONE QUICK INSTALLATION GUIDE Catalogue 1. Packing List 2. Material Specification 3. Installation 4. Get the device IP address 5. Door Access Configuration 6. Door Open Configuration DP88A Quick Installation Guide...
-
Page 2: Packing List
Packing List DP88A Device Installation diagram Accessories RFID Card Material Specification DP88A Device Dimension 285*120*38mm Front Panel Wiring Port Specification （Picture II）... -
Page 3: Wiring Description
（Picture III） Item Description Internet Port: Standard RJ45 port ， 10/100M Adaptive ， suggest use CAT5 or CAT5E line. Power Adaptor：12V/1A input，left port is “+”，right port is “-” 3、5 Door Exit Switch：To connect indoor exit button 4、6 External Switch/Door Lock：To connect door lock, alarm etc. Wiegand Port: To connect wiegand card reader. - Page 4 Normal Closed, working status electric lock is closed； Power Supply Type Electric Lock type JP1 Jumper Wiring Diagram Power off, Power on, Internal External door open door open √ √ √ √ √ √ √ √ Power Supply Type Electric Lock type JP6 Jumper Wiring Diagram Power off,...
- Page 5 √ √ √ √ √ √...
-
Page 6: Installation
Installation Drill 4 holes on the wall, space is 60*120mm(DP88 space is 60*180mm), insert Plastic expansion tube, use KA4*30 screws to fix back panel on the wall. (see Picture V) Use 4 pcs M3*8 screws from the front panel to fix back panel(DP88 use 6 pcs screws).(Picture 4. -
Page 7: Configure Sip Account
Configure SIP Account To configure SIP account, Active, register name, username password , SIP server address & port, then submit. To configure Door Access Parameter In “Access- Open Door by DTMF Code” to configure DTMF code of indoor station. In “Access- Access Card” to add RFID card & password. 3. - Page 8 Door Open Configuration In “Door Phone- Basic” to configure Switch Model, and Card Reader Model.
