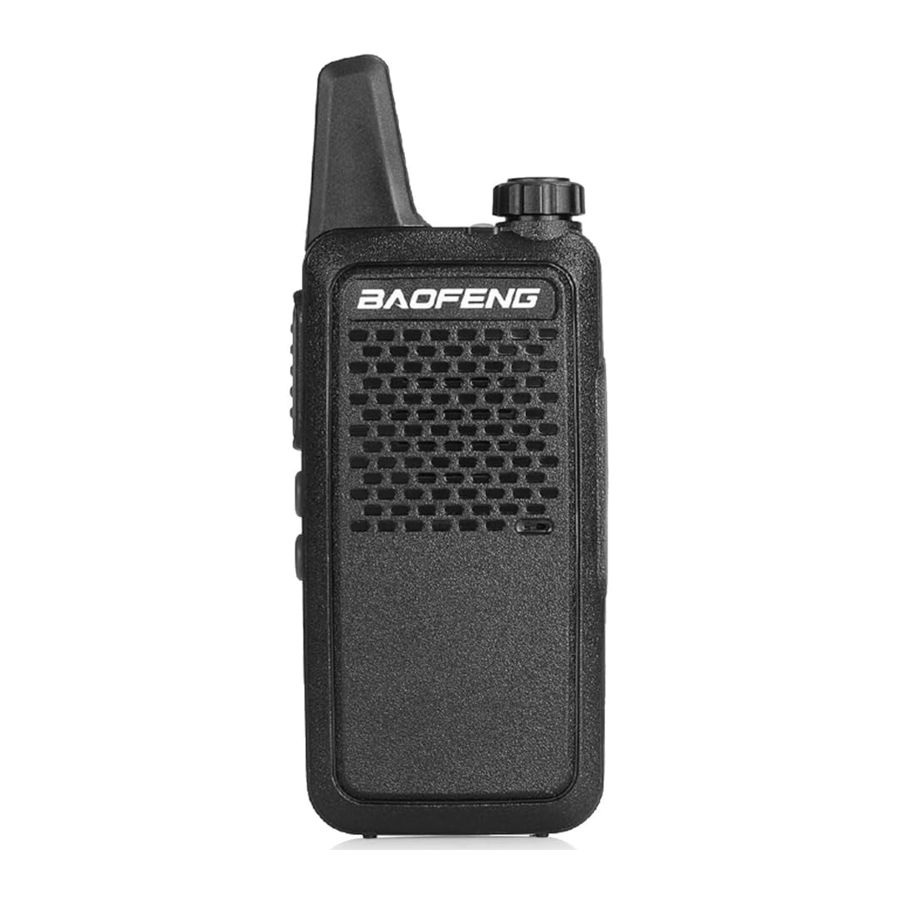

Baofeng GT-22 - Two Way Radio Manual

Getting Started

Safety Information
Please read the following brief instructions, non-compliance with these rules may cause danger or violate the law.

1. Refer to local government regulations before using this radio, improper use may violate the law,
2. Turn off the radio before getting close to flammable or explosive areas.
3. Do not charge or change the battery in flammable or explosive areas.
4. Do not use radio whose antenna is damaged, touching of the damaged antenna will cause heat injury.
5. Do not attempt to open the radio; the maintenance work should be done by technical experts only.
6. To avoid troubles caused by electromagnetic interference or electromagnetic compatibility, please turn off the radio in places where have the banner "Do not use wireless equipment", such as hospital and other healthcare facilities.
7. In the car with an airbag, do not put the radio within the scope of the airbag deployment.
8. Do not store the radio under the direct sunshine or in hot areas. When you transmit with the radio, do keep away from its antenna for 5cm at least.
9. If the radio appears smelly or smokey, please shut off its power immediately and contact your localdealer.
10. Do not transmit too long due to possible heat build-up.

What's in the Box?
We recommend you to check the items listed in the following table before discarding the package box.
Supplied accessories:
2 x Li-ion Battery
2 x Belt Clip
2 x Earpiece
2 x Wrist Strap
1 x Micro USB Cable
1 x User Manual
1 x Charger

Note
The Radio is compatible with other accessories available on: baofengradio.com

Getting Familiar

Battery Maintenance

Please use BAOFENG designated battery; other batteries can cause explosions,

Note

1. Do not short-circuit the battery terminals or dispose of in fire. Do not disassemble the battery by yourself.
2. Charge the battery between temperature 0º C and 45º C. The battery cannot be fully charged beyond this temperature range,
3. Turn off the power when you charge the radio.
4. Remove the radio from charger when charging has completed.
5. Replace the battery when operating time becomes insufficiently low.
6. Do not charge when the battery or the radio is wet. Please dry it with a cloth before charging to avoid any danger.

If conductive metals, such as jewelry, keys or chains, contact the external charging contacts, damage or personal injury may occur,

Be sure the output DC is 5V/1A, when you choose micro USB for charging. Never exceed 1.5Ai It is also suggested to use the desktop charger while possible.

Installing External Headset
Gently displace (do not remove) the micro/speaker jack cover, insert the headset into the micro/speaker jack.

Basic Operation

Quick Start Guide

1. Carefully open the box and remove the radio body, battery.
2. Install battery in the radio body.
3. Turn on power knob by twisting gently counterclockwise, The radio will respond with "Open the radio, I" or whatever channel is selected by the taller selector.
4. Select your desired channel, the radio will respond with "One, Two, etc." 5, Press the PTT and talk!

Note
The battery included with the radio generally has enough power in it to test your radio- You should fully charge the battery for optimal performance.
The GT-22 is a cost-effective FRS analog radio. It can communicate with any other brand of radio that is FRS analog, but without spending an exorbitant amount of cash! You just need to make sure they are in the same channels and frequencies, and this can be simply checked by using the software.

Squelch
The squelch level will determine the signal strength at which the radio speaker is turned on. If the squelch level is low, the background noise of the radio speakers will be higher, the corresponding communication range will be further, but the anti-interference ability will be weaker.
The default setting of the squelch level is 3, You can adjust it through the menu "Squelch Level" in the software from level O to 9, and 0 is the lowest level.

Battery Save Function
This function can be set by the software.
By turning on this function the standby time can be much longer.

1. ON: Entering into the battery saving state automatically without any operation for I O seconds.
2. OFF: Battery saving is off.

Busy Channel Lockout
You can turn on/off this function via software.

1. If the current channel does not have CTCSS/DCS, when there is a signal, TX prohibited when you press PTT.
2. If the current channel does not have CTCSS/DCS, when there is a signal which does not have CTCSS/DCS, TX prohibited when you press PTT.
3. If the current channel does not have CTCSS/DCS, when there is a signal which has CTCSS/DCS, the radio will transmit when you press PTT,

Voice Broadcast
You can turn on/off this function via software.

1. ON: When the voice switch is on, the function and channel number are voice broadcast for each channel.
2. OFF: When the voice switch is off, there will be no voice broadcast on each channel.

Low Battery Indication
When the radio is in transmitting or standby and the battery capacity reaches the pre-determined low level, a low battery alert tone will be heard. The indicating tone will be "Please charge the battery". When the low battery alert occurs it cannot transmit, please change or charge the battery.

TOT
This function can be set by the software.
This feature provides a safety switch, which limits transmission time to the programmed value. This will promote battery conservation by not allowing you to make excessively long transmissions, and in the event of a stuck PTT switch, it can prevent interference to other users as well as battery depletion,

VOX
Speak to the microphone in a normal voice to transmit, no need to press PTT switch, turn VOX on/off through the software.

1. When VOX is on in your working channel:
   Speak to the microphone directly, it will transmit automatically.
   The radio stops transmitting when there is no voice, and waits for receiving,
2. When a headset with a microphone is used:
   When VOX is on, you should VOX again for the radio to identify voice volume.
   If the microphone is sensitive enough, the radio will start transmitting.
   If the microphone is not sensitive enough, the radio cannot collect your voice. Please adjust your voice volume to guarantee smooth communications.
3. VOX gain level: When the sound level is higher than the level of VOX, VOX automatically transmits. The VOX gain level can adjust from 1 to 5 levels.
4. When a signal is received, VOX will not transmit even if the sound level is higher than the set VOX gain level,

QT/DQT (CTCSS/DCS)
QT/DQT (CTCSS/ DCS) is the sub-audible signaling, to prevent the radio from receiving unwanted signals on the same frequency. When CTCSS/DCS is set, then within the communication range, you can only receive signals from the same frequency with the same QT/DQT setting. When the QT/DQT is off, you will get all the signals from the same frequency within the communication range.

CTCSS

DCS

Computer Programming

The Radio kit does not include a programming cable. To attain a PC cable please visit https://www.baofengradio.com

8 and Windows 10
Hard Disk Space: at least 50MB of available
The minimum memory: 64M

2. Programming Cable
   1. USB programming cable - The driver needs to be installed before writing any frequencies.
      1. Find the corresponding driver of the system
      2. Click install and wait for the installation succeed.
   2. If you are using a serial cable a driver is not required. You can just plug in and use directly.
3. Software Download & Install
   1. Turn on the computer, check if your computer system meets the requirements.
   2. Download the programming software onwww.baofengradio.com
   3. Install the programming software.
4. Connect your GT-22 with Computer
   1. USB (or serial) programming cable connects with the computer end.
   2. Connect the other end of the cable with your GT-22.
   3. When both ends have been connected, turn on your radio, Make sure it has enough power during the programming procedure.
      Note
      In some cases, the cable does not fully seat in a new radio. Make sure the cable is FULLY seated before transferring data.
5. Read & Write Data via Software
   1. In the software menu, click Setup> Communication Port and select proper COM port. COM port may be located by using Windows Device Manager).


   2. In the menu, select Program> Read from Radi0> OK to read frequencies, This process takes a few seconds and progress is shown by a green progress bar in the software.


   3. Now you can edit any data and set all the functions that you want.
   4. To write your completed data file, select Program> Write to Radi0> OK.
   5. If you have to program multiple GT-22 you can repeat the above steps,
   6. If you have to program multiple walkie talkies, you can repeat the above steps.

Trouble Shooting Guide

When reading or writing frequency, I do not get a response or it reports a communication error?

1. Check your programming cable to see if it is damaged.
2. Check the connection of the programming cable and computer serial port.
3. Check to find if the GT-22 battery level is low or depleted. If it is please replace or charge the battery.
4. Check the programming software is matched with the current model.
5. Check if you turn ON your radio.
6. Check that the proper software drivers are properly installed.

When programming is done, why can't my two radios talk to each other?

1. Make sure the two radios are on the same channel.
2. Check the same channel is set to receive the same QT/DQT (CTCS / DCS).
3. Check the range of the radios (Line of Sight).

Specifications

General Specifications

Model Number	GT-22
Frequency Range	US: FRS; EU: PMR
Channel Number	16
Working Voltage	DC 3.7V
Working Temperature	-0 oc. . . +50º C
Antenna	High Gain Antenna
Antenna Impedance	50
Mode of Operation	Simplex

Receiver

Frequency Range	US: FRS; ELI: PMR
Sensitivity	< 0.16 V
Squelch Selectivity	< 0.2 V
Intermediation	65dB
Audio Power	0.5W
Audio Distortion	10%

Transmitter

Frequency Range	US: FRS; PMR
RF Power	US:O.5/2W; EU:O.1/O.5W
Spurious Emission	-60dB
Transmission Current	< 1000mA
Maximum Deviation	5KHz

Note
The specifications will be revised due to technical improvements without prior notice.
