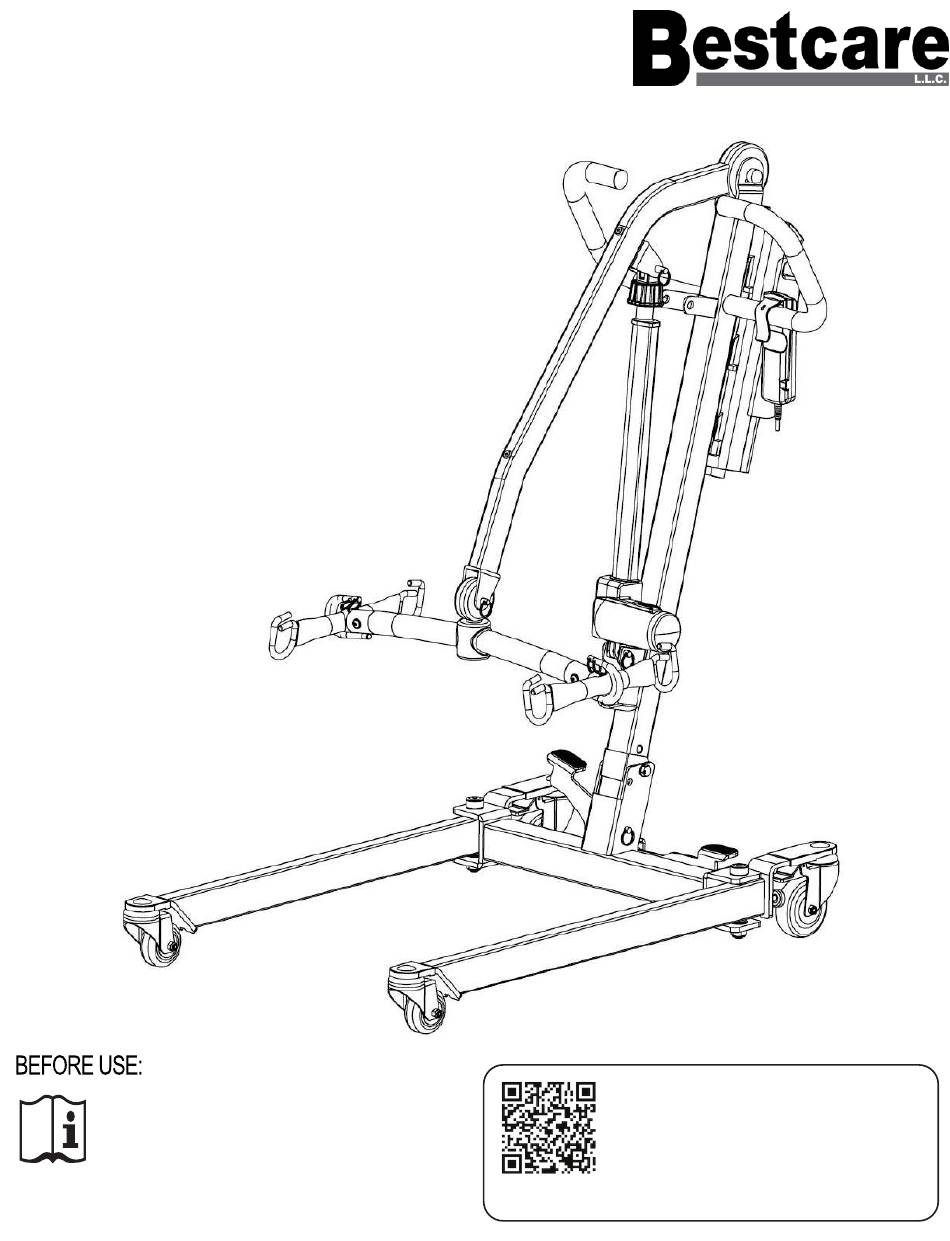

BESTLIFT®
F U L L B O D Y P A T I E N T L I F T
M o d e l : P L 4 0 0 E F
F o l d a b l e / P o r t a b l e
Ensure the product has been assembled
according to the instructions in this
manual. All operators should read and
understood the instructions for safe and
proper operation of the patient lift.
Scan the QR code or use the link to register
your product warranty online for instant
protection. Registration information can be
found on the product label.
https://www.bestcarellc.com/warranty-registration/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BESTLIFT PL400EF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bestcare BESTLIFT PL400EF

Summary of Contents for Bestcare BESTLIFT PL400EF

  • Page 1 BESTLIFT® F U L L B O D Y P A T I E N T L I F T M o d e l : P L 4 0 0 E F F o l d a b l e / P o r t a b l e Ensure the product has been assembled Scan the QR code or use the link to register your product warranty online for instant...
  • Page 2 Thank you for choosing Bestcare! To better serve you, please record the following information for future use: Supplier Name: ___________________________________________ Supplier Telephone: ________________________________________ Product Serial Number: _____________________________________ Date of Purchase: _________________________________________ Date of Manufacture ® BestLift PL400EF MAX LOAD: 400LB...

  • Page 3: Product Description

    Product Description The Bestlift PL400EF allows a patient up to 400 Lb to be lifted and transferred safely with minimal physical effort provided by the operator. This is due to it being a full electric lift . Patients can be lifted from floor to bed with ease. It uses a six point spreader bar.

  • Page 4: Definitions & Symbols

    DEFINITIONS & SYMBOLS n this manual the user refers to the patient or resident and may be used interchangeably at different times. Caregiver refers to the operator or person who is assisting with the transfer. Symbols used in this manual and on the product and their meanings: Warning! Failure to heed this warning may Do Not Bleach.

  • Page 5: Safety Instructions

    Safety Instructions This lift will provide years of service if it is properly maintained as any electric and/or mechanical equipment requires. Please pay careful attention to the information in this manual regarding the care, maintenance, and operation of the patient lift. Carefully read these instructions before assembling the lift, or attempting to lift a user with the device.
  • Page 6 WARNING! • No modification of this equipment is allowed. It is unsafe to modify the equipment from its original state. This product is deemed safe to use with only the original parts as delivered. Unauthorized use of any modified equipment may result in serious injury or death.

  • Page 7: Features And Overview

    PROPRIETARY AND CONFIDENTIAL 120-400 THE INFORMATION CONTAINED IN THIS MATERIAL: DESCRIPTION: DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: SCALE: SHEET: 1 of 1 OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED.
  • Page 8 mm (in) 1841.2 （72.5） 1237.5 （48.7） 603.7 （23.8） 526.7 （20.7） 812.8 （32.0） 771.4 （30.4） 576.6 （22.7） 336.4 （13.2） 544.1 （21.4） 258.4 （10.2） 491.0 （19.3） 121.0 （4.8） 20.3 （0.8） 1198.8 （47.2） 657.5 （25.9） 377.1 （14.8）...

  • Page 9: Specifications And Options

    SPECIFICATIONS & OPTIONS Specifications of Control Unit 110-120VAC 60Hz / 220-240VAC 50Hz Input Voltage Output Voltage 24 VDC Battery Pack 24 VDC 5AH Lift Control Handset and Panel Protection Class IP54 (Protection against dust and splash of water) Sound Level Under Full Load 16db Sound Level Under No Load 11db...
  • Page 10 INSTALLATION GUIDE Step 1: Remove all contents from the carton. Step 2: Install the stand bracket to the mast. Make sure the stand bracket's tab is inserted into the top hole. Use wrenches to tighten the hardware. Step 3: Lock the rear casters on the base and insert the mast into the base bracket by aligning the holes.
  • Page 11 Step 4: Attach the joint cover to the boom as shown. Insert the boom to the mast and secure it using the hardware. Use wrenches to tighten the hardware. Step 5: Move the boom out of the way and install lower end of actuator as shown.
  • Page 12 Step 6: Install upper end of the actuator by using the quick-release pin. Step 7: Install spreader bar into the boom as shown.
  • Page 13 Step 10: Install the control unit to the frame as shown. P E R M I S S I O N O F B E S T C A R E L L C I S P R O H I B I T E D . 1 o f 1 O R A S A W H O L E W I T H O U T T H E W R I T T E N F I N I S H :...
  • Page 14 Folding the PL400EF for Storage or Transport Step 1: Spreader bar at lowest position Step 2: Folding the boom Step 3: Folding the mast Step 4: Standing position Warning - The lift may fall and cause bodily injury if it is not secured against the wall.
  • Page 15 Operating Instructions Double check all assemblies for tightness and read operating instructions carefully prior to use. For optimum performance the lift should be transported and stored in following condition range: • -25°C to +5°C (-13°F to 41°F), and • +5°C to +35°C (41°F to 95°F) at a non-condensing relative humidity 0% to 90% •...
  • Page 16 Power Control Unit Overview Emergency Stop Button Up / Down Button Battery Pack Release Handle LCD Display Panel Battery Pack Clear Contact Plastic Cover Charger DC In Not Used Additional Battery Pack (Optional) Actuator Hand Control Charging Cradle (Optional) 1. Connect the actuator as shown. 2.
  • Page 17 Release Pressed in LCD Display Panel Signs When the emergency stop button is released, the LCD Display Panel will show one of the four signs below. • The sign will display for 5 seconds. • Then the lift will go into standby mode and the sign disappears. •...
  • Page 18 Operating Lift: Using Hand Control LED Indicator Lifting * Green = In Use * Blank = Standby Lowering Operating Lift: Using LCD Display Panel...
  • Page 19 Warning! - Battery Low and Charging is Needed If the battery needs to be charged, the LCD Display Panel will show a blinking low battery sign shown on the left either when the emergency stop button is released or when a button on the LCD Display Panel is pressed.
  • Page 20 Available slings compatible with Patient Lift Sling Type Material Sizes Mesh M, L Universal Polyester M, L, XXL Mesh S, M, L Universal with Head Support Polyester S, M, L, XXL Universal Disposable Nonwoven, Disposable M, L Universal Disposable with Head Support Nonwoven, Disposable S, M, L, XXL Sani...
  • Page 21 Sling Hook-Up Guide 2 Point S-Bar 6 Point S-Bar Hook up A Point 1 Hook up A Point 1 Hook up B Point 2 Hook up B Point 2 Insert D through C Insert D through C Hook up D Point 1 Hook up D Point 5...
  • Page 22 Transfer From Bed to Wheelchair 1. User/patient should be in the center of the bed. 2. Position user onto his/her side by rolling user towards you. 3. Roll the sling in half. The handle on the back section should face outward when the sling is fitted.

  • Page 23: Maintenance And Inspection

    The manufacturer also assumes that the The Bestcare Lift requires a minimum of service to keep it in proper working order and to assure safe operation. It operator of the lift has been properly trained, reviewed all the training material and is important that certain basic checks be performed periodically by the operator of the lift or by a qualified bio-med or maintenance staff.
  • Page 24 Cleaning and Disinfecting Cleaning of the lift • Use pH-neutral detergents only. • Remove the battery from the controller. • Clean lift surfaces, control box and hand control with a damp cloth using pH-neutral detergent. • Remove debris and hair from the casters and make sure the casters can spin and swivel freely.

  • Page 25: Troubleshooting Guide

    Troubleshooting Guide The following list of encountered problems and solutions will assist you in determining what may be causing your patient lift not to function as designed. If you have a problem occurring which is not listed below please contact your dealer or technical support for help. Do not attempt to repair or replace components or parts on your lift as this may void your warranty or cause further problems that may result in patient injury.

  • Page 26: Emergency Lowering Mechanism

    Emergency Lowering Mechanism Contact your dealer immediately if standard troubleshooting techniques do not correct the failure. Do not attempt to lift until all failure and safety issues have been resolved. In case of lift failure, please follow the procedures below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft.

  • Page 27: Warranty Policy

    Bestcare LLC Single Patient Slings are designed for limited use with one patient and may not be washed. Bestcare will replace any disposable slings found to have a manufacturing defect. Normal wear and tear will not be covered under warranty.
  • Page 28 NOTES...
  • Page 29 Bestcare LLC 2920 Pacific Drive Norcross, GA 30071 Rev. 01 www.bestcarellc.com | © 2022 Bestcare LLC...
