Configure Your SA400H/HE for First Use

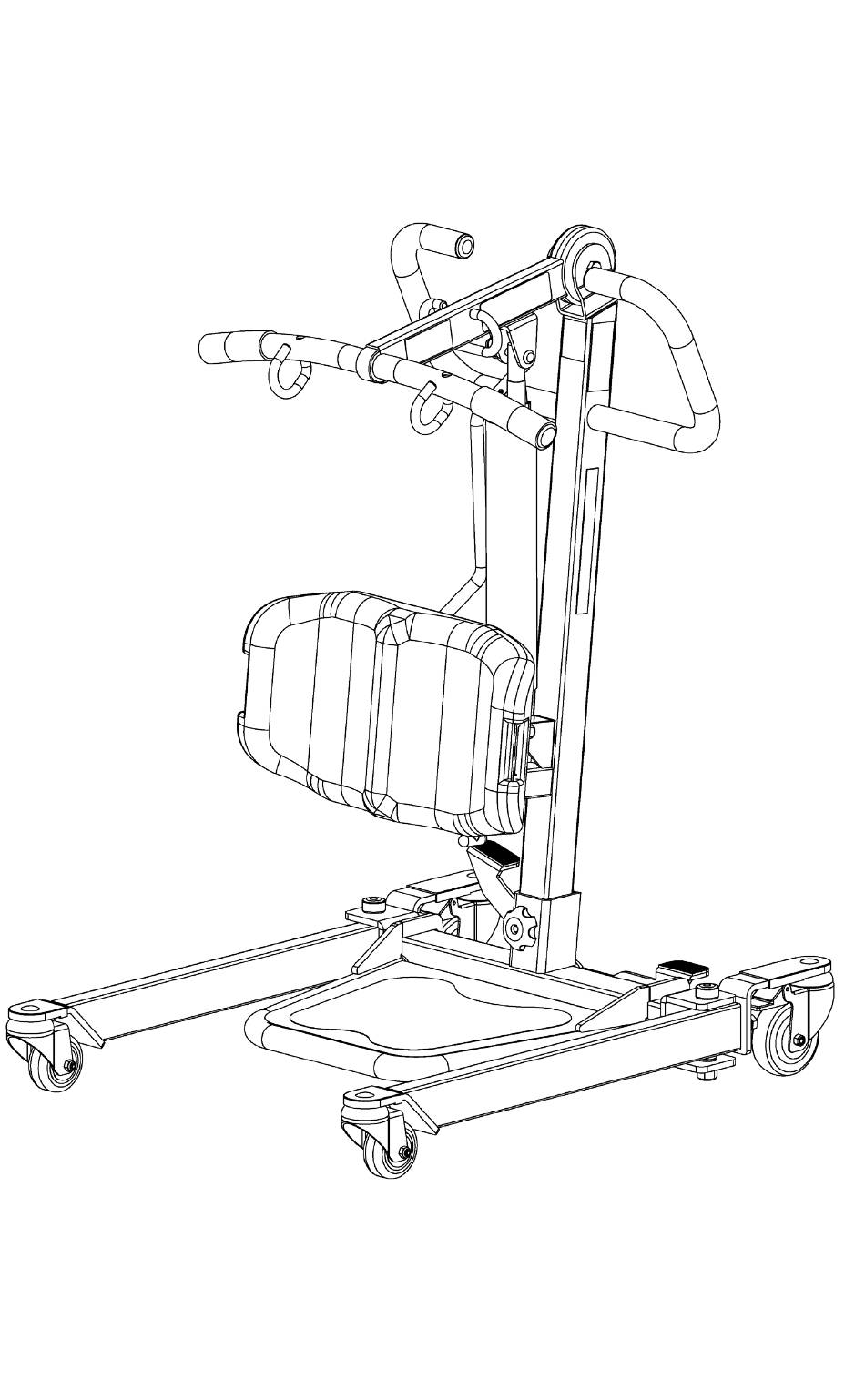

Note: Model shown is SA400H

Table of Contents

Need help?

Do you have a question about the SA400H and is the answer not in the manual?

Page 1 Configure Your SA400H/HE for First Use Note: Model shown is SA400H...
Page 2 Step 1: Remove the base from box. Step 2: Insert the mast and secure it using the bolt and threaded knob as follows. Step 3: Insert the boom to the mast and secure it using the bolt and threaded knob as follows.
Page 3 Step 4: Insert the lower end of the actuator (SA400HE) or the hydraulic pump (SA400H) to the bracket on the mast and secure it using a pin and retaining ring as follows. SA400HE SA400H Step 5: Insert the upper end of the actuator (SA400HE) or the hydraulic pump (SA400H) to the bracket on the boom and secure it using a pin and retaining ring as follows.
Page 4 Step 6: Attach the footplate to the base using the two hooks by lowering it onto the top surface of the base. Make sure the hooks are sitting in between the two small blocks protruding at the back of the base. Step 7: Install the kneepad frame with the plastic U washer to the kneepad.
