Summary of Contents for DaytonAudio OPAL1

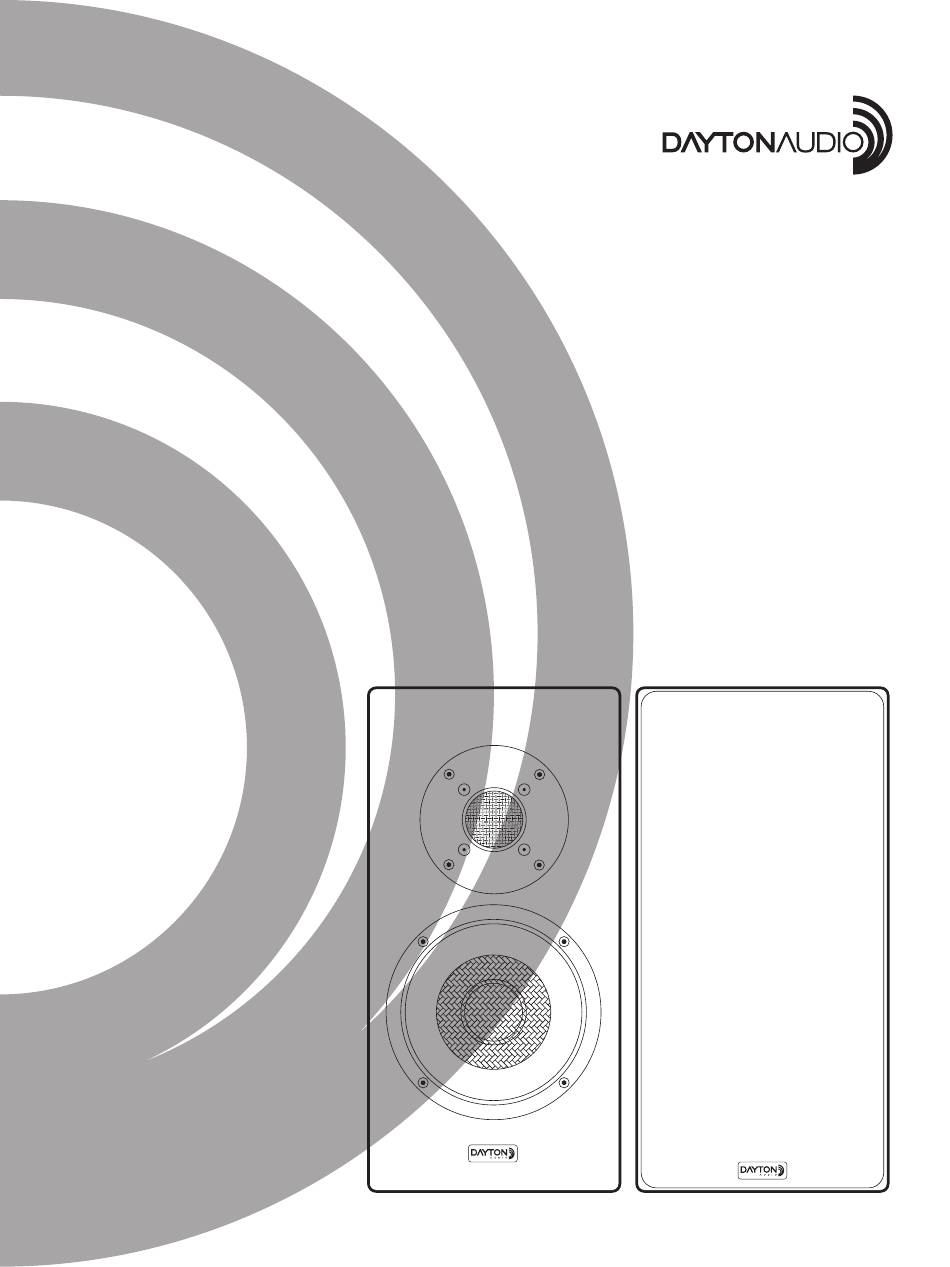

- Page 1 OPAL1 Product Manual...
-
Page 3: Table Of Contents
Welcome Thank you for purchasing the OPAL1 from Dayton Audio. The compact design of the OPAL1 comes from close collaboration between our team of engineers, creative designers, and loudspeaker enthusiasts to showcase the true power and extreme versatility of our unique extended range subwoofers with patented MMAG™ motors. -

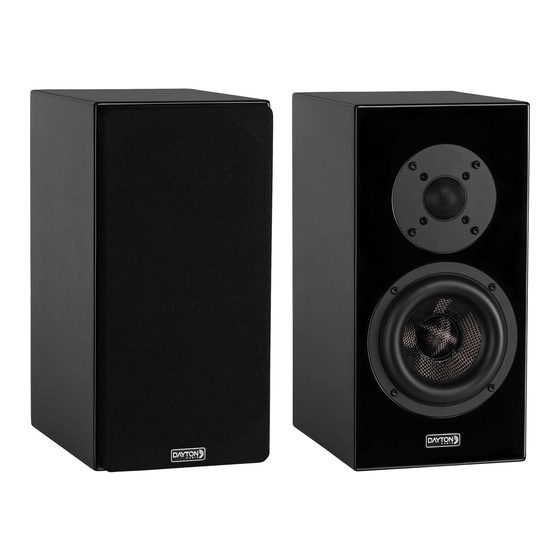

Page 4: About Your Speakers
EPIQUE woofers. The rear of the OPAL1 is just as impressive, housing dual 5.5” passive radiators from the EPIQUE series. These not only augment the low-end response but also maintain a cohesive visual design. With the assistance of these passive radiators, the OPAL1 achieves a remarkable low frequency response, approaching the limits of human hearing. -
Page 5: Placement
Note: Keep in mind that every room has its own acoustic properties, and small adjustments can make a significant difference in sound quality. Some experimentation may be necessary to find the optimal placement for your specific environment. WALL 1-2 FEET SPEAKER SPEAKER 30-60 CM LISTENING POSITION 18"-24" 450-600 MM OPAL1 DAYTONAUDIO... -
Page 6: Hooking Up
Repeat for the right channel. The binding posts on the OPAL1 are capable of accepting banana plugs, spade connectors, and bare wire up to 8 AWG. Ensure that there is no direct contact between exposed wires from any of the connections and other terminals. Such contact could lead to a short circuit and potential damage to your equipment. -
Page 7: Specifications
Specifications Model ..................................OPAL1 Frequency Response .....................32-20,000 Hz, -3db, half space Sensitivity............................78.5 dB, 2.83 V/1M Potential Output ........................... 102 dB @ rated power Recommended Amplifier Power ....................75-200 Watts / Channel Nominal Impedance..............................8Ω Minimum Impedance ........................... 4.3Ω @ 4,400 Hz Transducers Low Frequency ..............1 x 5-1/4”... - Page 8 5-Year Limited Warranty See daytonaudio.com for details daytonaudio.com 705 Pleasant Valley Dr. Springboro, OH 45066 tel + 937.743.8248 info@daytonaudio.com Dayton Audio Last Revised: 12/1/2023 ®...
