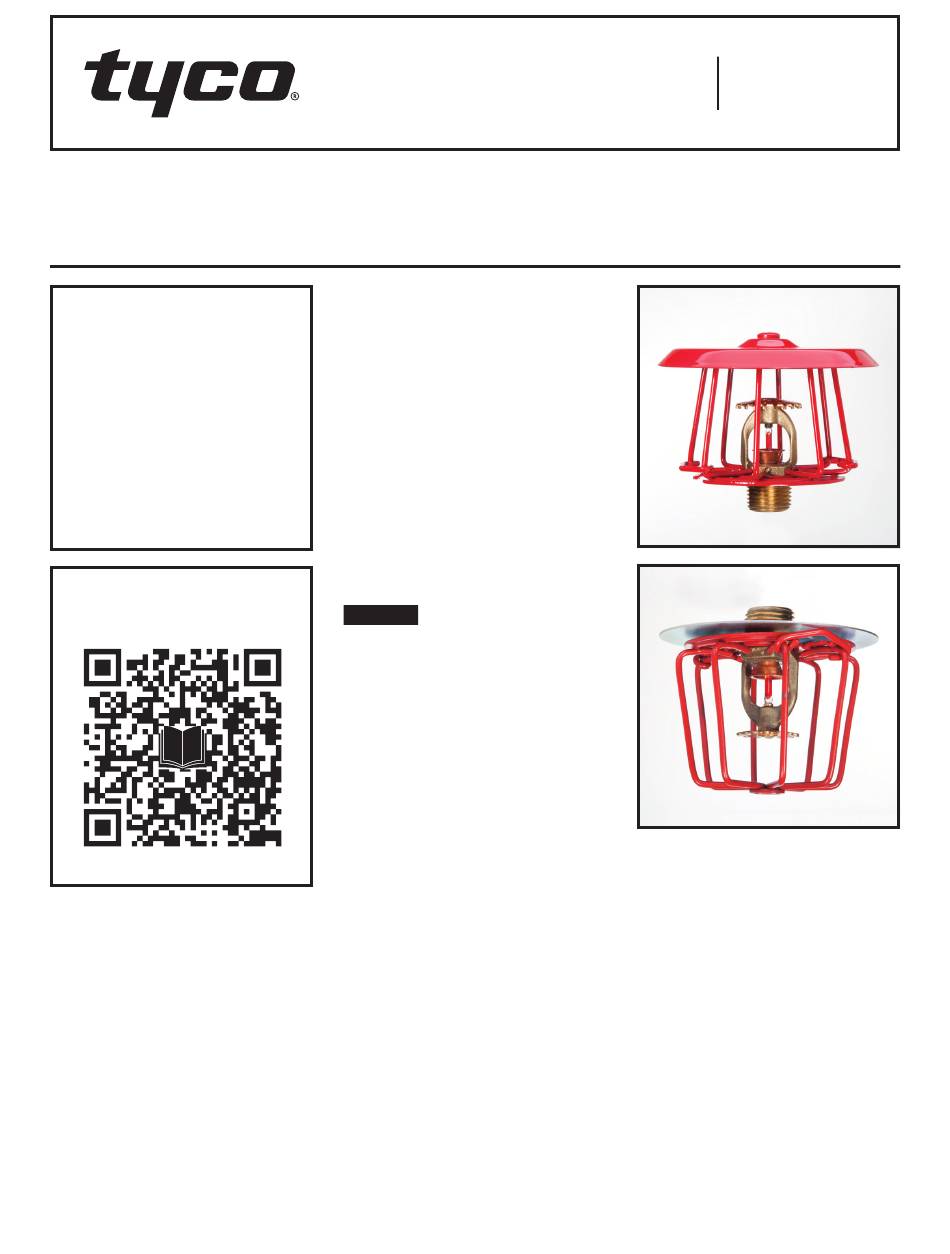

Series TY-FRB — 5.6 K-factor
Upright and Pendent Intermediate Level Sprinklers
Quick Response
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp357
General
Description
The Series TY-FRB, 5.6 K-factor
Upright and Pendent Intermediate
Level Sprinklers described in this data
sheet are automatic sprinklers of the
"quick response" 3 mm frangible bulb
type. They are "standard spray" sprin-
klers intended for use in fire sprinkler
systems designed in accordance with
the standard installation rules rec-
ognized by the applicable Listing or
Approval agency (e.g., UL Listing is
based on NFPA requirements). Both
Page 1 of 6
the Upright and Pendent Sprinklers
produce a hemispherical water distri-
bution pattern below the deflector.
Intermediate Level Sprinklers are pri-
marily designed for use in rack storage
sprinkler systems where their thermally
sensitive elements must be shielded
from the water spray of higher ele-
vation sprinklers that could operate
earlier during a fire. Intermediate Level
Sprinklers are also used in other appli-
cations such as beneath open gridded
catwalks.
For additional Series TY-FRB Sprinkler
information, see Technical Data Sheet
TFP172. For additional guard and shield
information, see Technical Data Sheet
TFP780.
NOTICE
The Series T Y-FRB
described herein must be installed
and maintained in compliance with
this document, as well as with the
applicable standards of the National
Fire Protection Association, in addition
to the standards of any other authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condi-
tion. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers
TY313 . . . . . . . . . Upright 5.6K, 1/2 in. NPT
TY323 . . . . . . . . Pendent 5.6K, 1/2 in. NPT
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
Note: For complete approval information,
see Table A.
AUGUST 2022
Worldwide
Contacts
Sprinklers
Maximum Working Pressure
175 psi (12,1 bar)
250 psi (17,2 bar)*
* The Maximum Working Pressure of 250 psi (17,2
bar) only applies to the listing by Underwriters
Laboratory.
Discharge Coefficient
K=5.6 gpm/psi
Temperature Ratings
See Table A
Finishes
TY-FRB Sprinkler . . . . . . . . . . . . . . . . . . . . Brass
G1/S1 Guard with Shield . . . . . . . . . Red or Zinc
G1 Guard . . . . . . . . . . . . . . . . . . . . . Red or Zinc
S2 Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . Zinc
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Button. . . . . . . . . . . . . . . . . . . . . . Brass/Copper
Sealing Assembly . . Stainless Steel w/TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . Bronze
Deflector. . . . . . . . . . . . . . . . . . . . . . . . . . Copper
G1 and G1/S1 Guard . . . Painted or Plated Steel
S2 Shield . . . . . . . . . . . . . . . . . . . . . Plated Steel
www.tyco-fire.com
½ (80,6 Lpm/bar ½ )
TFP357
