Leviton black & white 7582 Installation Instructions

black & white
WARNINGS:
• TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• TO AVOID FIRE, SHOCK, OR DEATH, REVIEW PREMISES CAREFULLY AND DO NOT USE IF THIS SLOT OR BLADE CONFIGURATION (DESIGN) IS
ALREADY IN A CIRCUIT HAVING A RATING DIFFERING FROM THE RATING OF THIS DEVICE.
• THIS PRODUCT IS FOR REPLACEMENT USE ONLY! EXTREME CAUTION SHOULD BE TAKEN TO CONNECT EXISTING WIRES TO THE EXACT SAME BLADE
OR SLOT SIZE AND LOCATION AS THE DEVICE BEING REPLACED. FAILURE TO DO SO CAN RESULT IN FIRE, SHOCK, OR DEATH.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
CAUTION:
• Use this device with copper or copper-clad wire only.
WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
NOTES:
• Terminal screws accept up to #10 AWG copper or copper-clad wire.
• Refer to NEC tables (in U.S.A.), article 400, for proper wire type and size for your application and load.
1. To Side Wire (15A Only): Remove wire insulation per strip gauge on back of device or about 5/8 in. (1.6 cm.). Loop wires clockwise 3/4 turn around terminal
screws. Tighten terminal screws over wire loops using the appropriate torque value, which can be found at Leviton.com/torquevalue.
2. To Back Wire (20A and 30A Only): Remove wire insulation per strip gauge on back of device or about 1/2 in. (1.3 cm.). Insert straight wires into holes next to
appropriate terminal screws. Tighten terminal screws using the appropriate torque value, which can be found at Leviton.com/torquevalue.
3. Mount device with long mounting screws. Attach wallplate.
4. Restore power at circuit breaker or fuse. Installation is complete.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada ULC to the attention of the Quality Assurance
Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and
workmanship under normal and proper use during the lifetime of the product. Leviton's only obligation is to correct such defects by repair or replacement, at its option. For details
visit www.leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this
product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or
not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose. Leviton
is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or
delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
15A, 20A, and 30A (Non-NEMA)

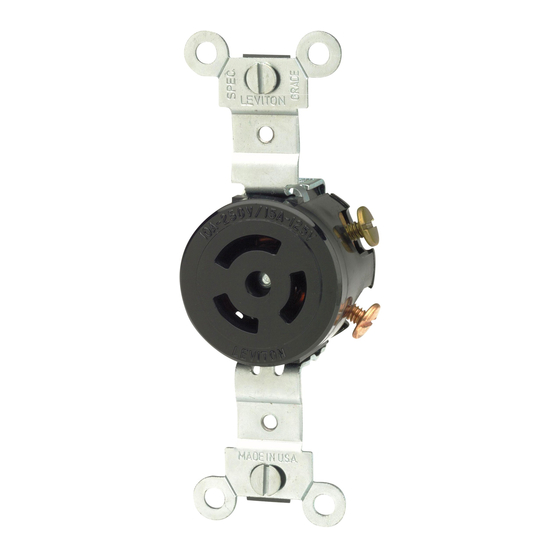

Locking Single Flush Receptacles
Cat. Nos. 7582, 7410, 7310, 3520, 3430, 3330
INSTALLATION INSTRUCTIONS
LIMITED LIFETIME WARRANTY AND EXCLUSIONS
For Technical Assistance Call: 1-800-824-3005 (USA Only) or 1-800-405-5320 (Canada Only) www.leviton.com
