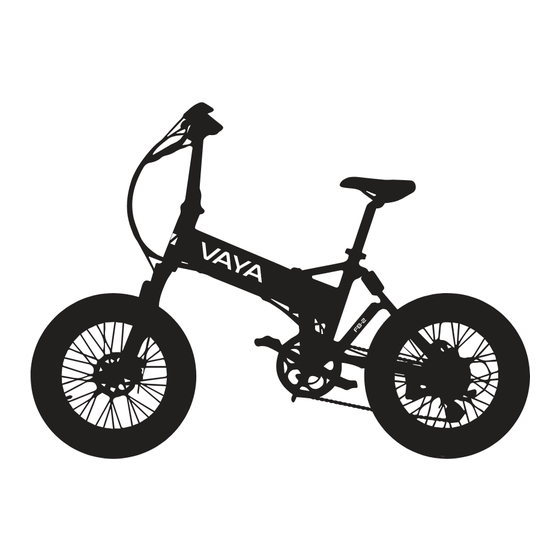

FB-2 E-BIKE
USER GUIDE
PO-1697

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FB-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vaya FB-2

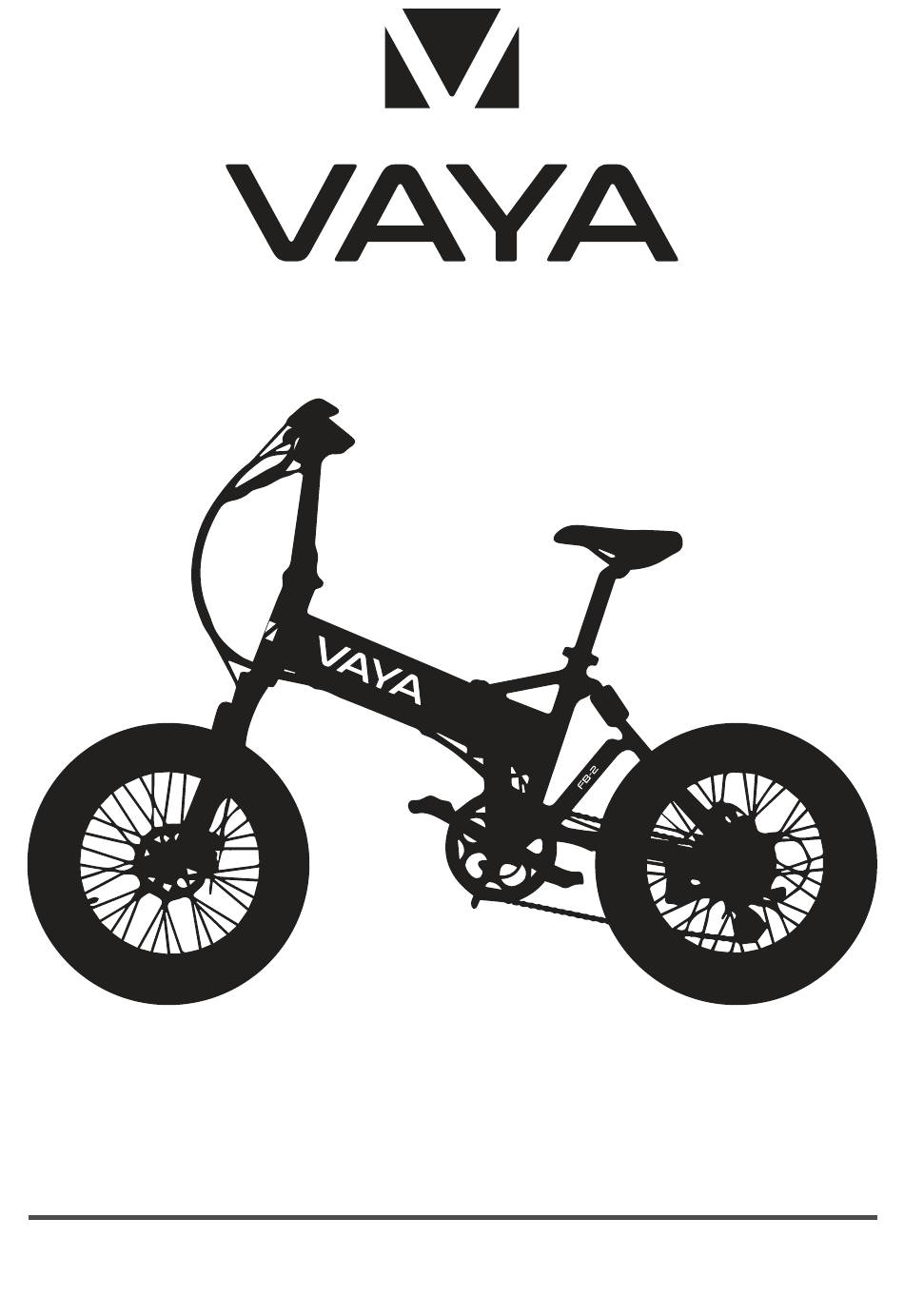

  • Page 1 FB-2 E-BIKE USER GUIDE PO-1697...
  • Page 2: Table Of Contents

    INSPECTION, MAINTENANCE, AND STORAGE ................21 INSPECTING YOUR E-BIKE ........................... 21 CLEANING YOUR E-BIKE ............................. 22 CHAIN MAINTENANCE ............................22 STORING YOUR E-BIKE ............................22 ADJUSTING THE REAR DERAILLEUR ......................22 HYDRAULIC BRAKES ............................24 NOISE FROM BRAKES ............................24 ELCARE NORDIC: service.vaya@elcare.com...
  • Page 3 INSPECTING THE WHEEL BEARINGS ......................24 REMOVING A WHEEL............................24 CHANGING AN INNER TUBE ..........................25 REPLACING THE BRAKE PADS .......................... 25 E-BIKE SPECIFICATIONS ............................. 25 RECOMMENDED TORQUES ......................26 DISPLAY ERROR MESSAGE ......................26 DISPOSAL ............................. 27 ELCARE NORDIC: service.vaya@elcare.com...
  • Page 4: General

    Before you use the e-bike for the 昀椀rst time, please read the USER MANUAL thoroughly and follow the instructions and warnings to ensure your safety and the safety of others. It is recommended to keep the instruction manual for future reference. For further information, visit www.vayabike.com ELCARE NORDIC: service.vaya@elcare.com...
  • Page 5: Warning

    2. Do not operate the e-bike while under the in昀氀uence of drugs and/or alcohol. 3. Brakes can get hot after use: do not touch them after braking. 4. If the handlebar grips become damaged and expose the metal ends of the handlebar, these ELCARE NORDIC: service.vaya@elcare.com...
  • Page 6: Note

    These parts as considered wear parts and can be ordered at www.vayabike.com See the service folder for more information. BOX CONTENT E-bike 2 x keys Bag with tools Charger Manual Service folder ELCARE NORDIC: service.vaya@elcare.com...
  • Page 7: Assembly

    WARNING: Be sure that the wheel is correctly assembled. A loose wheel can lead to injuries or death. SEAT ASSEMBLY Loosen the seat holder. Insert the seat post into the bike and set it to the desired height. Lock the seat holder. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 8: Handlebar Assembly

    2 screws. Check that the screws are securely mounted. See the section “Recommended torques” for correct tightening of the screws. WARNING: Secure the handlebar screws correctly before using the bike for the 昀椀rst time. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 9: Pedal Assembly

    (shown in the photo on the right). Tighten the screw under the frame folding lock. NOTE: It is important that the frame folding mechanism is adjusted correctly. If in doubt, contact a bike mechanic or contact after-sales support. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 10: Folding Instructions

    2. Fold the pedals. Push them in and fold them up or down. 3. Loosen the seat holder and push the seat post down to the bottom. 4. Open the quick release of the stem and move it all the way down. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 11 5. Open the frame folding device and fold the bike. 6. Open the folding device of the head tube and fold it down. UNFOLDING THE BIKE Raise the head tube and lock it. Remember to also turn the second locking device of the tube lock. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 12 4. Adjust the seat, handlebar, and stem to user preference. WARNING: After unfolding the bike, make sure to check all the safety locks. Please pay extra attention to closing the safety lock of the frame and the head tube to ensure safety. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 13: Lcd Display

    ODO: Total accumulated mileage riding the e-bike. MAX. SPEED: Maximum achieved speed. AVG. SPEED: Average speed while using the bike. TIME: Shows how long the e-bike has been turned on. • Trip is always shown on the display: ELCARE NORDIC: service.vaya@elcare.com...
  • Page 14: Settings

    WARNING: Be aware that if set low, the crank only needs to be turned slightly to activate the motor. The bike is very heavy, and it can result in a dangerous situation if the motor is accidently activated. • Throttle speed: Set throttle speed. • BACK: Return to the main menu. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 15: Information

    PEDAL-ASSIST MODE Step on one of the two pedals in any PAS gear, and the motor will start according to your setting to provide you with power output. Once you stop pedalling, the pedal assist will stop automatically. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 16: Pedal Mode

    The right hand brake is for braking the rear wheel. The left hand brake is for braking the front wheel. TIGHTENING OF FASTENERS Be sure to tighten the adjustment screws, so there is no risk of the seat sliding down, the ELCARE NORDIC: service.vaya@elcare.com...
  • Page 17: Suspension Adjustment

    Check that all locks are securely tightened, and all secondary locking mechanisms are secured. WARNING: Perform a brake check every time before using the bike. Incorrectly installed, worn, damaged, or dirty brakes can greatly affect the brake distance and result in serious personal injuries and even death. LOCK ELCARE NORDIC: service.vaya@elcare.com...
  • Page 18: Weight And Speed Limits

    This section is intended to provide you with basic information about your battery and charger. Please read this section carefully to ensure your safety. For user safety and to prolong the life of your battery, as well as to improve battery performance, follow the instructions as stated. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 19: Removing The Battery

    Charging temperature: 0 - 45 °C Storage time: 2 months Storage temperature: 15 - 35 °C Storage humidity: 50 (±25) % The charger and battery supplied must only be used together and are not suitable for other equipment. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 20: Battery Storage

    Do not store the battery without charging it. Charge the battery at least every 2 months. Only use the supplied charger to charge the battery. Do not use the charger if the charger or the charger cable is damaged. Contact support for a replacement. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 21: Charger Specifications

    Check the brake pads for wear. If they are worn (approx. 1 mm left), replace the brake pads immediately. See service folder for more information. See the photo below, where screws must be checked and secured after each ride. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 22: Cleaning Your E-Bike

    When lifting the rear of the bike and turning the pedals by hand, use the gear change to select the lowest gear. Use a suitable screwdriver to turn the screw marked “L” (low gear) to adjust the rear derailleur until it is vertically aligned below the lowest gear. See the photo above. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 23 Rotate the adjuster (C) counter-clockwise if there is a problem going from the highest to the lowest gear. Turn the adjuster about a quarter turn at a time and then change the gears to see if the problem is 昀椀xed. Repeat step 3 if the problem persists. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 24: Hydraulic Brakes

    Release the wheel bolts on each side of the wheel. Note: Pay attention to the position of the washers when you remove them. Mount the wheel and washers in the same order and orientation as you remove them. ELCARE NORDIC: service.vaya@elcare.com...
  • Page 25: Changing An Inner Tube

    Wheel size: 20 x 4 inch Max compatible wheel size: 20 x 4 inch Protection rating: IP54 Number of bike gears: 8 Number of assist mode gears: 5 Max pedal assist speed: 0 - 25 km/h Operating range: Up to 120 km ELCARE NORDIC: service.vaya@elcare.com...
  • Page 26: Recommended Torques

    CODE FAULT Power failure Hand throttle fault Motor fault Motor fault Brake fault Communication fault Declaration of Conformity: (See provided document). Products marked with this symbol comply with all applicable community regulations of the European Economic Area ELCARE NORDIC: service.vaya@elcare.com...
  • Page 27: Disposal

    Contact your Local Authority Waste Disposal Department, as they will be able to provide details of the recycling options available in your area. Imported by: Vaya Nordic ApS, Pioner Alle 16D, 9200 Aalborg SV, Denmark. Date of issue: 03/2023 Version: PO-1697 ELCARE NORDIC: service.vaya@elcare.com...
  • Page 28 SE: +46855121787 NO: +46855121787 FI: +358942455515 service.vaya@elcare.com For further information and updates visit www.vayabike.com Warning: Does not cover improper use of the product or failure to follow the warnings and operating instructions in this instruction manual. There is also limited coverage on wearing parts such as wheels, battery, brakes and grips.
