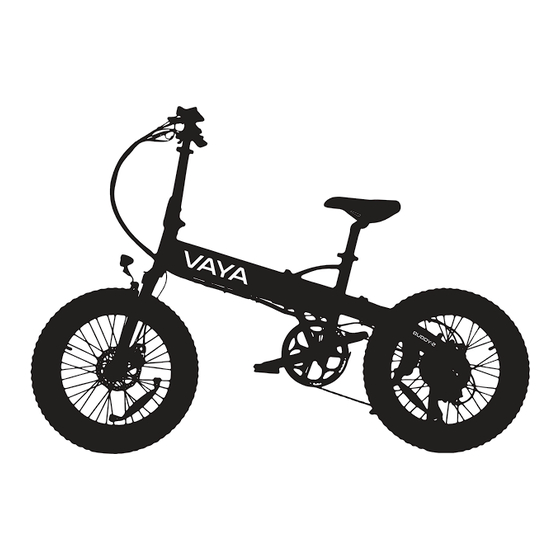

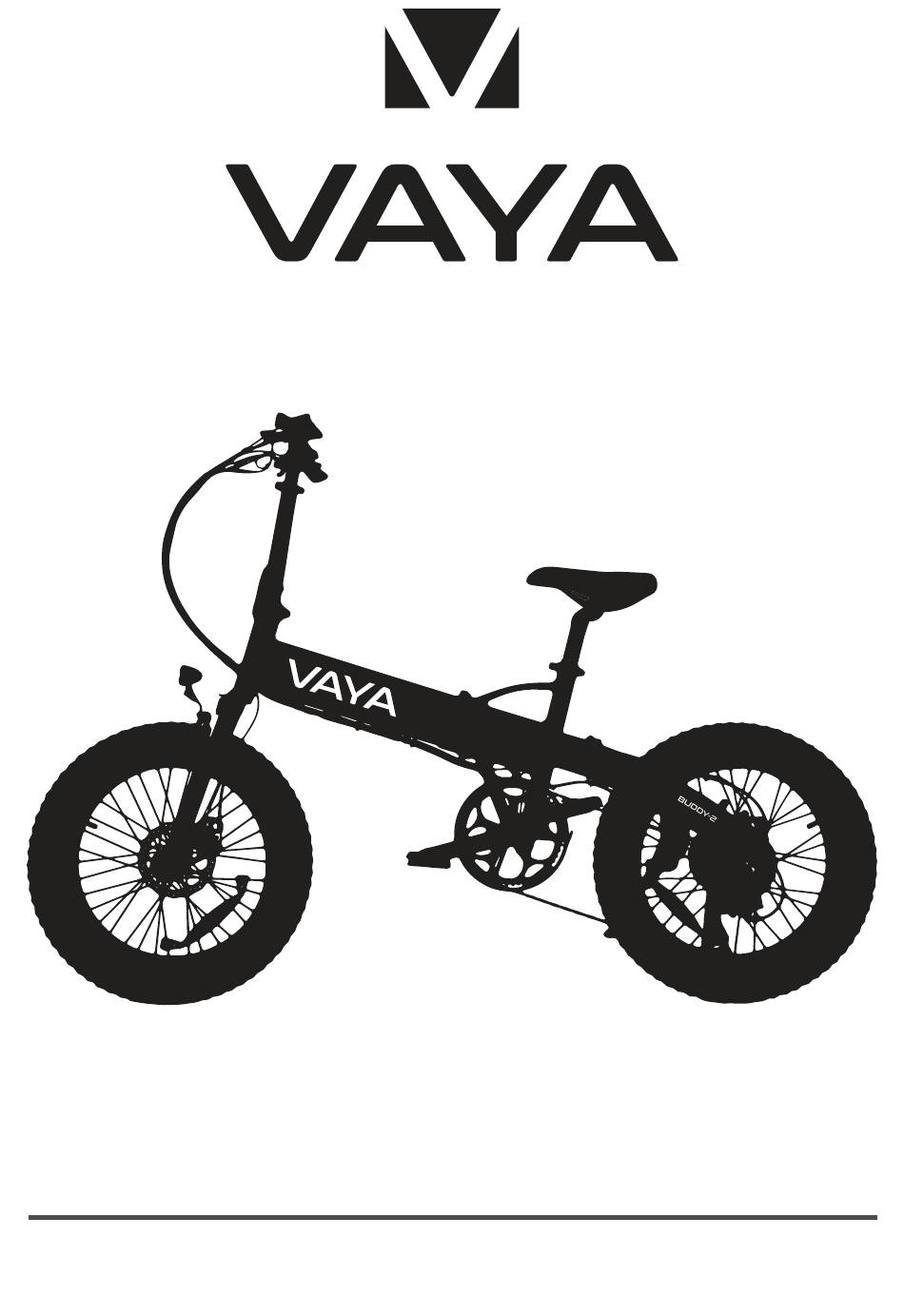

- Page 1 BUDDY-2 E-BIKE USER GUIDE PO-1697...
-
Page 2: Table Of Contents
INSPECTION, MAINTENANCE, AND STORAGE ................20 INSPECTING YOUR E-BIKE ..........................20 CLEANING YOUR E-BIKE ............................21 CHAIN MAINTENANCE ............................21 STORING YOUR E-BIKE ............................21 ADJUSTING THE REAR DERAILLEUR ......................22 MECHANICAL BRAKES ............................23 FINE-TUNE THE BRAKE CABLE TENSION ...................... 24 ELCARE NORDIC: service.vaya@elcare.com... - Page 3 INSPECTING THE WHEEL BEARINGS ......................24 REMOVING A WHEEL............................25 CHANGING AN INNER TUBE ..........................25 REPLACING THE BRAKE PADS .......................... 25 E-BIKE SPECIFICATIONS ............................. 26 RECOMMENDED TORQUES ......................26 DISPLAY ERROR MESSAGE ......................27 DISPOSAL ............................. 27 ELCARE NORDIC: service.vaya@elcare.com...
-
Page 4: General
Before you use the e-bike for the 昀椀rst time, please read the USER MANUAL thoroughly and follow the instructions and warnings to ensure your safety and the safety of others. It is recommended to keep the instruction manual for future reference. For further information visit www.vayabike.com ELCARE NORDIC: service.vaya@elcare.com... -
Page 5: Warning
2. Do not operate the e-bike while under the in昀氀uence of drugs and/or alcohol. 3. Brakes can get hot after use: do not touch them after braking. 4. If the handlebar grips become damaged and expose the metal ends of the handlebar, these ELCARE NORDIC: service.vaya@elcare.com... -
Page 6: Note
These parts as considered wear parts and can be ordered at www.vayabike.com See the service folder for more information. BOX CONTENT E-bike 2 x keys Bag with tools Charger Manual Service folder ELCARE NORDIC: service.vaya@elcare.com... -
Page 7: Assembly
Do not use the bike if there is something that is not working correctly during assembly. Contact after-sales support. WARNING: Be sure that the wheel is correctly assembled. A loose wheel can lead to injuries or death. ELCARE NORDIC: service.vaya@elcare.com... -
Page 8: Seat Assembly
2 screws. Check that the screws are securely mounted. See the section “Recommended torques” for correct tightening of the screws. WARNING: Secure the handlebar screws correctly before using the bike for the 昀椀rst time. ELCARE NORDIC: service.vaya@elcare.com... -
Page 9: Pedal Assembly
(shown in the photo on the right). Tighten the screw under the frame folding lock. NOTE: It is important that the frame folding mechanism is adjusted correctly. If in doubt, contact a bike mechanic or contact after-sales support. ELCARE NORDIC: service.vaya@elcare.com... -
Page 10: Folding Instructions
2. Fold the pedals. Push them in and fold them up or down. 3. Loosen the seat holder and push the seat post down to the bottom. 4. Open the quick release of the stem and move it all the way down. ELCARE NORDIC: service.vaya@elcare.com... -
Page 11: Unfolding The Bike
5. Open the frame folding device and fold the bike. 6. Open the folding device of the head tube and fold it down. Unfolding the bike Raise the head tube and lock it. Remember to also turn the second locking device of the tube lock. ELCARE NORDIC: service.vaya@elcare.com... - Page 12 2. Unfold the bike and lock the frame folding device. 3. Unfold the pedals. ELCARE NORDIC: service.vaya@elcare.com...
-
Page 13: Lcd Display
• Press the button to switch between high beam and low beam on front light. • Press and hold the – button to activate the walk assist. It will start after 2 seconds. ELCARE NORDIC: service.vaya@elcare.com... -
Page 14: Settings
WARNING: Be aware that if set low, the crank only needs to be turned slightly to activate the motor. The bike is very heavy, and it can result in a dangerous situation if the motor is accidently activated. ELCARE NORDIC: service.vaya@elcare.com... -
Page 15: Password
Pedal-assist mode Step on one of the two pedals in any PAS gear, and the motor will start according to your setting to provide you with power output. Once you stop pedalling, the pedal assist will stop automatically. ELCARE NORDIC: service.vaya@elcare.com... -
Page 16: Pedal Mode
The left hand brake is for braking the front wheel. Tightening of fasteners Be sure to tighten the adjustment screws, so there is no risk of the seat sliding down, the stem sliding down, or the handlebar turning or falling off while riding. ELCARE NORDIC: service.vaya@elcare.com... -
Page 17: Suspension Adjustment
Remember to take out the key before attempting to removing the battery. Lock bike: Turn the key to the centre position. The bike is now locked and the bike cannot be powered on. The key can be removed. ELCARE NORDIC: service.vaya@elcare.com... -
Page 18: Weight And Speed Limits
Removing the battery Insert the key into the lock and unlock the battery lock. Remove the key. Open the frame lock and fold the bike. Remove the battery. Unfold the bike again. ELCARE NORDIC: service.vaya@elcare.com... -
Page 19: Inserting The Battery
Step 2: Flick the power switch on the charger to the off position. Step 3: Check that the charging port is clean and dry. Step 4: Connect the charger to the bike’s charging port. Step 5: Connect the charger to the mains power. ELCARE NORDIC: service.vaya@elcare.com... -
Page 20: Safety Tips For Charging
The rims are subject to wear, which must be checked to ensure safety. Check the brake pads for wear. If they are worn (approx. 1 mm left), replace the brake pads immediately. See service folder for more information. ELCARE NORDIC: service.vaya@elcare.com... -
Page 21: Cleaning Your E-Bike
Store your e-bike indoors. If the bike is wet, dry it before storage. Store your battery indoors in a dry place and suitable temperature range. Do not store the battery in direct sunlight or in a car. High temperatures can cause damage and decrease the life of the battery. ELCARE NORDIC: service.vaya@elcare.com... -
Page 22: Adjusting The Rear Derailleur
When lifting the rear of the bike and turning the pedals by hand, use the gear change to select the highest gear. Use a suitable screwdriver to turn the screw marked “H” (high gear) to adjust the rear derailleur until it is vertically aligned below the highest gear. See the photo above. ELCARE NORDIC: service.vaya@elcare.com... -
Page 23: Mechanical Brakes
If the brakes are too tight or too loose, then loosen the bolt that holds the brake cable in position. To tighten the cable tension: Decrease the length of the brake cable. To loosen the cable tension: Increase the length of the brake cable. ELCARE NORDIC: service.vaya@elcare.com... -
Page 24: Fine-Tune The Brake Cable Tension
Special tools are required for repair. We recommend that the bearings be replaced by a quali昀椀ed repair technician. Contact your local retailer for more information on wheel repairs. ELCARE NORDIC: service.vaya@elcare.com... -
Page 25: Removing A Wheel
Replace the tyre in the rim, one small section at a time. For the last part, use the tyre levers to re昀椀t the last section. Replacing the brake pads See our webpage on how to replace brake pads: www.vayabike.com ELCARE NORDIC: service.vaya@elcare.com... -
Page 26: E-Bike Specifications
35 - 40 Nm Gear change holder screw M5 5 - 7 Nm Brake disc screw M5 20 - 22 Nm Support base 10 - 12 Nm Battery connecting screw 5 - 7 Nm Handbrake 5 - 8 Nm ELCARE NORDIC: service.vaya@elcare.com... -
Page 27: Display Error Message
Contact your Local Authority Waste Disposal Department, as they will be able to provide details of the recycling options available in your area. Imported by: Vaya Nordic ApS, Pioner Alle 16D, 9200 Aalborg SV, Denmark. Date of issue: 02/2023 Version: PO-1697 ELCARE NORDIC: service.vaya@elcare.com... - Page 28 SE: +46855121787 NO: +46855121787 FI: +358942455515 service.vaya@elcare.com For further information and updates visit www.vayabike.com Warning: Does not cover improper use of the product or failure to follow the warnings and operating instructions in this instruction manual. There is also limited coverage on wearing parts such as wheels, battery, brakes and grips.
