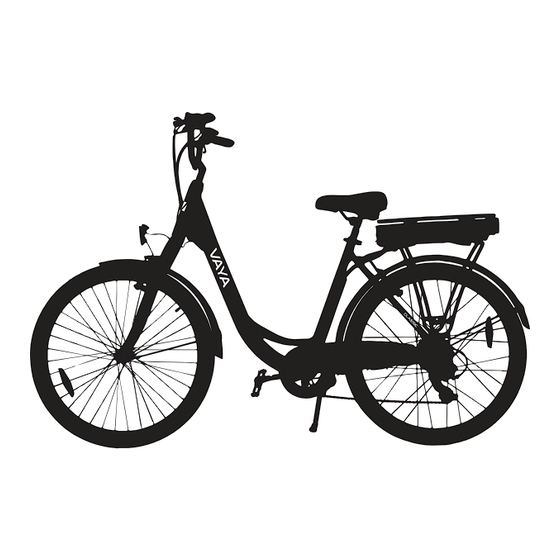

- Page 1 CLASSIC E-BIKE USER GUIDE PO-1697...
-
Page 3: Table Of Contents
INSPECTING THE WHEEL BEARINGS ....................... 17 REMOVING THE WHEELS ............................. 18 V-BRAKE QUICK RELEASE ........................... 18 CHANGING AN INNER TUBE ..........................18 REPLACING BRAKE PADS ............................19 E-BIKE SPECIFICATIONS ........................19 RECOMMENDED TIGHTENING INFORMATION ................20 DISPLAY ERRORS ..........................20 DISPOSAL .............................. 21 ELCARE NORDIC: service.vaya@elcare.com... -
Page 4: Welcome
Before you use the E-Bike for the 昀椀rst time, please read the USER MANUAL thoroughly and follow the instructions and warnings to ensure your own safety and the safety of others. It is recommended to keep the instruction manual for future reference. For further information and updates, visit www.vayabike.com. ELCARE NORDIC: service.vaya@elcare.com... -
Page 5: Important Safety Information
12. Do not abuse your E-Bike, as doing so can damage your unit and cause failure to the operating system which can lead to injury. 13. Do not ride the E-Bike while wearing loose or torn clothing. ELCARE NORDIC: service.vaya@elcare.com... - Page 6 There is also a limited warranty on wearable parts such as tires, battery, motor, chain, cassette, brakes, and handles. These parts are considered wearable parts and can be ordered at www.vayabike.com. See the service folder for more information. ELCARE NORDIC: service.vaya@elcare.com...
-
Page 7: Box Content
4. POWER GEAR ADJUSTMENT Shows the pedal assistance gear. Goes from 0-5. Shows that the headlight is turned on. 6. STATUS DISPLAY AREA Provides information of various bike statuses. Motor failure. For problems with the motor, contact after-sales support. ELCARE NORDIC: service.vaya@elcare.com... -
Page 8: Operation Principles
P15: No function. · P16: Reset mileage date. When in this setting, press and hold the + button for 5 seconds to reset. · P17: No function. · P18: No function. · P19: No function. · P20: No function. ELCARE NORDIC: service.vaya@elcare.com... -
Page 9: Gear Shifter
WARNING: Be careful not to move the seat bar over the minimum settings. See seat bar markings. ||||||||||||| Seat Adjustment You can release the bolt under the seat to adjust the seat angle or horizontal position. ELCARE NORDIC: service.vaya@elcare.com... -
Page 10: Stem Height
Check that the front stem is securely fastened. If there are signs of it loosening, please tighten it. WARNING: Perform a brake check every time before using the bike. Incorrectly installed, worn, damaged, or dirty brakes can greatly affect the brake distance and result in serious personal injuries, and even death. ELCARE NORDIC: service.vaya@elcare.com... -
Page 11: Weight And Speed Limitations
When the battery indicator shows low battery capacity, please charge the battery for 2-3 hours using the charger that you received in the E-Bike package. To fully recharge the battery, follow the instructions under “Charging your E-Bike”. ELCARE NORDIC: service.vaya@elcare.com... -
Page 12: Battery Specifications
WARNING: Only carry luggage in the luggage carrier when riding the E-Bike. The luggage carrier is not designed to pull a trailer. When carrying luggage using the carrier, be aware of any re昀氀ectors or light that the luggage may block. ELCARE NORDIC: service.vaya@elcare.com... -
Page 13: Carrier Specifications
The rims are subject to wear which must be checked to ensure they are intact. Check the brake pads for wear. If the brake pads are worn out, replace them immediately. See the photo below for which screws to check and secure after each ride. ELCARE NORDIC: service.vaya@elcare.com... -
Page 14: Cleaning Your E-Bike
While lifting the rear of the bike and turning the pedals by hand, use the gear shifter to select the lowest gear. Use a suitable screwdriver to turn the screw marked with L (low gear) to adjust the rear derailleur until it is vertically aligned below the lowest gear. See photo above. ELCARE NORDIC: service.vaya@elcare.com... - Page 15 Turn the barrel adjuster about a quarter at a time, then change the gears again to see if the problem has been 昀椀xed. If there still is a problem, repeat the process in step 3. ELCARE NORDIC: service.vaya@elcare.com...
-
Page 16: Adjusting The V-Brake Cable Tension
Turn anticlockwise to move the brake pads away from the wheel rim. Turn clockwise to move the brake pads close to the wheel rim. ELCARE NORDIC: service.vaya@elcare.com... -
Page 17: Adjusting The V-Brake Spring Tension
To check this, grab the tyre of either the front or rear wheel while holding the bike securely. Vigorously move the tyre from side to side. If the wheel moves at the wheel hub (the centre of the wheel), the bearing may be worn. ELCARE NORDIC: service.vaya@elcare.com... -
Page 18: Removing The Wheels
If you have a puncture, you will need to remove and patch the inner tube. NOTE: A set of tyre levers is needed to remove the inner tube. Not included in the box. Remove the dust cap from the tube valve. De昀氀ate the tyre fully. ELCARE NORDIC: service.vaya@elcare.com... -
Page 19: Replacing Brake Pads
Wheel size: 28 x 1,75 inch / 700 x 45 mm Max compatible wheel size: 28 x 1,75 inch / 700 x 45 mm Weather resistance: IP54 Bike gear counts: 7 Assistance mode gear counts: 5 Max pedal assistance speed: 0-25 km/h Boost mileage: up to 50km ELCARE NORDIC: service.vaya@elcare.com... -
Page 20: Recommended Tightening Information
Power failure Motor fault 1: Loose connection 2: Motor error Controller error Communication error – sending 1: Loose connection 2: Controller error 3: Display error Communication error – receiving 1: Loose connection 2: Display error Communication error ELCARE NORDIC: service.vaya@elcare.com... -
Page 21: Disposal
Contact your Local Authority Waste Disposal Department, as they will be able to provide details of the recycling options available in your area. Imported by: Vaya Nordic ApS, Pioner Alle 16D, 9200 Aalborg SV, Denmark. Date of issue: 02/2023 Version: PO-1697 ELCARE NORDIC: service.vaya@elcare.com...
