Page 3: Table Of Contents
Table of contents Table of contents General information......................5 1.1 Symbols and signal words................... 5 Safety instructions......................... 6 Features............................8 Installation and starting up....................9 Connections and controls....................10 Technical specifications....................16 Plug and connection assignment................. 19 Protecting the environment................... 21 xmix 802 USB, xmix 1202 USB, xmix 1402 USB Mixer Amplifier... - Page 4 xmix 802 USB, xmix 1202 USB, xmix 1402 USB Mixer Amplifier...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions NOTICE! Danger of short circuit due to use of unbalanced XLR cables! The device has a phantom voltage input. Using unbalanced cables with the phantom power may damage the device. Use only balanced cables. Before switching on phantom power, always make sure that no unbalanced wired cables are connected. NOTICE! Risk of fire due to installation of a wrong fuse! Using fuses of a different type than compatible with the device may cause a fire and seriously damage the device.
-
Page 8: Features

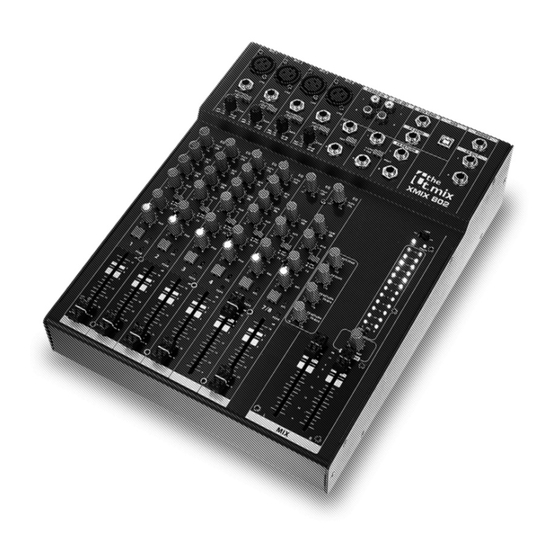

Features Features xmix 802 USB (item no. 422790) 8-channel mixer 4 mono channels (MIC, line) with 3-band tone control and low cut 2 stereo channels with 2-band tone control and balance control 1 × AUX control per channel, PRE/POST selectable, FX send (post fader) Master output L/R via 2 ×... -
Page 9: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 10: Connections And Controls
Connections and controls Connections and controls Mono channel strip MIC 1 1 [MIC] | Balanced XLR mono input for connecting a microphone. 2 [LINE] | 6.35-mm jack input for connecting a line level audio source (key‐ ö board, drum module etc., balanced or unbalanced). 3 [80 Hz HPF] | High pass filter to attenuate rumble noise and other low-fre‐... - Page 11 Connections and controls Stereo channel strip 14, 16 [STEREO IN] | Cinch sockets for connecting stereo sources for channel 5/6 STEREO I N REC OUT (item no. 422790), channel 7/8 (item no. 422791) or channel 9/10 (item no. 422792). 15, 17 [REC OUT] | Line outputs with cinch sockets for connecting recording devices.
- Page 12 Connections and controls Effects section, AUX AUX SEND FX SEND FX RETURN TO MIX FX RETURN TO AUX 34 [AUX SEND] | Rotary control for adjusting the overall level on the [AUX SEND] output 35 [FX SEND] | Rotary control for adjusting the overall level on the [FX SEND] output 36 [FX RETURN TO MIX] | Rotary control for adjusting the effects portion in the sum signal 37 [FX RETURN TO AUX] | Rotary control for adjusting the effects portion present on the [AUX SEND] output Master section...
- Page 13 Connections and controls [CR OUT L] | Control room output for connecting amplifiers or active speakers. [CR OUT R] | Control room output for connecting amplifiers or active speakers. +48V +48V POWER CR & P HONES (PFL) CR & P HONES [+48V] LED | This LED lights up when the phantom power is on.
- Page 14 Back D AT E C O D E : S E R IA L N o : Thomann GmbH MAIN OUTPUTS Hans- Thomann- Str. 1 96138 B urgebrach German y Made in China C A U T I O N...
- Page 15 Connections and controls Connection example – PC home recording xmix 802 USB, xmix 1202 USB, xmix 1402 USB Mixer Amplifier...
-
Page 16: Technical Specifications
Technical specifications Technical specifications Input connections Power supply C14 rubber panel plug Microphone input Type 4 × XLR panel socket, 3-pin, balanced (item no. 422790) 6 × XLR panel socket, 3-pin, balanced (item no. 422791) 8 × XLR panel socket, 3-pin, balanced (item no. 422792) Level max. - Page 17 Technical specifications Rec output Type 2 × Cinch sockets Control room output Type 2 × 6.35-mm jack socket Level 26 dBu ± 1 dBu Impedance 100 Ω, unbalanced Stereo headphone output Type 6.35-mm jack socket Level 150 mW ± 5 mW @ 32 Ω Impedance 100 Ω, unbalanced Frequency range...
- Page 18 Technical specifications Further information item no. 422790 item no. 422791 item no. 422792 Low cut Direct out Compressor USB play Bluetooth play Multitrack recording Parametric Panorama Matrix mixer 19-inch rack-mountable xmix 802 USB, xmix 1202 USB, xmix 1402 USB Mixer Amplifier...
-
Page 19: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 20 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding xmix 802 USB, xmix 1202 USB, xmix 1402 USB...
-
Page 21: Protecting The Environment
You can also return your old device to Tho‐ mann GmbH at no charge. Check the current conditions on www.thomann.de. Proper disposal protects the environment as well as the health of your fellow human beings. - Page 22 Notes xmix 802 USB, xmix 1202 USB, xmix 1402 USB Mixer Amplifier...
