Binatone WF-1802 Instruction Manual

Binatone WF-1802 Instruction Manual

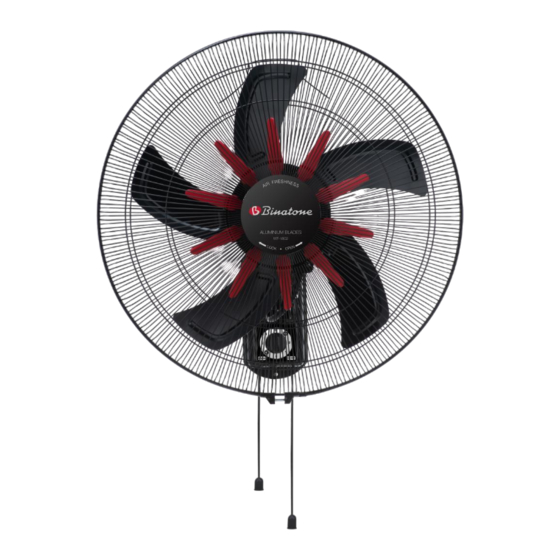

420mm wall fan

Advertisement

Quick Links

ENGLISH
420mm WALL FAN
To get the best results from your Binatone product
please read these instructions carefully.
WF-1802

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF-1802 and is the answer not in the manual?

Questions and answers

Summary of Contents for Binatone WF-1802

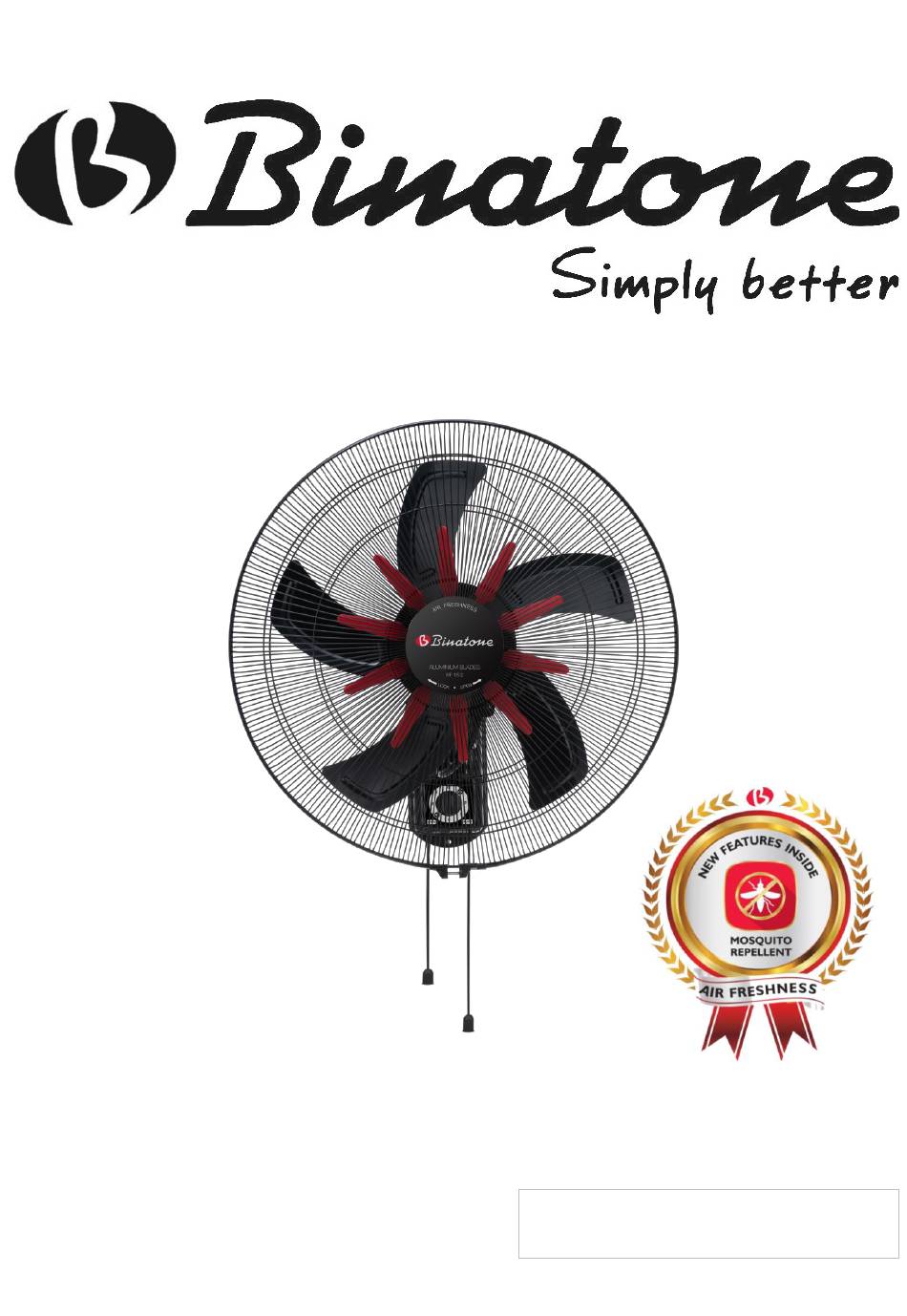

  • Page 1 ENGLISH 420mm WALL FAN To get the best results from your Binatone product please read these instructions carefully. WF-1802...
  • Page 2 & value products available in the market today. Our commitment lies solely in delivering high quality, affordable products. Our international team is constantly pursuing every effort to make products not just ‘appliances’ but ‘lifestyle improvements’. Check out all the latest Binatone products at: www.binatonelifestyle.com...
  • Page 3: Important Safeguards

    ✓ Use this appliance only for its intended use – as described in this manual. ✓ Do not insert fingers, pencil or other articles through the slots during operation. ✓ The use of accessory attachments not included, recommended or sold by Binatone is prohibited and may cause damage, fire, electric shock or injury.
  • Page 4: Specification

    SPECIFICATION Power: AC 230V~ 50Hz 120W KNOW YOUR APPLIANCE 1) Grille Cap 7) Lock Nut 2) Securing band 8) Fan Blade 3) Securing screws 9) Rear Grille 4) Air Freshness Holder 10) Motor Unit 5) Front Grille 11) Wall Mount Frame 6) Diffuser Blade...
  • Page 5: Before First Use

    (shown at right) on the wall with a pencil. Fix securing locations to the wall - ensure the wall fixings are strong enough to hold the weight of the WF-1802. 2. Install the wall mount frame(11) on the vertical wall – secure it using 3 screws.
  • Page 6 OPERATING INSTRUCTIONS 1. Plug the power cord of the wall fan into a standard AC 230V outlet. 2. Speed Control - On the Wall Mount Frame (11) – the fan speed selection is controlled by the RIGHT pull cord Pull one time Speed 1 low gentle, quiet operation Pull two times...
  • Page 7 OPERATING INSTRUCTIONS continued 3. Swing Control - On the Wall Mount Frame (11) – the fan head can swing from left to right. To start the oscillation – pull the LEFT cord. To stop the oscillation – pull the LEFT cord. 5.
  • Page 8 AIR FRESHNESS The Air Freshness module can be used as an Air Freshener or as a Mosquito Repellent by soaking the provided sponge pads with appropriate liquids. We recommend that the sponge pads are sprayed/soaked with appropriate liquid, depending on operation mode. The sponge pad should be thoroughly wet but not dripping wet before inserting to your fans Air Freshness module.
  • Page 9: Care And Cleaning

    CARE AND CLEANING This appliance requires little maintenance. We recommend dust is cleaned from the fan blade and protective grills every few months, to keep it operating optimally. After use and before cleaning, ensure the fan is OFF and the blades have come to a complete stop.
  • Page 10: Service & Customer Care

    SERVICE & CUSTOMER CARE There are no user serviceable parts inside this appliance. If the power cord or plug are damaged it must, for safety reasons, be replaced by Binatone or an authorised Binatone repairer. If you need help with: •...
  • Page 11: Warranty

    This is a domestic product – warranty does not cover products that have been used for commercial purposes. BINATONE at its option, will repair or replace a product found to be defective during the warranty period. Should this product become defective by reason of improper workmanship or material defect during the specified warranty period, BINATONE will repair or replace the same effecting all necessary part replacements.
  • Page 12 Please consider recycling this instruction manual responsibly Binatone Lifestyle Appliances • LONDON • HONG KONG • DUBAI • LAGOS • ACCRA • Rev 1 (230103)
