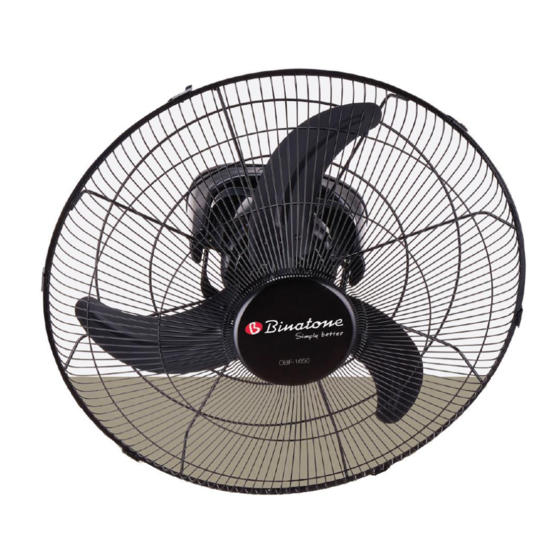

- Page 1 ENGLISH ORBIT FAN To get the best results from your Binatone product please read these instructions carefully. OBF-1650 / OBF-1801...
- Page 2 & value products available in the market today. Our commitment lies solely in delivering high quality, affordable products. Our international team is constantly pursuing every effort to make products not just ‘appliances’ but ‘lifestyle improvements’. Check out all the latest Binatone products at: www.binatonelifestyle.com...
-
Page 3: Important Safeguards
✓ Use this appliance only for its intended use – as described in this manual. ✓ Do not insert fingers, pencil or other articles through the slots during operation. ✓ The use of accessory attachments not included, recommended or sold by Binatone is prohibited and may cause damage, fire, electric shock or injury. -
Page 4: Specification
SPECIFICATION OBF-1650 Power: AC 230V~ 50Hz 40W OBF-1801 Power: AC 230V~ 50Hz 60W KNOW YOUR APPLIANCE Control Panel The orbit fan is controlled by the supplied wall mount switch, providing 3 air flow settings: 0=Off, 1=Low, 2=Medium, 3=High. BEFORE FIRST USE Carefully remove all packaging and assemble the product following the setup &... -
Page 5: Setup Instructions
SETUP INSTRUCTIONS It is recommended that this appliance and the wall mounted switch be installed by a qualified electrician. Fan Blade & Protection Grill Assembly Item Part Metal Mounting Plate Supply cord Motor Housing Rear Grill Fan Blade Front Grill Rear Grill Mounting Nut Plastic Base Concrete Screws... - Page 6 SETUP INSTRUCTIONS continued L) Align the single fixed lock tab on the front grill (6) with the bottom of the rear grill (4) and clip together. M) Close the 4 movable lock tabs on front grill (6) to secure it fully to the rear grill (4) To fit the wall mounted switch: Make sure your power supply is consistent with the rated specification of the product before connecting.
-
Page 7: Wiring Diagram
Wiring diagram Orbit fan to wall mounted switch Where : H=High speed setting M=Medium speed setting L=Low speed setting C= capacitor (inside wall mount switch unit) - Page 8 OPERATING INSTRUCTIONS 1. Speed 1 – Low On the wall mount speed control - rotate the dial control so the arrows line up with the marked ‘1’ To turn off – rotate the dial control, so the arrows align with ‘0’ 2.
-
Page 9: Care And Cleaning
CARE AND CLEANING This appliance requires little maintenance. We recommend dust is cleaned from the fan blade and protective grills every few months, to keep it operating optimally. After use and before cleaning, ensure the fan is OFF and the blades have come to a complete stop. -
Page 10: Service & Customer Care
SERVICE & CUSTOMER CARE There are no user serviceable parts inside this appliance. If the power cord or plug are damaged it must, for safety reasons, be replaced by Binatone or an authorised Binatone repairer. If you need help with:... -
Page 11: Warranty
This is a domestic product – warranty does not cover products that have been used for commercial purposes. BINATONE at its option, will repair or replace a product found to be defective during the warranty period. Should this product become defective by reason of improper workmanship or material defect during the specified warranty period, BINATONE will repair or replace the same effecting all necessary part replacements. - Page 12 Please consider recycling this instruction manual responsibly Binatone Lifestyle Appliances • LONDON • HONG KONG • DUBAI • LAGOS • ACCRA • Rev 6 (220413)
