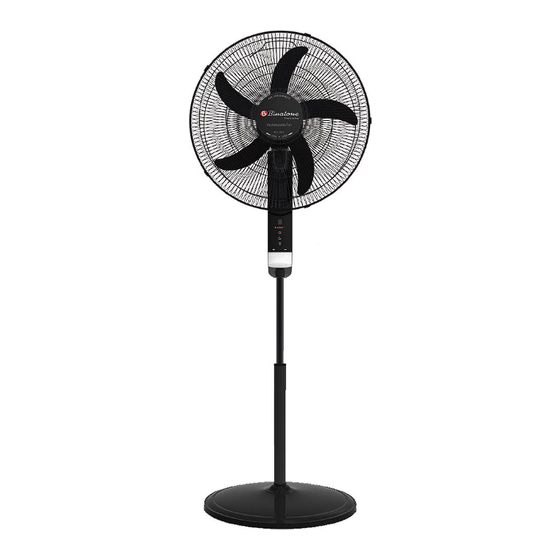

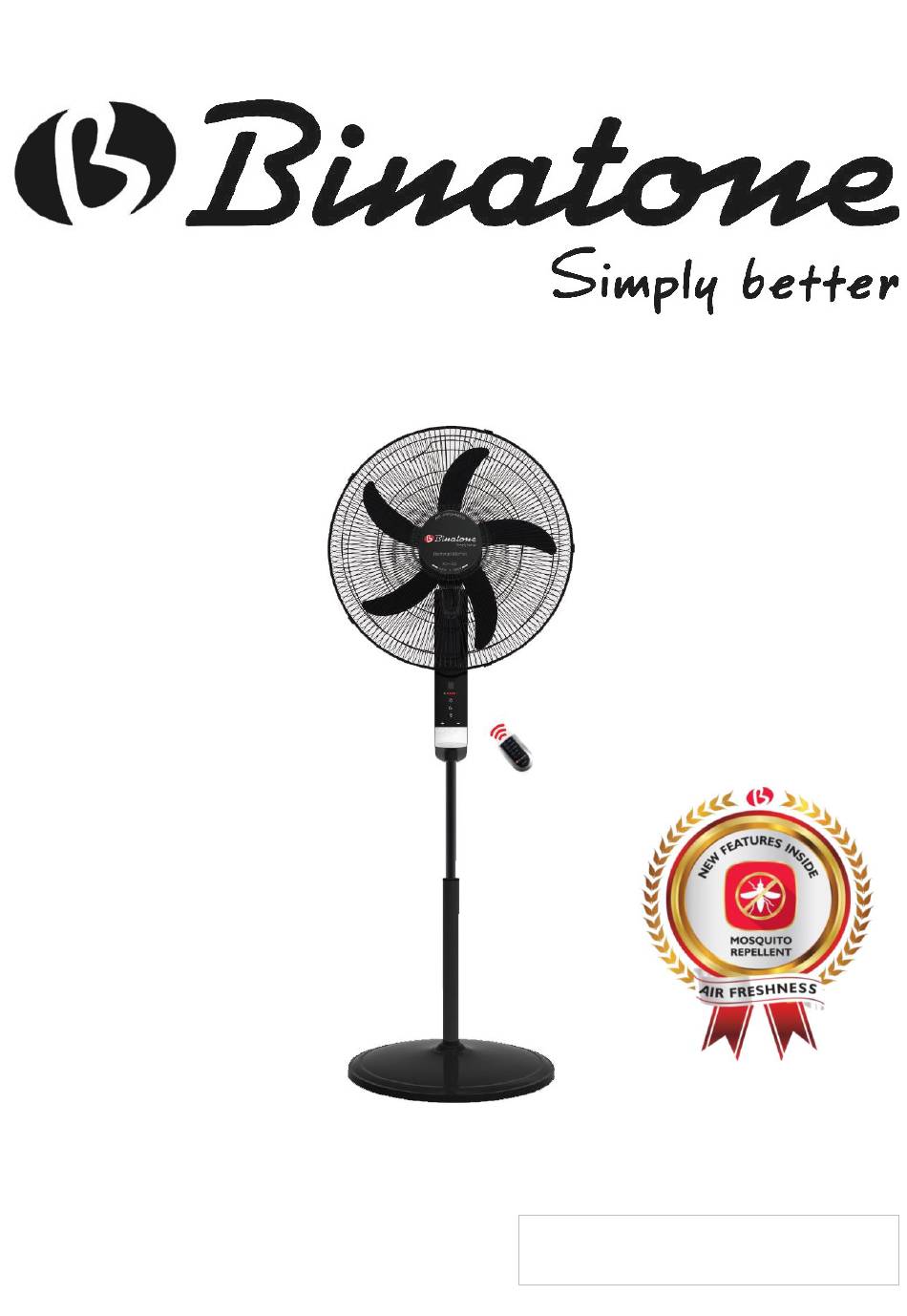

- Page 1 ENGLISH RECHARGEABLE AC/DC FAN To get the best results from your Binatone product please read these instructions carefully. RCF-1855...
- Page 2 & value products available in the market today. Our commitment lies solely in delivering high quality, affordable products. Our international team is constantly pursuing every effort to make products not just ‘appliances’ but ‘lifestyle improvements’. Check out all the latest Binatone products at: www.binatonelifestyle.com...
-
Page 3: Important Safeguards
✓ Use this appliance only for its intended use – as described in this manual. ✓ Do not insert fingers, pencil or other articles through the slots during operation. ✓ The use of accessory attachments not included, recommended or sold by Binatone is prohibited and may cause damage, fire, electric shock or injury. -
Page 4: Specification
SPECIFICATION Power: AC 100-240V~ 50Hz 1.2A Max Battery: DC 12V 6.5AH AGM Sealed Lead Acid type Charging time: Approx. 8-9 hours DC Battery duration (fully charged): High speed fan: Approx. 4-5 hours Low Speed Fan: Approx. 9-12 hours Standby mode (LED): Approx. -
Page 5: Setup Instructions
SETUP INSTRUCTIONS Battery Installation 1. Remove the battery terminal protective caps & discard them responsibly. 2. On the rear of the motor housing - remove the screw at the bottom edge of the cover - securing the battery cover in place. 3. - Page 6 SETUP INSTRUCTIONS continued Head Unit - Fan Blade & Protection Grill Assembly A. Motor housing B. Rear Grill C. Plastic Nut D. Fan Blade E. Trim Ring F. Lock Nut G. Front Grill H. Badge Cover • Place the rear grill (B) on the motor housing (A) •...
- Page 7 SETUP INSTRUCTIONS continued Base Assembly - Telescopic Tube to Base • Place the base on the floor • Insert the telescopic tube into the recess on the top of the base & align the 4 holes • Secure using the 4pcs screw provided •...
- Page 8 OPERATING INSTRUCTIONS AC/DC function Connect the AC/DC converter to a power socket. Connect the AC/DC converter wire to the power input socket (13). All fan functions can be used, and the internal battery will be charged. The battery charge state indicator (4) will illuminate. When AC power supply fails or is disconnected - the fan will continue operation from the built-in battery.
- Page 9 OPERATING INSTRUCTIONS continued 5. Fan Oscillation During fan operation, the fan head oscillation can be used. Pull the knob on the rear of the motor housing (A) to make the fan head swing from side to side. Push the knob on the rear of the motor housing (A) to switch off 6.
- Page 10 OPERATING INSTRUCTIONS continued 9. Solar DC Charge The internal battery can also be charged from a solar panel that can provide minimum 20V DC (we recommend a 50W panel minimum). Connect solar panel to the Solar Input Socket (14) – please ensure the polarity of the input is as shown.
- Page 11 AIR FRESHNESS The Air Freshness module can be used as an Air Freshener or as a Mosquito Repellent by soaking the provided sponge pads with appropriate liquids. We recommend that the sponge pads are sprayed/soaked with appropriate liquid, depending on operation mode. The sponge pad should be thoroughly wet but not dripping wet before inserting to your fans Air Freshness module.
-
Page 12: Care And Cleaning
CARE AND CLEANING This appliance requires little maintenance. We recommend dust is cleaned from the fan blade and protective grills every few months, to keep it operating optimally. After use and before cleaning, ensure the fan is OFF and the blades have come to a complete stop. -
Page 13: Battery Replacement
BATTERY REPLACEMENT The battery installed in this product can be replaced. A replacement battery (part number NP12-6.5) may be obtained from your local Binatone Service Centre or directly through www.binatonelifestyle.com 1) Disconnect all power input to the fan 2) Remove the screw securing the battery cover on the rear of the main housing 3) Remove the battery coved by sliding it downwards (see fig 1 below) 4) Carefully remove the wiring from the existing batteries, noting the connections. -
Page 14: Service & Customer Care
SERVICE & CUSTOMER CARE There are no user serviceable parts inside this appliance. If the power cord or plug are damaged it must, for safety reasons, be replaced by Binatone or an authorised Binatone repairer. If you need help with: •... -
Page 15: Warranty
This is a domestic product – warranty does not cover products that have been used for commercial purposes. BINATONE at its option, will repair or replace a product found to be defective during the warranty period. Should this product become defective by reason of improper workmanship or material defect during the specified warranty period, BINATONE will repair or replace the same effecting all necessary part replacements. - Page 16 Please consider recycling this instruction manual responsibly Binatone Lifestyle Appliances • LONDON • HONG KONG • DUBAI • LAGOS • ACCRA • Rev 2 (211029)
