- Page 1 SER MANUAL EV-B AMILY OARD FOR RADIO -I, -II, -III, MODULES ROTEUS -III-SPI, S -I, T ETEBOS HYONE 2608011 24000, 2608011 24010, 26110110240 0, 26110110210 ERSION 18, 2024 PRIL...
- Page 2 This is especially important for Wireless Connectivity products that were not purchased directly from Würth Elektronik eiSos. A firmware update on these respective products may be required. We strongly recommend to include in the customer system design, the possibility for a firmware update of the product.
- Page 3 Family EV-Board user manual Revision history Manual Notes Date version version June 2022 Initial version December 2022 Corrected content in chapter 3.6 May 2023 Updated meta data April 2024 Included Ophelia-III Family EV-Board Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs...
- Page 4 Serial Peripheral Interface Serial Wire Debug Through-Hole Technology Universal Asynchronous Receiver Transmitter Universal Asynchronous UART allows communicating with the module of a Receiver Transmitter specific interface Universal Serial Bus Voltage Drain Drain Supply voltage Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs...
-
Page 5: Table Of Contents
3.3.6 SMA ........18 3.3.6.1 Proteus-I/-II ....... 18 3.3.6.2 Smart antenna . - Page 6 Exemption clause ........37 5 References 6 Important notes 7 Terms of Use for Würth Elektronik eiSos GmbH & Co. KG EV-Boards, evaluaton kits and evaluation modules 8 Legal notice 9 License terms Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs...
-
Page 7: Supported Radio Modules
- smart antenna configuration 2.4 GHz proprietary radio module - smart 2611011021000 Thyone-I antenna configuration Order code Product Name 2608049024001 Family Board Proteus-I 2608049024011 Family Board Proteus-II 2611149024001 Family Board Proteus-III 2611149024011 Family Board Proteus-III-SPI 2611149024021 Family Board Setebos-I... -
Page 8: Content Family Board Proteus-I
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual Quantity Content 2608049024001 Family Board with Proteus-I integrated PCB antenna Table 2: Content Family Board Proteus-I Quantity Content 2608049024011 Family Board with Proteus-II integrated PCB antenna Table 3: Content Family Board Proteus-II... -
Page 9: Functional Description
In that way, a COM port can be detected and installed on the PC. In the device manager, the COM port name of the TTL-232R-3V3 FTDI cable can be found. A COM port shall appear for example: "COM12" in Windows systems or "/dev/ttyUSB0" in Linux systems. Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 10: Taking Into Operation - Host Controller
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual The WE-SmartCommander [4] or any other serial terminal program (like hterm [5] for Windows) has to be run and the corresponding COM port has to be opened using the default settings of the mounted radio module. -

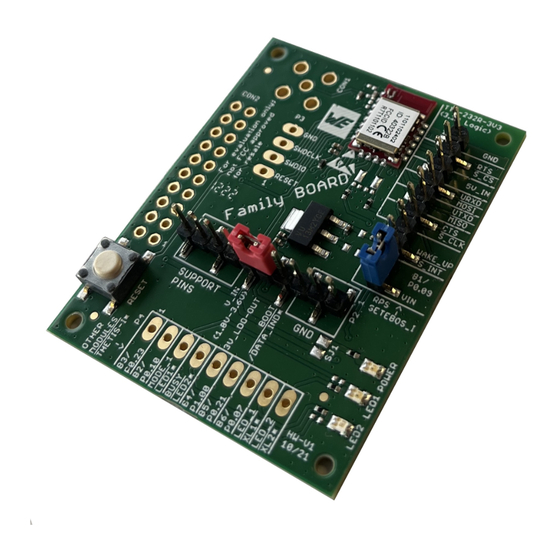

Page 11: Development Board
2.54 mm UART or SPI pin header (3.3 V logic) 2.54 mm pin Reset LEDs header button Connector (VIN, GND) Alternate power supply (1.8 - 3.6 V) Figure 2: Block diagram Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 12: Additional Assembly
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual 3.2 Additional assembly Figure 3: Additional assembly Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... - Page 13 CON1 External antenna connection 60312002114503 CON2 Debugging interface 2X10 61302021121 Table 8: Additional assembly components Holes with 2 mm diameter on all the four corners are available for spacer or standoff connections Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs...
-
Page 14: Connectors And Ports
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual 3.3 Connectors and ports Figure 4: Connectors Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 15: P1: Module Communication Access Pins / Ttl-232R-3V3 Ftdi Cable Connector
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual 3.3.1 P1: Module communication access pins / TTL-232R-3V3 FTDI cable connector 3.3.1.1 Proteus-I, Proteus-II nRF52832 Board connection Proteus-I,-II P0.04 Module pin 14 /RTS 5 V0 (Board power supply) P0.03 Module pin 13 URXD P0.02... -
Page 16: Proteus-Iii, Proteus-Iii Spi, Setebos-I, Thyone-I
P1 pin header can also be used for direct host connection. In case of Setebos-I, the pin B1/RPS on pin header P1 is used to select the ® radio protocol (proprietary or Bluetooth LE 5.1). Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 17: P2: Power Supply / Current Measurement
For instance, a jumper can be set on P2 pin 6-7 providing V_IN access on the pin header P2 Pin 8,9,10. 3.3.3 P3: Module debug access pins Module connection Function P0.21 (Proteus-I, Proteus-II) RESET P0.18 (Proteus-III, Proteus-III-SPI, Setebos-I, Thyone-I) SWDIO... -
Page 18: P4: Module Gpio Access Pins
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual 3.3.4 P4: Module GPIO access pins 3.3.4.1 Proteus-I, Proteus-II Board nRF52832 Proteus-I,-II connection P0.10 Module pin 8 MODE_1 P0.09 Module pin 9 BUSY Module pin P0.00 LED_1 Module pin P0.02 LED_2 Table 13: Pin header P4 Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024... -
Page 19: Proteus-Iii, Proteus-Iii-Spi, Setebos-I, Thyone-I
Table 14: Pin header P4 3.3.5 CON2: Debugging Interface-2x10 pin header CON2 nRF52840 Function SWDIO SWDIO SWCLK SWCLK P0.21 (Proteus-I, Proteus-II) P0.18 (Proteus-III, RESET Proteus-III-SPI, Setebos-I, Thyone-I) 4,6,8,10,12,14,16,18,20 2,3,5,11,13,17,19 Table 15: JTAG debugging interface Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024... -
Page 20: Sma
4 x GND Table 16: Pin header SMA 3.3.6.1 Proteus-I/-II For Proteus-I and Proteus-II modules the integrated antenna variant is assembled on the Family Board. For these radio modules, the use of the external antenna is not possible on the Family Board. -
Page 21: Smart Antenna
In order to use the internal PCB antenna of the module, a 2 pF capacitor (0402) on position C2 shall be populated. C1 shall be removed, C8 and C11 should be left unpopulated. Figure 6: Capacitor connection to internal antenna Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 22: Jumpers
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual 3.4 Jumpers Figure 7: Jumpers Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... - Page 23 WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual Pins Function Default state P2 Pin (5-6) Current measurement P1 Pin (9-10) Setebos-I functions not set P2 Pin (3-4) Boot mode not set Table 17: Jumpers Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs...
-
Page 24: Current Measurement
After boot up, the modules stays in the selected mode until a reboot is triggered. Function B1/ RPS (Radio Protocol Select) V_IN Table 19: Pin header P1 Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 25: Boot Mode
For Thyone-I module (2611011021000), boot loader mode allows firmware update via UART. For Setebos-I module (2611011024020), the boot loader of the Proteus-III is used. nRF52840 Function P0.02 BOOT Table 20: Pin header P2 Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 26: Reset Button
On IC level, the active low reset input is configured with a pull up resistor. The module provides a /RESET pin that is connected to this button, so that the module can be restarted properly. Please refer to the module specific manual for detailed information [10, 11, 12]. Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 27: Function Blocks
By default, the power LED is connected through a solder bridge. Current mea- surement with connected solder bridge (SJ1) results in additional current. Sol- der bridge shall be disconnected for accurate current measurement. Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 28: Pin Header P1, Power Supply Through Ttl-232R-3V3
GND (Pin 1) TTL-232R-3V3 Cable / Current / external power supply multimeter (5 V, GND) (Solder bridge) Power LED Figure 9: Power supply corresponding to table 21 No 1 and 2 Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 29: Pin Header P2, Power Supply Through External Source
1.8 V - 3.6 V Pin 7 Pin 6 Radio Pin 8, 9, 10 module Current / Pin 1, 2, 3 multimeter (Solder bridge) Power LED Figure 10: Power supply corresponding to table 21 No 3 Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 30: Uart / Usb
By default, Q1, C9, C10 shall not be assembled and R3, R5 shall be assembled. For standard firmware, the external crystal is not needed. To enable use of the LFXO, a custom firmware is required. Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 31: Lfxo Assembly
C9 and C10 results in 12 pF which was also tested on Family Board. Depending on parasitic capacitance of PCB, a capacitance of 12 pF may be a good starting value for C9 and C10. Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 32: Programming Interface
3.6.7 LEDs 3.6.7.1 Proteus-I, Proteus-II, Proteus-III, Proteus-III-SPI, Thyone-I, Setebos-I For Proteus-I, Proteus-II, Proteus-III, Proteus-III-SPI, Thyone-I, Setebos-I radio modules, the resistors R6 and R7 are assembled and the resistors R1 and R2 are not assembled. Figure 12: LED resistor R6, R7 assembly Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024... -
Page 33: Schematic - Proteus-Iii, Proteus-Iii-Spi, Thyone-I, Setebos-I
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual 3.7 Schematic - Proteus-III, Proteus-III-SPI, Thyone-I, Setebos-I Figure 13: Schematic sheet Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 34: Schematic -Proteus-I, Proteus-Ii
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual 3.8 Schematic -Proteus-I, Proteus-II Figure 14: Schematic sheet Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 35: Layout
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual 3.9 Layout no metal antenna NO METAL 12.5mm Figure 15: Assembly diagram Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 36: Top, Bottom & Internal Layers
WIRELESS CONNECTIVITY & SENSORS Family EV-Board user manual Figure 16: Top, bottom & internal layers Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... -
Page 37: Bill Of Materials
2611011021000 MOD-1 Würth Elektronik n.m. n.m. n.m. 61001018221 8.5mm Würth Elektronik 61001018221 61001018221 8.5mm Würth Elektronik 61001018221 n.m. n.m. n.m. n.m. n.m. 10KR 1K5R 1K5R 430152043826 4.3mm Würth Elektronik 430152043826 n.m. n.m. Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs... - Page 38 EV-Board. For radio module specific information concerning the parts in the antenna path, please refer to the reference design chapter of the respective radio module user manual [6, 7, 10, 9, 12]. Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024 www.we-online.com/wcs...
- Page 39 Equally, the national laws and restrictions may vary with the country. In case of doubt or uncer- tainty, we recommend that you consult with the authorities or official certification organizations of the relevant countries. Würth Elektronik eiSos is exempt from any responsibilities or liabili- ties related to regulatory compliance.
- Page 40 [5] hterm. Terminal programm. https://www.der-hammer.info/pages/terminal.html . https://www.we-online.de/katalog/de/ [6] Würth Elektronik. Proteus-I user manual. manual/2608011024000 . [7] Würth Elektronik. Proteus-II user manual. https://www.we-online.de/katalog/de/ manual/2608011024010 . [8] Würth Elektronik. Ophelia-III user manual. https://www.we-online.de/katalog/de/ manual/2611011022000 . [9] Würth Elektronik. Proteus-III-SPI user manual. https://www.we-online.de/katalog/de/ manual/2611011024010 .
- Page 41 -kits or -modules (hereinafter jointly referred to as "EVB") in accordance with the terms and conditions contained here. The EVB is provided in the "as is" state. WE disclaims all express and implied warranties, in particular those concerning the suitability for a certain purpose, the absence of defects or non-violation of third-party rights.
- Page 42 The use of the EVB is your full and independent responsibility. The EVB is expressly not intended to be installed in a terminal device or to be part of a terminal device in whole or in part. WE reserves the right, at its own discretion, to make corrections, improvements, adjustments or other changes to the EVB or to discontinue the EVB.
- Page 43 Exclusion of further rights and rights of use for intellectual property of EVB The sale of an EVB does not constitute the granting by WE of any license or other right of any kind - expressly or implicitly - including, but not limited to, any patent, copyright, trademark or other proprietary rights.
- Page 44 Applicable law to these license terms shall be the laws of the Federal Republic of Germany. Any dispute, claim or controversy arising out of or relating to these license terms shall be resolved and finally settled by the court competent for the location of Würth Elektronik eiSos registered Proteus-I,-II,-III,-III-SPI, Setebos-I, Thyone-I Version 1.3, April 2024...
- Page 45 Elektronik eiSos homepage for any updates. Your continued usage of the products will be deemed as the acceptance of the change. We recommend you to be updated about the status of new firmware and software, which is available on our website or in our data sheet and manual, and to implement new software in your device where appropriate.
- Page 46 Order codes ........Content Family Board Proteus-I .
- Page 47 Contact Würth Elektronik eiSos GmbH & Co. KG Division Wireless Connectivity & Sensors Max-Eyth-Straße 1 74638 Waldenburg Germany Tel.: +49 651 99355-0 Fax.: +49 651 99355-69 www.we-online.com/wireless-connectivity...
