Gato Audio PRE-1 User Manual

Dual mono preamplifier and extension modules
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
PRE-1 Dual Mono Preamplifier
MMC-1 & ESS-1 Extension Modules
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRE-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Gato Audio PRE-1

Summary of Contents for Gato Audio PRE-1

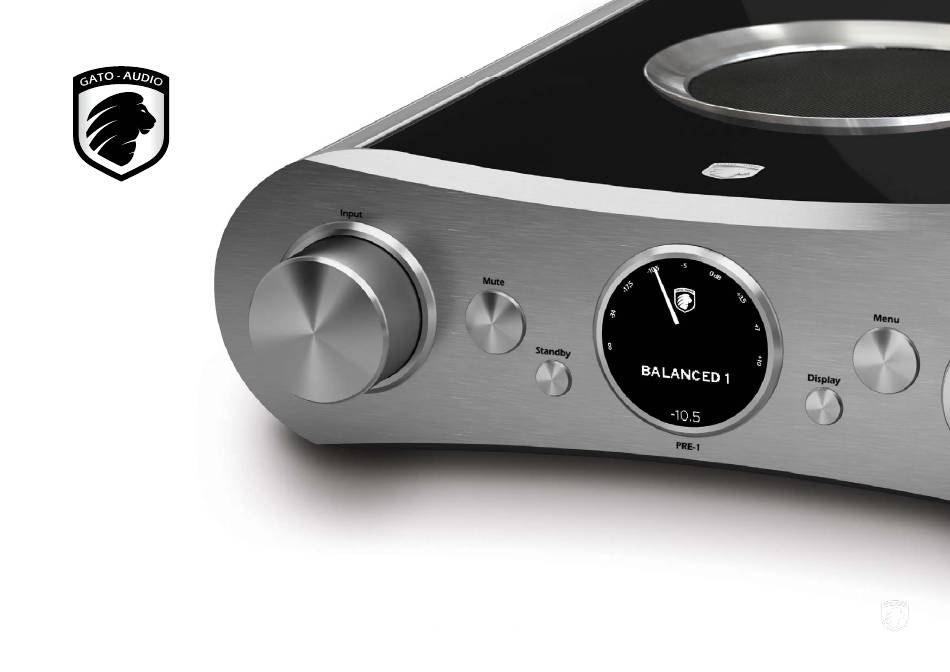

  • Page 1 User Manual PRE-1 Dual Mono Preamplifier MMC-1 & ESS-1 Extension Modules...

  • Page 3: Table Of Contents

    Package Contents Oversampling Filter (PCM) IIR Filter (DSD) Safety First! RC-8 Remote Control About The PRE-1 Troubleshooting Setting Up Your PRE-1 Basic Connection Make it Last! How Does it Work? If All Else Fails… Basic Functionality Power On & Standby...

  • Page 4: Don't Be A Stranger

    Don’t Be a Stranger Package Contents Thank you for purchasing the Gato Audio PRE-1 Dual Mono Preamplifi er. We are absolutely Please check that the following is included in the package: confi dent that it will bring you many hours of listening pleasure.

  • Page 5: Safety First

    • Do not spray any liquid directly onto the preamplifi er • Do not place liquid containers above or near the preamplifi er • Keep liquids away from the preamplifi er Input Volume Mute Menu 100 mm / 4” 100 mm / 4” Standby Display PRE-1...

  • Page 6: About The Pre-1

    About The PRE-1 General Design The PRE-1 is a sophisticated stereo preamplifi er with a built-in headphone amplifi er. It is designed with maximum sonic performance and fl exibility in mind. The preamplifi er features fully confi gural inputs such as individual naming, gain settings and deactivating of those inputs not in use.

  • Page 8: Setting Up Your Pre-1

    Basic Connection Follow these steps for setting up your system in this sequence: 1. Place the PRE-1 as per the instructions on page 5 2. Connect inputs and outputs to the preamplifi er 3. Connect mains power cable to the preamplifi er and turn it on 4.
  • Page 9 12 V Trigger Out Extension Slot 1 Mains Extension Slot 2 12 V Trigger In 6,3 mm Head- Switch phone Output Coax Phono Ground Toslink Head- phone Mains Right Left Made in Denmark Bal 1 In Bal 2 In Bal 2 In Bal 1 In Trigger Out TO REDUCE THE RISK OF ELECTRICAL SHOCK OR FIRE, DO...

  • Page 10: How Does It Work

    Exit standby and turn on the preamplifi er by pressing the Standby button on the Power Off front panel or the On button on the remote. To put the PRE-1 in standby press the standby button on the front panel or the Off button on the remote control. Adjusting Volume Turning the volume control knob clockwise increases the volume.

  • Page 11: Gain Setting

    In the Input Gain Menu, select the input to be adjusted by turning the Input knob Factory reset will change all settings of the PRE-1 to default. Go to Other Settings and or using the direct input selection buttons on the remote. Then use the volume choose Factory Reset.

  • Page 12: Optional Mmc-1

    Optional MMC-1 About MMC-1 Turntable Input Turntable Ground The MMC-1 extension module off ers both MC and MM cartridge input settings. The MC input stage is a current mode design, that diff ers from typical voltage mode circuits by having a low input impedance off ering higher damping and minimizes noise and distor- tion.

  • Page 13: Optional Ess-1

    Optional ESS-1 About ESS-1 USB Input Coaxial Input Optical Input The ESS-1 extension module features the ESS9038PRO SABRE DAC chip, which has be- come the industry standard for the very best and most expensive DAC’s and CD players on the market - and for good reason. A careful implementation utilizing a super precise femto clock, seven low noise voltage regulators and refi ned analog circuits, we managed to obtain a sonic performance that is unbelievably detailed and yet musical and smooth.

  • Page 16: Rc-8 Remote Control

    RC-8 Remote Control The RC-8 is an infrared remote control for the Gato Audio PRE-1. Display How to insert/replace the battery The RC-8 runs on a standard CR2032 3 V button battery. 1. Remove the small lid on the bottom side of the remote 2.

  • Page 17: Troubleshooting

    MM or MC cartridge and adjust the setting of the PRE-1 accordingly. • Check that signal can pass through the power amplifi er. • Check and adjust the gain setting on the PRE-1 to desired output level. +15dB is available for very low output cartridges.

  • Page 18: Make It Last

    Please apply simple common sense to maintain the sound quality and lifespan of your Basic Preamplifer Specifications new Gato Audio preamplifi er. Here are a few guidelines: • Regular care: Wipe the surfaces carefully by using a clean soft dry cloth.
  • Page 19 Connectors Optional MMC-1 Phonostage Module Unbalanced Analogue Inputs 3 pairs of gold plated RCA Gain (0 Db) 1 KHz MM: 40 dB MC: 60 dB (depending on cartridge impedance) Balanced Analogue Inputs 2 pairs gold plated XLR Neutrik Gain Adjust 0 dB, +3 dB, +6 dB, +9 dB, +12 dB, +15 dB 1 pair of gold plated RCA MM: 47 KΩ...
  • Page 20 TO REDUCE THE RISK OF ELECTRICAL SHOCK OR FIRE, DO Trigger In NOT EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN. DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. Gato Audio Marielundvej 28 2730 Herlev Denmark Phone: +45 9390 8545 www.gato-audio.com...
