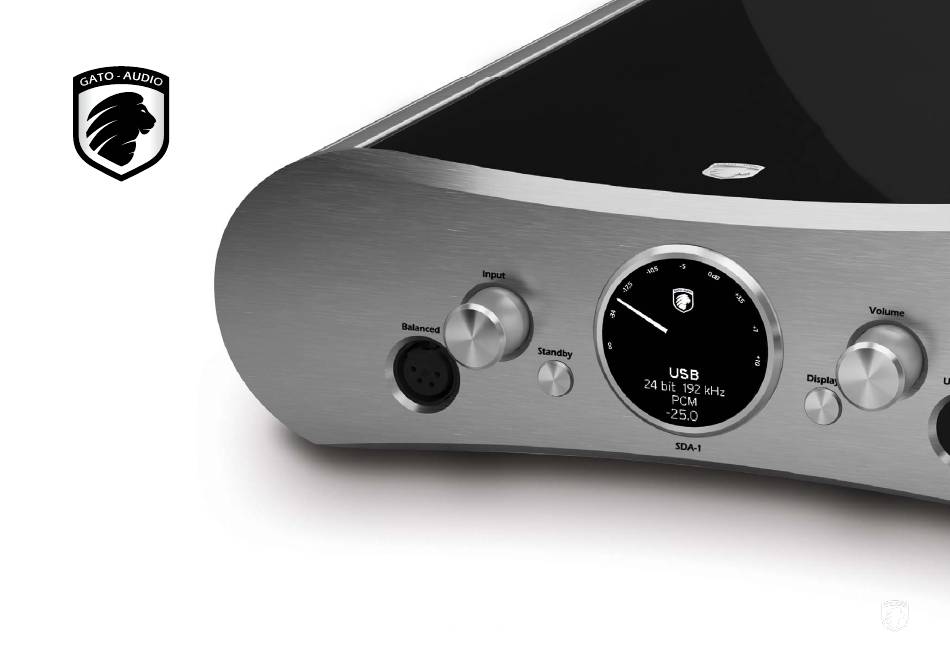

- Page 1 User Manual SDA-1 DAC & Headphone Amplifier...
-
Page 2: Table Of Contents
RC-7 Remote Control Package Contents Troubleshooting Safety First! Make it Last! About the SDA-1 If All Else Fails… Setting Up Your SDA-1 Technical Specifi cations Basic Connection How Does it Work? Basic Functionality Power On & Standby Adjusting Volume Mute... -
Page 3: Don't Be A Stranger
Don’t Be a Stranger Package Contents Thank you for purchasing the Gato Audio SDA-1 DAC & Headphone Amplifi er. We are Please check that the following is included in the package: absolutely confi dent that it will bring you many hours of listening pleasure. -
Page 4: Safety First
• Do not spray any liquid directly onto the unit. • Do not place liquid containers above or near the unit. • Keep liquids away from the unit. Input Volume 100 mm / 4” 100 mm / 4” Balanced Unbalanced Standby Display SDA-1... -
Page 5: About The Sda-1
Individual power supplies for the delicate analog and digital circuits secures a healthy separation of audio and logic. The SDA-1 features low noise voltage regulators and a well designed discrete analog output circuit that secures the best performance for your high end system. -
Page 6: Setting Up Your Sda-1
1. Place the SDA-1 as per the instructions on page 4. 2. Connect digital and analogue sources as well as outputs to your amplifi er. 3. Connect mains power cable to the SDA-1 and turn it on. 4. Select the desired input and volume setting. Enjoy! - Page 7 Factory reset connect Bluetooth Antenna Mains Connector Input SDA-1 with optional NPM-2 Network module Made in Denmark Trigger TO REDUCE THE RISK OF ELECTRICAL SHOCK OR FIRE, DO NOT EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN. DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
-
Page 8: How Does It Work
Press either of the buttons again to exit display dimming mode. Use the mains switch on the back of the unit to turn it on. The SDA-1 will now commence boot sequence that takes about 15 seconds to complete. When the red logo in the display stops fl ashing and becomes permanent red, the SDA-1 is in standby mode. -
Page 9: Input Gain
Display on the remote. As standard the SDA-1 is set up with variable output level. If the SDA-1 should be used as a fi xed output source, the output can be changed in the Output Menu. Choose Output Factory Reset type and select Variable or Fixed. -
Page 12: Rc-7 Remote Control
RC-7 Remote Control The RC-7 is an infrared remote control for the Gato Audio SDA-1. Display How to insert/replace the battery The RC-7 runs on a standard CR2032 3 V button battery. 1. Remove the small lid on the bottom side of the remote 2. -
Page 13: Troubleshooting
• Check that the headphone mode is activated. • Check that the headphone jack is securely fasted and pushed all the way into the socket on the front of the SDA-1. • Check that the headphone cable is not damaged and well connected to the head- phone itself. -
Page 14: Make It Last
Make it Last! Please apply simple common sense to maintain the sound quality and lifespan of your new Gato Audio SDA-1. Here are a few guidelines: • Regular care: Wipe the surfaces carefully by using a clean soft dry cloth. -
Page 15: Technical Specifications
Technical Specifications Headphone Output Level 0 dB (Digital Sources) 2.2 V Unbalanced, 4.4 V Balanced Maximum Output Level (Analog Source) 7 V Unbalanced, 11 V Balanced 1 Ω Output Impedance Frequency Response 20Hz - 20kHz - 0.3 dB Unbalanced Output 1W @ 33 Ω, 600 mW @ 50 Ω, 420 mW @ 100 Ω, THD+N 0.002%... - Page 16 Gato Audio Marielundvej 28 2730 Herlev Denmark Phone: +45 9390 8545 www.gato-audio.com hello@gato-audio.com...
