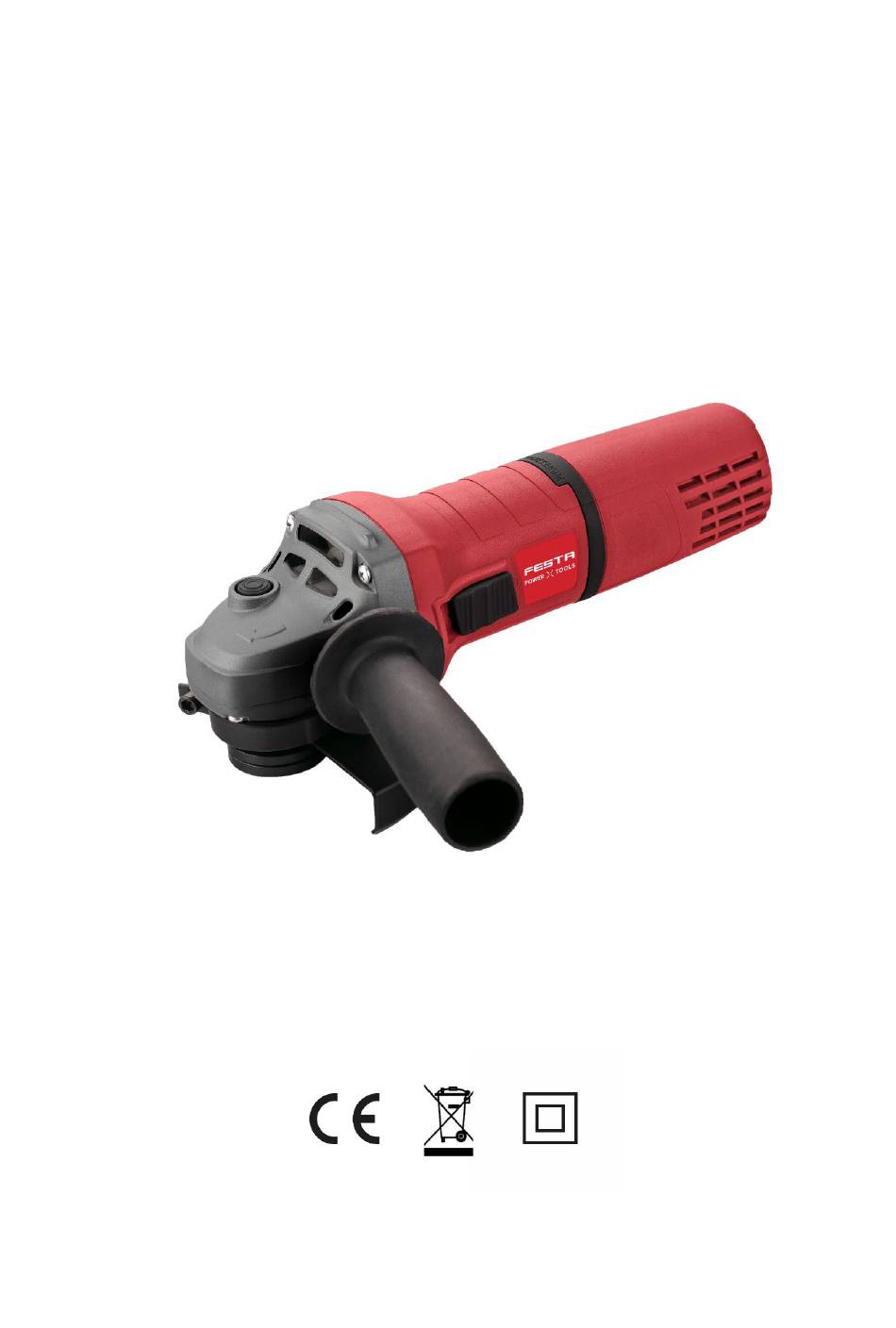

- Page 1 Angle grinder 125 mm Item No.: 28210 Model No.: S1M-HJ2112B-125 Manual for use Please read this manual carefully before using.
-
Page 2: Technical Specifications
1. Technical specifications Item No. 28210 Model No. S1M-HJ2112B-125 Rated voltage 230 V ~ 50 Hz Power 900 W No load speed 11000 min −1 Protection class Disc diameter Max 125 mm Length of electric cord Spindle thread Noise emission Values : 93,9 dB(A);... -
Page 3: Work Area Safety
3. Safety Warning: Using any tool can be dangerous. Always select the right tool for the job. Caution: The tool can get hot after use. Should be used by a competent person. If in doubt consult an electrician. Cutting/Grinding: Before attempting to cut/grind any object, first familiarize yourself with the correct procedures and techniques of cutting/grinding as well as the different cutting discs,... -
Page 4: Personal Safety
3.3 Personal Safety Always wear protective equipment when operating a power tool. Proper protective • equipment such as a dust mask, ear protection, and gloves will reduce personal injuries. • Proper workwear. Do not wear loose clothing or jewellery. Keep your hair, and clothing away from all moving parts. -
Page 5: Getting Started
5. Tool & accessory use and care • Avoid forcing the power tool into the material. Allow the power tool to do the job for which it was designed for. Disconnect the plug from the power source before making any adjustments, changing •... - Page 6 • Figure 1 1. Screw the auxiliary handle on to the slot. 2. Make sure the auxiliary handle is tightly screwed in, avoid over screwing, this will damage the thread. 6.1.2 Protection guard Figure 2 • Figure 2 1. Attach the protection guard by rotating the protection guard to such an angle that it can protect the operator according to work.
- Page 7 Figure 4 • Figure 3 1. Insert the blade and make sure its laying on top of the bottom flange nut securely, it must not move. 2. Carefully insert the top flange nut while holding your blade in place on the bottom flange nut.
-
Page 8: Operation
• Figure 5 1. Insert your spanner on the top flange nut. 2. Make sure the spanner is inside the top flange nut slots and tighten, give it one turn. 3. Press the spindle lock button while turning to lock the disc in place. 6.1.5 Inserting Wire Brush Figure 6 Figure 6... -
Page 9: Maintenance
sufficient. Excess pressure will slow down the tool. Coarser grit disc can be used to achieve a faster material removal rate. 6.2.2 Abrasive cutting discs/diamond blades • Abrasive cutting discs/diamond blades cuts at 90° angle to the workpiece. • Note that diamond blades usually require less feeding pressure than abrasive discs. 6.2.3 Wire cup and wheel brushes •... -
Page 10: Troubleshooting
• In case you experience the issue of overheating, simply reduce the load from the tool. Don’t turn off the tool, let it run at a normal/standard speed to promote cooling. Warning: Always ensure that the tool is switched off and the plug is removed from the PowerPoint before making any adjustments or maintenance procedures. -
Page 11: Disposal Of Waste
Meets relevant EU requirements. Electrical waste, see below Second class protection equipment. Double insulation Use certified eye and ear protection with a sufficient level of protection. Use certified respiratory protection with adequate level of protection Read the instructions before use. 10. -
Page 12: Ec Declaration Of Conformity
Subjects of declaration-product identification: Product: Angle Grinder Model No.: S1M-HJ2112B-125 Item No.: 28210 comply with the following harmonized standards, including their amending annexes, if any, by which conformity with the following harmonization provisions is declared: 2006/42/EC: EN 60745-2-3:2011+A2:2013+A11:2014+A12:2014+A13:2015;...
