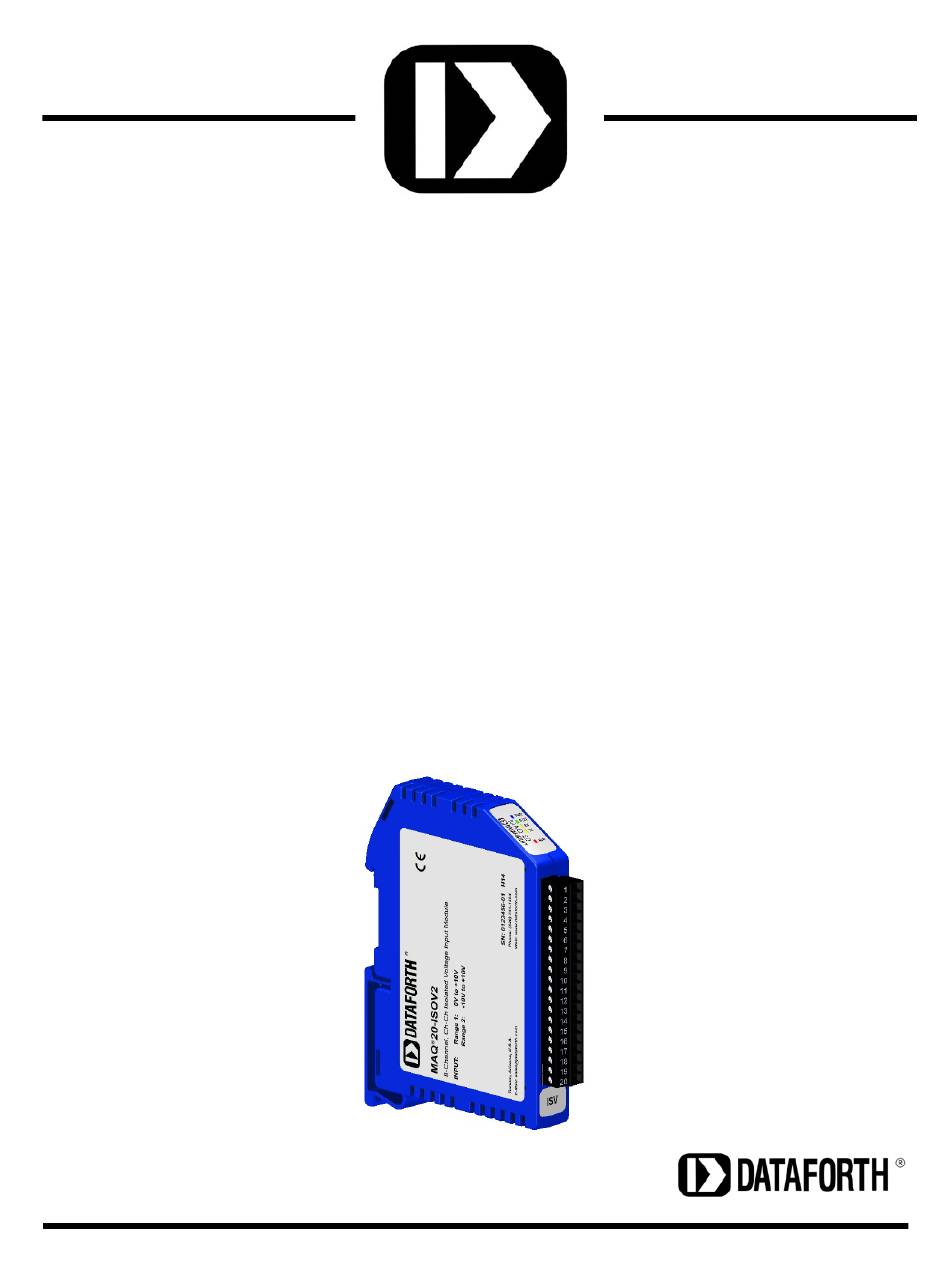

  • Page 1 ® Industrial Data Acquisition and Control System MA1062 MAQ20-ISOMV MAQ20-ISOVx MAQ20-ISOI Hardware User Manual...
  • Page 2 ISO9001:2015-Registered QMS The information in this manual has been checked carefully and is believed to be accurate; however, Dataforth assumes no responsibility for possible inaccuracies or omissions. Specifications are subject to change without notice. The information, tables, diagrams, and photographs contained herein are the property of Dataforth Corporation.

  • Page 3: Table Of Contents

    Burst Scan Mode ..........................20 16.0 Alarm Functions ..........................23 17.0 Setting and Monitoring Alarms ......................26 18.0 Signal Average, Minimum & Maximum ................... 28 19.0 Reset Functions ..........................29 20.0 MAQ20-ISOMV, MAQ20-ISOV2 & MAQ20-ISOI Address Map and Range Table ......31 Page iii...
  • Page 4 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual About Dataforth Corporation “Our passion at Dataforth Corporation is designing, manufacturing, and marketing the best possible signal conditioning, data acquisition, and data communication products. Our mission is to set new standards of product quality, performance, and customer service.” Dataforth Corporation, with more than a quarter ®...

  • Page 5: System Features

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual 1.0 System Features The MAQ20 Data Acquisition System encompasses more than 35 years of design excellence in the process control industry. It is a family of high performance, DIN rail mounted, programmable, multi- channel, industrially rugged signal conditioning I/O and communications modules.

  • Page 6: System Description And Documentation

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Distributed Processing Enables Even More Functionality • Output modules are programmable for user-defined waveforms • Discrete I/O modules have seven high level functions:  Pulse Counter  Frequency Counter  Waveform Measurement  Time Between Events ...
  • Page 7 MAQ20 modules are designed for installation in Class I, Division 2 hazardous locations and have a high level of immunity to environmental noise commonly present in heavy industrial environments. The MAQ20-ISOMV and MAQ20-ISOVx voltage input modules and MAQ20-ISOI current input modules interface to wide ranges of voltage and current signals. Each have eight input channels that are isolated channel-to-channel to 300Vrms continuous.

  • Page 8: Specifications

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual 3.0 Specifications ANALOG INPUT MODULE Typical at T = +25°C and +24V system power Model Number, Sensor Type & Input Range MAQ20-ISOMV1 0 to +100mV, ±100mV (default) MAQ20-ISOV1 0 to +1V, ±1V (default) MAQ20-ISOV2 0 to +10V, ±10V (default) MAQ20-ISOV3 0 to +20V, ±20V (default)

  • Page 9: Unpacking

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual 4.0 Unpacking Each MAQ20 Data Acquisition System component is shipped in electro-static discharge (ESD) protective packaging. Use appropriate ESD protection measures while unpacking. Check visually for physical damage. If physical damage is noted, file a claim with the shipping carrier and contact the factory.

  • Page 10: Module Installation And Removal

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual The terminal blocks can accept the following wire sizes: Solid Wire AWG 26 to AWG 16 Stranded Wire AWG 26 to AWG 16 6.0 Module Installation and Removal The MAQ20 I/O module package has been designed for easy insertion into and removal from a system and can mate with DIN rails mounted flush on continuous panels or plates.

  • Page 11: Led Indicators

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Figure 3: Possible System Configurations 7.0 LED Indicators A set of 5 LEDs on the top panel of the MAQ20 I/O modules indicate module power, operation, communication, and alarm status. Figure 4: LED Indicators LED Function and Troubleshooting Tips:...

  • Page 12: Module Identification And Status Registers

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual STAT Normal operation: GREEN, 1 Hz blinking Module Detect: A write to the Module Detect Register will force this LED to blink at 5Hz rate for 5 seconds so the module location in a system can be visually identified. Referring to the Address Map, this module register is at address 98, offset from the module base address.
  • Page 13 0, which is system register address 2000*R+100, where R is the module Registration Number. Refer to the MAQ20 I/O Module Registration section for further details. Table 2: MAQ20-ISOMV, MAQ20-ISOV, & MAQ20-ISOI Address Map Excerpt – Module Information Address Range 0 - 99: Module Information Start...

  • Page 14: Building A System

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual 9.0 Building a System An automated I/O module registration process reduces system setup to three basic steps: STANDARD SETUP PROCESS 1.) Install a MAQ20-BKPLx backbone in a DIN rail then insert a MAQ20-COMx module in the left- most position and apply power.

  • Page 15: Maintaining A System

    The system does not identify I/O modules by physical position on a backbone, only by registration sequence. MAQ20-940 ReDAQ Shape Software for MAQ20 provided by Dataforth shows a graphical representation of a system based on registration sequence and not by physical position. Tools within the software package allow the user to reassign and save Registration Numbers thereby making graphical representations match physical location for a single, local backbone and retain permanence.

  • Page 16: Expanding A System

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual ALTERNATE MAINTENANCE PROCESS 1.) With system power off, remove any I/O modules which are to be replaced. Replace the modules with others of the same or different model numbers. Modules can be installed in any vacant local or remote backbone position.

  • Page 17: Maq20 I/O Module Registration And Reading Input Signals

    The system does not identify I/O modules by physical position on a backbone, only by registration sequence. MAQ20-940 ReDAQ Shape Software for MAQ20 provided by Dataforth shows a graphical representation of a system based on registration sequence and not by physical position.
  • Page 18 In Burst Scan Mode, channels can be selectively enabled. MAQ20-ISOMV, MAQ20-ISOVx & MAQ20-ISOI Address Map is found at the end of this manual. An excerpt from the Address Map is shown below. Channel Data is stored starting at module register address 1000, which is system register address 2000*R+1000, where R is the module Registration Number.
  • Page 19 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Table 5: MAQ20-ISOMV, MAQ20-ISOVx, & MAQ20-ISOI Address Map Excerpt – Module Data Address Range 1000 - 1699: Module Data Start Read/ Number of Data Contents Description Data Range Address Write Registers type 1000 Channel Data...
  • Page 20 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Figure 5: MAQ20-940 ReDAQ Shape for MAQ20 Main Configuration Screen with Graphical System Representation To view the registration sequence, double-click on the MAQ20-COMx graphic to obtain the system panel shown in Figure 6. Figure 6: Module Registration using MAQ20-940 ReDAQ Shape for MAQ20 Registration Numbers listed in the left column refer to the position where the software has registered the I/O module.

  • Page 21: Range Selection, Channel Enable & Reading Signals

    -22mA to +22mA -31538 to 31538 The MAQ20-ISOMV, MAQ20-ISOVx & MAQ20-ISOI Address Map is found at the end of this manual. An excerpt from the Address Map is shown below. Input Range is stored starting at module register address 0, which is system register address 2000*R+100, where R is the module Registration Number.
  • Page 22 Write Registers type Input Range Range for each of 8 channels 0 to 2 INT16 Table 8: MAQ20-ISOMV, MAQ20-ISOVx, & MAQ20-ISOI Address Map Excerpt – Module Data Address Range 1000 - 1699: Module Data Start Read/ Number of Data Contents...

  • Page 23: Channel Scan Rate & System Throughput

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual 5.) Read from register address 4000+1000 = 5000 the data from Channel 0 6.) Read from register address 4000+1001 = 5001 the data from Channel 1 7.) Read from register address 4000+1004 = 5004 the data from Channel 4 8.) Read from register address 4000+1005 = 5005 the data from Channel 5...

  • Page 24: Burst Scan Mode

    Samples), and Burst Scan Rate. Burst Read, Burst Status and Burst Index are used for data transfer operations. MAQ20-ISOMV, MAQ20-ISOVx & MAQ20-ISOI Address Map is found at the end of this manual. An excerpt from the Address Map is shown below. Burst Scan Mode settings are stored starting at module register address 660, which is system register address 2000*R+ 660, where R is the module Registration Number.
  • Page 25 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Address Range 100 - 699: Module Configuration Start Read/ Number of Data Contents Description Data Range Address Write Registers type Burst Scan Mode Channel Enable. Burst Scan 0 = Disable 0 or 1 INT16 Channel Enable 1 = Enable Default = 0.
  • Page 26 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual If there is a mismatch, write to the Burst Read Index to set the index back and read any missing data. Burst scan mode channel data stored in the module is circular. If all eight module channels are enabled for burst capture, Channel 0 data will be stored at indices 0, 8, 16…, Channel 1 data at...

  • Page 27: Alarm Functions

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual The captured data will remain in the MAQ20-BRDG1 module memory and can be retrieved again using the steps above. Data is volatile and will be erased upon module power cycle or reset command. To capture a new set of data, write a 1 to module register 1100.
  • Page 28 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Low Limit Sets the value for the Low limit in counts. Alarm status is stored in a register. High Low Deadband Used for the High and/or Low limits to prevent false tripping or alarm chatter for noisy signals.
  • Page 29 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Figure 6: Alarm Parameters and Functionality Page 25 of 39...

  • Page 30: Setting And Monitoring Alarms

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual 17.0 Setting and Monitoring Alarms The MAQ20-ISOMV, MAQ20-ISOVx & MAQ20-ISOI Address Map is found at the end of this manual. An excerpt from the Address Map is shown below. Alarm Parameters are stored starting at module register address 700, which is system register address 2000*R+700, where R is the module Registration Number.
  • Page 31 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Alarm Configuration Value = Alarm Type Code + Alarm Limit Code Alarm Type Code Alarm Limit Code Tracking 1000 Low Limit Latching 2000 High Limit High Low Limits Low-Low Limit High-High Limit High-High Low-Low Limits Once alarm configuration is complete, store the data to module non-volatile memory by writing a 1 to register 709.

  • Page 32: Signal Average, Minimum & Maximum

    Average = Average + Average Weight The MAQ20-ISOMV, MAQ20-ISOVx & MAQ20-ISOI Address Map is found at the end of this manual. An excerpt from the Address Map is shown below. Signal Average and related parameters are stored starting at module register address 120, which is system register address 2000*R+120, where R is the module Registration Number.

  • Page 33: Reset Functions

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual 1.) Write to register address 8000+124 = 8124 a data value of 8 to set the Average Weight 2.) Read from register address 8000+1034 = 9034 the min data from Channel 4 3.) Read from register address 8000+1054 = 9054 the max data from Channel 4 4.) Read from register address 8000+1074 = 9074 the average data from Channel 4 with...
  • Page 34 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Table 2: Parameters Affected by Standard Reset and Reset-to-Default RESET TYPE PARAMETERS Disables all Alarms, Clears Alarm Status Resets Alarm Configuration, Limits, and Deadbands to values stored in module memory. Resets Data Minimum to –f.s., Data Maximum to +f.s. and Average Data...

  • Page 35: Maq20-Isomv, Maq20-Isov2 & Maq20-Isoi Address Map And Range Table

    MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual 20.0 MAQ20-ISOMV, MAQ20-ISOV2 & MAQ20-ISOI Address Map and Range Table The table in this section outlines the MAQ20-ISOMV, MAQ20-ISOV2 and MAQ20-ISOI address space. Data in these registers contains all permanent and user settable information for module configuration, status, operation of all functions, data read/write, and data storage.
  • Page 36 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Table 3: MAQ20-ISOMV, MAQ20-ISOV, & MAQ20-ISOI Address Map Address Range 0 - 99 : Module Information Start Read/ Number of Data Contents Description Data Range Address Write Registers type MAQ20-ISOMV1 MAQ20-ISOV1 MAQ20-ISOV2 Characters, Device MAQ20-ISOV3 Numbers, "-"...
  • Page 37 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Address Range 100 - 699: Module Configuration Start Read/ Number of Data Contents Description Data Range Address Write Registers type Range for each of 8 Input Range 0 to 2 INT16 channels Save to Module...
  • Page 38 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Address Range 700 - 999: Alarm Configuration Start Read/ Number of Data Contents Description Data Range Address Write Registers type Write 0 to the corresponding Alarm Status, channel bit to clear a Latched 0 to 255...
  • Page 39 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Address Range 1000 - 1699: Module Data Start Read/ Number of Data Contents Description Data Range Address Write Registers type 1000 Channel Data Data for each of 8 Channels -32,768 to 32,767 INT16 Status of Low-Low Alarm...
  • Page 40 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Address Range 1700 - 1899: Input Ranges Start Read/ Number of Data Contents Description Data Range Address Write Registers type 1700 Range Count Number of ranges supported INT16 1710 Range 0 Engineering -fs. -32,768 to 32,767...
  • Page 41 Command Too Long UART RX Error Counter 1910 UART RX Error Command received in invalid 0 to 65,535 INT16 state Table 4: MAQ20-ISOMV, MAQ20-ISOVx, MAQ20-ISOI Range Table Range Input Equivalent Counts Over/Under Range Equivalent Counts -100mV to +100mV -28671 to 28671...
  • Page 42 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual Table 5: MAQ20-ISOMV, MAQ20-ISOVx, MAQ20-ISOI Special Count Readings Reading Condition 32001 Positive Differential Input Exceeded -32001 Negative Differential Input Exceeded Page 38 of 39...
  • Page 43 MA1062 MAQ20-ISOMV/-ISOV/-ISOI Hardware User Manual DATAFORTH WARRANTY To view the current Dataforth Corporation Warranty, please click on the link below for the Dataforth Standard Terms and Conditions of Sale Applying to Products Sold by Dataforth Corporation. The Warranty in its entirety is Section 3. Please check this link periodically for updates.
