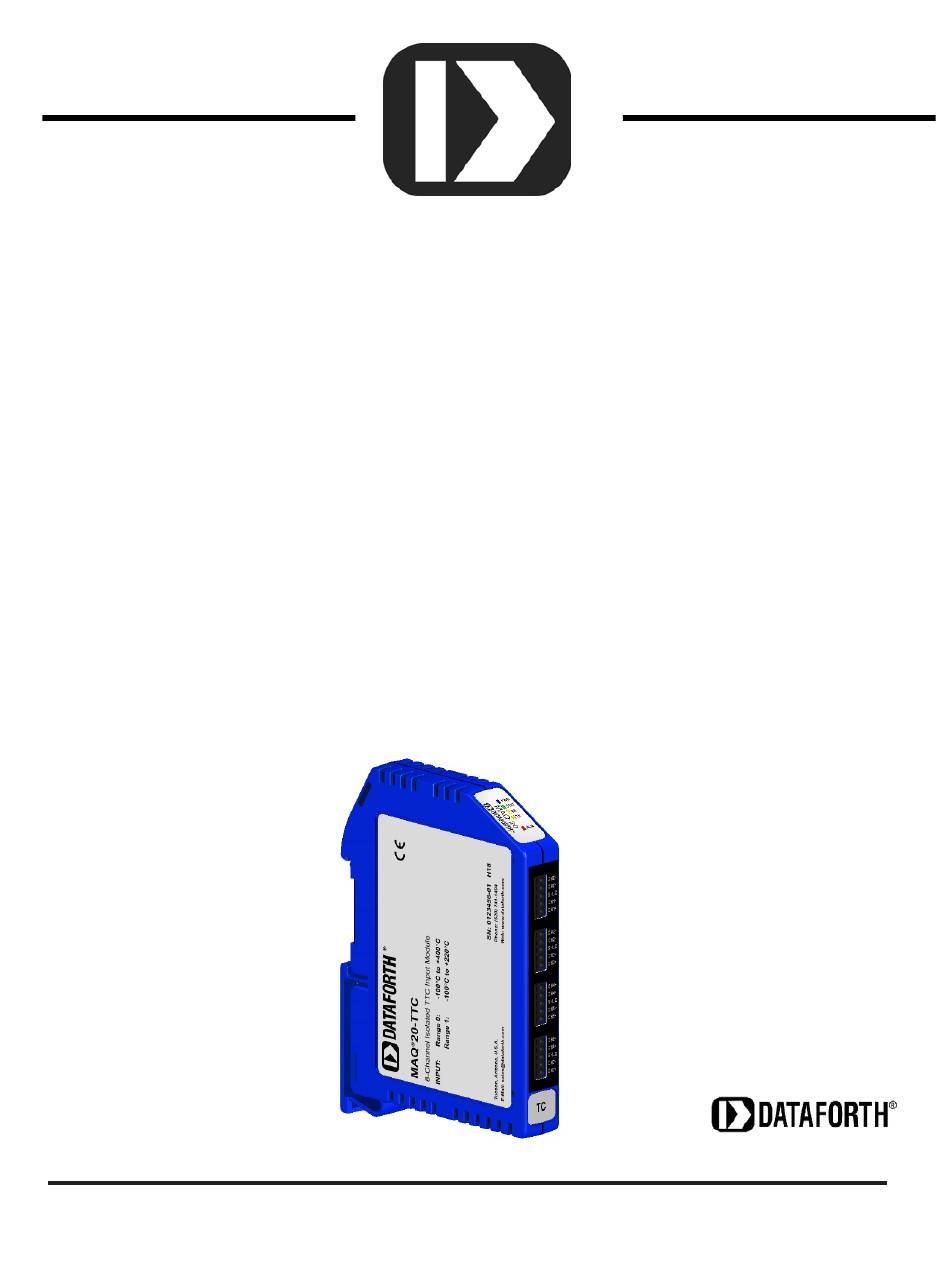

- Page 1 ® Industrial Data Acquisition and Control System MA1047 MAQ20-JTC MAQ20-KTC MAQ20-TTC MAQ20-RSTC Hardware User Manual...
- Page 2 ISO9001:2015-Registered QMS The information in this manual has been checked carefully and is believed to be accurate; however, Dataforth assumes no responsibility for possible inaccuracies or omissions. Specifications are subject to change without notice. The information, tables, diagrams, and photographs contained herein are the property of Dataforth Corporation.
-
Page 3: Table Of Contents
13.0 Signal Averaging ..........................20 14.0 Reset Functions ..........................21 15.0 Module Identification and Status Registers ..................22 16.0 LED Indicators ..........................23 17.0 Specifications ..........................25 18.0 MAQ20-JTC, -KTC, -TTC and -RSTC Address Map and Range Table ......... 26... - Page 4 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual About Dataforth Corporation “Our passion at Dataforth Corporation is designing, manufacturing, and marketing the best possible signal conditioning, data acquisition, and data communication products. Our mission is to set new standards of product quality, performance, and customer service.” Dataforth Corporation, with more than a quarter ®...
-
Page 5: System Features
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 1.0 System Features The MAQ20 Data Acquisition System encompasses more than 35 years of design excellence in the process control industry. It is a family of high performance, DIN rail mounted, programmable, multi- channel, industrially rugged signal conditioning I/O and communications modules. -
Page 6: System Description And Documentation
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual Distributed Processing Enables Even More Functionality • Output modules are programmable for user-defined waveforms • Discrete I/O modules have seven high level functions: Pulse Counter Frequency Counter Waveform Measurement Time Between Events ... - Page 7 For details on installation, configuration, and system operation, refer to the manuals and software available for download from www.dataforth.com. This includes, but is not limited to: MA1036 MAQ®20 Quick Start Guide MA1040 MAQ®20 Communications Module Hardware User Manual...
-
Page 8: Unpacking
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 3.0 Unpacking Each MAQ20 Data Acquisition System component is shipped in electro-static discharge (ESD) protective packaging. Use appropriate ESD protection measures while unpacking. Check visually for physical damage. If physical damage is noted, file a claim with the shipping carrier and contact the factory. -
Page 9: Installation
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual The shield terminals are connected to the Field Side common and are isolated from the Bus. If shield drain to system ground is required, this connection must be made external to the module. 5.0 Installation ®... -
Page 10: Building A System
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual Figure 3: Possible System Configurations 6.0 Building a System An automated I/O module registration process reduces system setup to three basic steps: STANDARD SETUP PROCESS 1.) Install a MAQ20-BKPLx backbone in a DIN rail then insert a MAQ20-COMx module in the left- most position and apply power. -
Page 11: Maintaining A System
Registration Numbers will always remain the same. I/O modules in a system are identified in general by their model number (MAQ20-VDN, MAQ20-JTC, etc.) and uniquely by their Serial Number printed on the side label (i.e. 1234567-89). When I/O modules are installed in the system, only a general identifier is visible on the front of the module (V, I, TCPL, etc.). -
Page 12: Expanding A System
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual the module with another having a different model number. This module can be installed in any vacant local or remote backbone position. Observe that the green Power LED is on and that there is communications activity on the TX and RX LEDs. Allow 1 second for registration. This module now has the same Registration Number as the one removed. - Page 13 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual STANDARD EXPANSION PROCESS 1.) Turn system power on and observe communications activity on the I/O modules. 2.) Add a single MAQ®20 I/O module in any local or remote backbone position. Observe that the green Power LED is on, and communications activity is seen on the TX and RX LEDs. Allow 1 second for registration.
-
Page 14: Maq®20 I/O Module Registration
MAQ20-940 - ReDAQ Shape Software for MAQ 20 and MAQ20-945 - MAQ Configuration Software Tool provided by Dataforth show a graphical representation of a system based on registration sequence and not by physical position. Tools within each software package allow the user to reassign Registration Numbers thereby making graphical representations match physical location for a single, local backbone. - Page 15 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual Read from register addresses 12000 + 1000 to 1007 = 12000 to 12007 the Current Data from Channels 0-7. ® ® The MAQ20-940 - ReDAQ Shape Software for MAQ 20 and MAQ20-945 - MAQ 20 Configuration Software Tool both have a utility which allows the user to reassign Registration Numbers to I/O Modules in a system.
- Page 16 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual Registration Numbers are listed in the left column. To change the Registration Number of an I/O module, click the box with the Registration Number in the left column, select the ‘Reorder Modules’ box, then use the Up and Down buttons to move the module within the sequence. The system automatically reassigns the I/O modules above and below the one moved.
-
Page 17: Range Selection And Channel Enable
10.0 Range Selection and Channel Enable The MAQ20-JTC, -KTC, -TTC and –RSTC modules have two to four user selectable input ranges depending on model. Input ranges are selectable on a per-channel basis. Over-range and Under- range up to 2% beyond the standard input values will be measured. - Page 18 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual The Address Map for the MAQ20-xTC Type x Thermocouple Input Modules is found at the end of this manual. An excerpt from the Address Map is shown below. Input Range is stored starting at address 100, Channel Enable is stored starting at address 140, and Channel Data is stored starting at address 1000.
- Page 19 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 1.) Write to register address 4000 + 100 = 4100 a data value of 1 to set Ch 0 input range -100 to 651°C 2.) Write to register address 4000 + 101 = 4101 a data value of 1 to set Ch 1 input range -100 to 651°C...
-
Page 20: Alarm Functions
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 11.0 Alarm Functions ® The powerful alarm functions in the MAQ 20 Data Acquisition System provide essential monitoring and warnings to ensure optimum process flow and fail-safe applications. Alarms have the following parameters which can be configured:... - Page 21 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual See Figure 7 below for graphical representations of alarm parameters and functionality. Figure 7: Alarm Parameters and Functionality Page 17 of 31...
-
Page 22: Setting And Monitoring Alarms
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 12.0 Setting and Monitoring Alarms The Address Map for the MAQ20-xTC Type x Thermocouple Input Modules is found at the end of this manual. An excerpt from the Address Map is shown below. Alarm parameters are stored in registers at addresses 700 –... - Page 23 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual If the Alarm Configuration Value = 0, the Alarm is Off (Disabled). The Alarm for a given channel cannot be turned On (Enabled) until a valid, non-zero value is written to the Alarm Configuration register.
-
Page 24: Signal Averaging
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 13.0 Signal Averaging Signal averaging can be set on a per-channel basis by configuring the Average Weight. Average Weight is calculated as 2^x where x = 0 to 15 and the default value is x = 0. The running average is then calculated as follows: Sampled Value −... -
Page 25: Reset Functions
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual Example: A MAQ20-KTC module with serial number 1234567-89 is installed in a system and has been assigned a Registration Number of 4. Set the Average Weight of Channel 4 to 8, then read the following parameters for Channel 4: Current Data, Min Data, Max Data, Average Data and the last 8 readings. -
Page 26: Module Identification And Status Registers
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual NOTE: ® The MAQ 20 I/O modules send a response to the reset register write before carrying out the reset. This means the module will be unresponsive to commands for approximately 3 seconds. Power-On-Reset (POR) and Brownout ®... -
Page 27: Led Indicators
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 16.0 LED Indicators ® A set of 5 LEDs on the top panel of the MAQ 20 I/O modules indicate module power, operation, communication, and alarm status. Figure 8: MAQ®20 Faceplate LED Function and Troubleshooting Tips:... - Page 28 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual RX, TX Normal Operation – YELLOW, rapid blinking during communication with MAQ20-COMx module LED Constant Off: Abnormal operation or no communications to MAQ20-COMx module Verify communications by sending a request for data. Note that the fast communications rate used on the system backbone will result in the LED appearing dim due to short blinking cycle.
-
Page 29: Specifications
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 17.0 Specifications ® 20 THERMOCOUPLE INPUT MODULE Typical at Ta = +25°C and +24V system power Model Number Description MAQ20-JTC 8-channel, Type JTC, Differential Input -100°C to +760°C (Default) -100°C to +393°C, -100°C to +199°C... -
Page 30: Maq20-Jtc, -Ktc, -Ttc And -Rstc Address Map And Range Table
MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual 18.0 MAQ20-JTC, -KTC, -TTC and -RSTC Address Map and Range Table Tables in this section outline the MAQ20-xTC address space. Data in these registers contains all permanent and user settable information for module configuration, status, operation of all functions, data read/write, and data storage. - Page 31 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual Table 3: MAQ20-JTC, -KTC, -TTC, -RSTC Address Map Address Range 0 - 99: Module Information Start Read/ Number of Data Contents Description Data Range Address Write Registers type Characters, Device MAQ20-xTC Numbers, "-" ASCII Description...
- Page 32 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual Address Range 700 - 999: Alarm Configuration Start Read/ Number of Data Contents Description Data Range Address Write Registers type To clear a Latched alarm, write Alarm Status, a 0 to the corresponding 0 to 65,535...
- Page 33 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual Address Range 1700 - 1899: Input Ranges Start Read/ Number of Data Contents Description Data Range Address Write Registers type Range 1700 Number of ranges supported 1 to 4 INT16 Count 1710 Range 0 Engineering -fs.
- Page 34 INT16 Too Long UART RX Error Counter. Command 1910 UART RX Error 0 to 65,535 INT16 received in invalid state Table 4: MAQ20-JTC, -KTC, -TTC and -RSTC Range Table Standard Input Equivalent Equivalent Deg C per Range Temperature Counts Over/Under Range...
- Page 35 MA1047 MAQ20-JTC/-KTC/-TTC/-RSTC Hardware User Manual DATAFORTH WARRANTY To view the current Dataforth Corporation Warranty, please click on the link below for the Dataforth Standard Terms and Conditions of Sale Applying to Products Sold by Dataforth Corporation. The Warranty in its entirety is Section 3. Please check this link periodically for updates.
