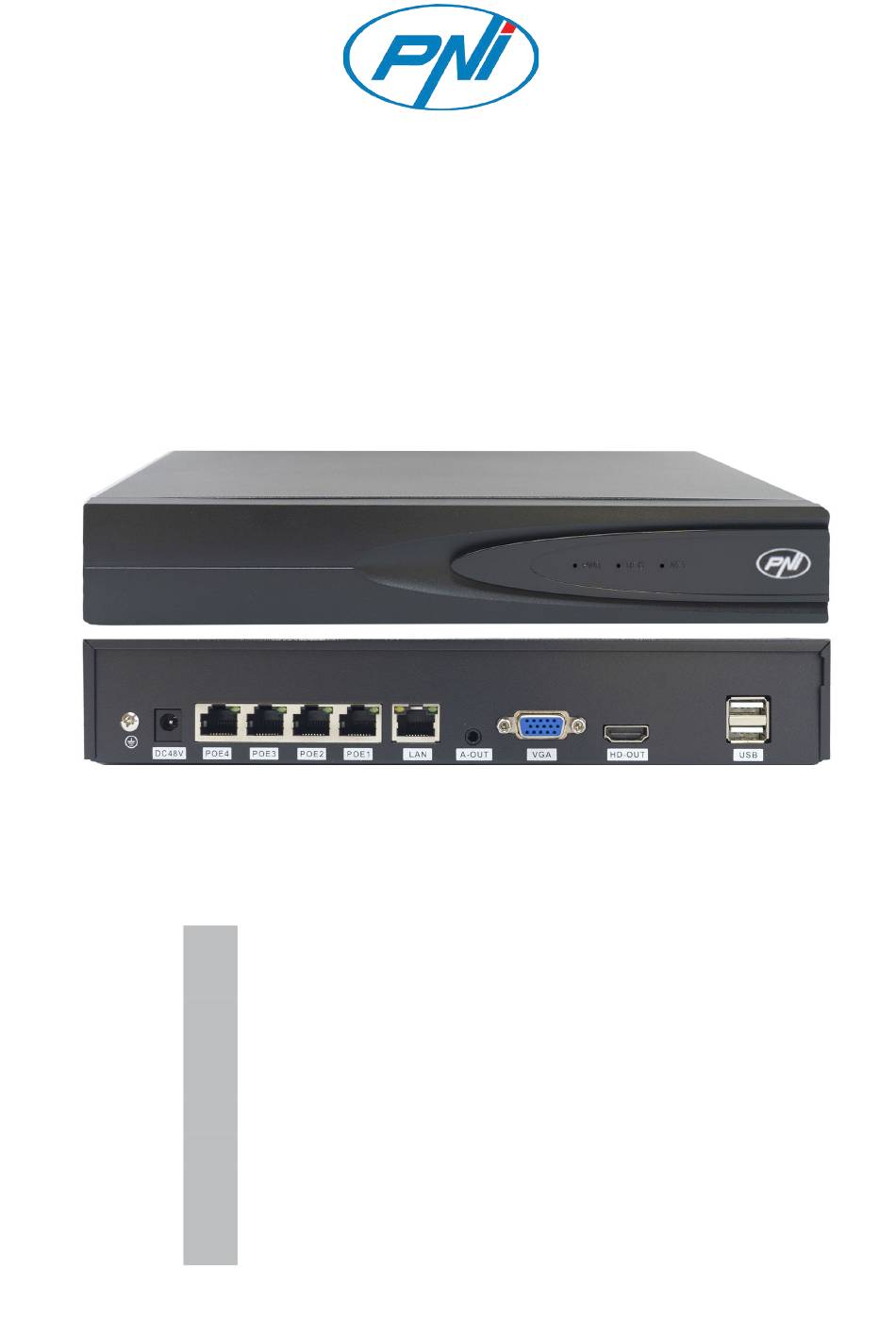

NVR PNI House IP810
EN User manual
BG Ръководство за употреба
DE Benutzerhandbuch
ES Manual de usuario
FR Manuel utilisateur
H Használati utasítás
IT Manuale utente
NL Handleiding
PL Instrukcja obsługi
R
Manual de utilizare
3
23
24
25
26
27
28
29
30
31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the House IP810 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PNI House IP810

Summary of Contents for PNI House IP810

  • Page 1 NVR PNI House IP810 EN User manual BG Ръководство за употреба DE Benutzerhandbuch ES Manual de usuario FR Manuel utilisateur H Használati utasítás IT Manuale utente NL Handleiding PL Instrukcja obsługi Manual de utilizare...
  • Page 3 Main functions • Simultaneous recording in real time on several channels, remote playback and configuration from PC and Smartphone applications. • Input 4 POE IPC cameras (with direct power supply) •IEEE802.3af/la standard support, compatible with power receiving equipment (PD) that supports IEEE802.3af/at •...

  • Page 4: Technical Specifications

    Technical specifications Number of channels 4 / 9 / 10 IP 10Ch x 4K ( 4 CH POE + 6CH IP) Registration resolution 9 Ch x 4K / 4 CH x 4K Playback resolution Max. 4K (HDMI) Max. 1080P (VGA) Video outputs 1 x VGA / 1 x HDMI Audio output...
  • Page 5 Instructions for use Product description DC 52V 5 VGA output POE camera input 6 HDMI output 7 USB 4 Audio output Installing the HDD Before the first use, please install the HDD. 2 SATA hard disks with a maximum capacity of 14TB can be installed in the housing of the recording unit (the HDD is not included in the package).
  • Page 6 system settings for minimal operation. Notes: 1. Check if the input voltage corresponds to the recommended voltage of the device. The supply voltage is 230V±10% / 50 Hz 2A. 2. We suggest you use a UPS device to protect the device from voltage variations and for autonomy during short power interruptions from the supplier.
  • Page 7 Check/modify the network settings according to your network, or check DHCP, Adapt if IP conflict and Auto-obtain DNS to retrieve automatic settings from the router. 3. If you have installed a storage unit (HDD) in the NVR, the model and capacity will appear in this menu (we only recommend dedicated devices for surveillance systems and for 24/7 operation).
  • Page 8 4. This menu is dedicated to adding IP cameras connected (and powered according to the indications) in the same network as the NVR. Here you can update and/or add the list of rooms from the same network. 5. This last step of the quick guide will ask you to change the factory password of the NVR with your own private one.
  • Page 9 one capital letter and at least one number. From this menu you can also activate a drawing password. Note: For the security of your system, we recommend changing the password after the first login in the system and writing this password separately in an address book or a safe place to avoid forgetting it.
  • Page 10 Test the network To check the connection to the network/server you can check in 2 ways: 1. System/Network settings / Advanced where in the Status submenu you will find: - Internet ready, support alarm notifications - Internet connection successful; "Network blocked" - Network/internet unavailable Maintain/Network detection where you have several tools to check the connection status to the local network, the Internet and the server.
  • Page 11 If the message displays "Network blocked" or "Connect failed" check: - network cable - functionality - the port in the router/switch where you inserted the cable if it has internet access - if the network settings in the System/Network settings/General menu are correct.
  • Page 12 „Event” – Searching and accessing the list of recorded events according to the AI settings made in the dedicated menu: humanoid detection, electronic fence, Cross-boundary, Off-duty detection, Mask, Face detection. As secondary functions on each individual channel we find: "Quick playback", "PTZ Control", "Zoom", "Sound control", "Camera information", "Bidirectional sound", "Snapshot", "Camera information"...
  • Page 13 Playback menu This menu allows 2 main actions "Common playback" - This menu allows the playback of recordings according to searches made by camera and date: Year, Month, week, day.
  • Page 14 "Smart playback" – This menu allows searching and intelligent playback of recordings depending on the searches performed by camera and type of event: Motion event, Humanoid event, Eelectronic fence, Cross-boundary, Off-duty detection, Passenger flow. In addition to these main actions, we also have secondary playback/navigation actions on the selected video clips.
  • Page 15 „AI search” – This menu allows advanced searches based on AI events...
  • Page 16 Camera menu This menu allows access to 7 submenus with camera settings: 1. "Camera" – This submenu provides access to the IPC camera management part: Add, configure, delete, etc. (if available) 2. "Display" - This submenu provides access to the management part of: Displaying the name and date for each individual room;...
  • Page 17 Storage menu This menu allows access to 3 submenus with recording settings: 1. "Record schedule" - this submenu allows configuring the recording schedule for each channel/camera separately: planned, motion detection, smart or off; 2. "HDD" - this submenu allows displaying the status of the internal storage unit: total space, remaining space, estimated recording time, etc.
  • Page 18 System menu This menu allows access to 6 submenus with system settings: 1. "General settings" - here we find general and advanced system settings such as: Language, date, name, ID, number of cameras, output resolution, etc.
  • Page 19 „User settings” – this submenu allows editing/creating/managing users and passwords that access the system 2. „Network settings” – this submenu allows the configuration of general and advanced network/server/DID series and mobile application settings.
  • Page 20 3. "Event settings" - here we find the event settings part available depending on the equipment level of the surveillance cameras. 4. "Preview settings" - we find settings for displaying images, alarms, audio notifications and camera groups.
  • Page 21 5. „Voice setting” – this sub-menu allows configuring the audio alerts that the NVR can transmit on the audio output.
  • Page 22 Maintain menu This menu allows access to 7 submenus with information about the system and administrative settings: 1. "Information" - contains information about system status, camera status, recording status, network status, storage media status (HDD), connected users, installation. 2. "Log" - here we find a historical log with all the events and system changes made in the past.

  • Page 23: Технически Спецификации

    Технически спецификации Брой канали 4 / 9 / 10 IP Резолюция за 10Ch x 4K ( 4 CH POE + 6CH IP) регистрация 9 Ch x 4K / 4 CH x 4K Резолюция на Макс. 4K (HDMI) Макс. 1080P (VGA) възпроизвеждане...

  • Page 24: Technische Spezifikationen

    Technische Spezifikationen Anzahl der Kanäle 4 / 9 / 10 IP 10Ch x 4K ( 4 CH POE + 6CH IP) Registrierungsauflösung 9 Ch x 4K / 4 CH x 4K Wiedergabeauflösung Max. 4K (HDMI) max. 1080P (VGA) Videoausgänge 1 x VGA / 1 x HDMI Audioausgang 1 x Klinke 3,5 Zoll, HDMI-Ausgang 1 x RJ45 10/100 MBit/s selbstanpassende...

  • Page 25: Especificaciones Técnicas

    Especificaciones técnicas Número de canales 4 / 9 / 10 IP 10Ch x 4K ( 4 CH POE + 6CH IP) Resolución de registro 9 Ch x 4K / 4 CH x 4K Resolución de Máx. 4K (HDMI) Máx. 1080P (VGA) reproducción Salidas de vídeo 1xVGA/1xHDMI...

  • Page 26: Spécifications Techniques

    Spécifications techniques Nombre de canaux 4 / 9 / 10 IP 10Ch x 4K ( 4 CH POE + 6CH IP) Résolution d'inscription 9 Ch x 4K / 4 CH x 4K Résolution de lecture Max. 4K (HDMI) Max. 1080P (VGA) Sorties vidéo 1 x VGA / 1 x HDMI Sortie audio...

  • Page 27: Műszaki Adatok

    Műszaki adatok Csatornák száma 4 / 9 / 10 IP 10Ch x 4K ( 4 CH POE + 6CH IP) Regisztrációs határozat 9 Ch x 4K / 4 CH x 4K Lejátszási felbontás Max. 4K (HDMI) max. 1080p (VGA) Videó kimenetek 1 x VGA / 1 x HDMI Hang kimenet 1 x jack 3,5"...

  • Page 28: Specifiche Tecniche

    Specifiche tecniche Numero di canali 4 / 9 / 10 IP Risoluzione della 10Ch x 4K ( 4 CH POE + 6CH IP) registrazione 9 Ch x 4K / 4 CH x 4K Risoluzione della Massimo. 4K (HDMI)Massima. 1080P (VGA) riproduzione Uscite video 1 VGA / 1 HDMI...

  • Page 29: Technische Specificaties

    Technische specificaties Aantal kanalen 4 / 9 / 10 IP 10Ch x 4K ( 4 CH POE + 6CH IP) Registratie resolutie 9 Ch x 4K / 4 CH x 4K Afspeelresolutie Max. 4K (HDMI)Max. 1080P (VGA) Video-uitgangen 1 x VGA / 1 x HDMI Audio uitgang 1 x aansluiting 3,5”, HDMI-uitgang 1 x RJ45 10/100 Mbps zelfaanpassende...

  • Page 30: Specyfikacja Techniczna

    Specyfikacja techniczna Liczba kanałów 4 / 9 / 10 IP 10Ch x 4K ( 4 CH POE + 6CH IP) Uchwała rejestracyjna 9 Ch x 4K / 4 CH x 4K Rozdzielczość odtwarzania Maks. Maks. 4K (HDMI) 1080P (VGA) Wyjścia wideo 1 x VGA / 1 x HDMI Wyjście audio 1 x gniazdo jack 3,5”, wyjście HDMI...
  • Page 31 Functii principale • Inregistrare simultana in timp real pe mai multe canale, redare si configurare de la distanta din aplicatii de PC si Smartphone. • Intrare 4 camere POE IPC (cu alimentare directa) • Suport IEEE802.3af/la standard, compatibil cu echipamentele de receptie a energiei (PD) care accepta IEEE802.3af/at •...
  • Page 32 Specificatii tehnice Numar canale 4 / 9 / 10 IP 10 canale x 4K (4 canale POE + 6 Rezolutie inregistrare canale IP) 9 canale x 4K / 4 CH x 4K Max. 4K pe iesirea HDMI Rezolutie de redare Max.
  • Page 33 Dimensiuni 255 x 210 x 40 mm Temperatura de lucru -26°C ~ +80°C Instructiuni de utilizare Descriere produs DC 52V 5 Iesire VGA Intrare camere POE 6 Iesire HDMI 7 USB 4 Iesire Audio Instalarea unitatii de stocare Inainte de prima utilizare, va rugam sa instalati unitatea de stocare. In carcasa unitatii de inregistrare pot fi instalate 2 hard disk-uri SATA cu o capacitate maxima de 14TB (HDD-ul nu este inclus in pachet).
  • Page 34 acces la internet • LED-ul „REC” se va aprinde daca aveti conectat un HDD si inregistrarea este pornita. Pe ecran va aparea Ghidul rapid de configurare care va va ajuta sa faceti setari rapide ale sistemului pentru functionare minimala. Note: 1.
  • Page 35 Pasii de urmat din ghidul rapid de instalare: Setati ora, data, fusul orar, limba si numarul de camere de instalat. Verificati/modificati setarile de retea in functie de reteaua dumneavoastra, sau bifati DHCP, Adapt if IP conflict si Auto-obtain DNS pentru a prelua setari automate din router.
  • Page 36 3. Daca ati instalat o unitate de stocare(Hdd) in NVR in acest meniu va aparea modelul si capacitatea ( recomandam doar dispozitive dedicate pentru sisteme de supraveghere si pentur functionare 24/7) 4. Acest meniu este dedicat adaugarii de camere cu IP conectate ( si alimentate confirm indicatiilor) in aceeasi retea cu NVR-ul.
  • Page 37 5. Acest ultim pas al ghidului rapid va solicita sa schimbati parola de fabrica a NVR-ului cu una privata proprie. Aceasta trebuie sa fie din 8-16 caractere, minim o litera cu majuscule si minim o cifra. Din acest meniu puteti deasemeni activa o parola de tip desen.
  • Page 38 Test retea Pentru verificarea conexiunii la retea/server puteti verifica in 2 moduri: 1. System/Network settings / Advanced unde in submeniul Status veti gasi: Internet ready, suport alarm notifications – Conexiune la internet reusita; „Network blocked” – Retea/internet indisponibila Maintain/Network detection unde aveti cateva instrumente de verificare stare conexiune la reteaua locala, la internet si la server.
  • Page 39 In cazul in care mesajul afiseaza varianta „Network blocked” sau „Connect failed” verificati: cablul de retea - functionalitate portul din router/switch in care ati introdus cablul daca are acces la internet daca setarile de retea din meniul System/Network settings/General sunt corecte.
  • Page 40 Ca si functii secundare pe fiecare canal in parte regasim: „Quick playback”, „PTZ Control”, „Zoom”, „Sound control”, „Camera information”, „Sunet bidirectional”, „Snapshot”, „Camera information” „Face” – Cautarea listei de evenimente de detectie faciala: Whitelist + Blacklist + Visitor, Stranger...
  • Page 41 Meniu Playback Acest meniu permite 2 actiuni principale „Common playback” – Acest meniu permite redarea inregistrarilor in functie de cautarile efectuate dupa camera si data: An, Luna, saptamana, zi „Smart playback” – Acest meniu permite cautarea si redarea inteligenta a inregistrarilor in functie de cautarile efectuate dupa camera si tip de eveniment: Motion event, Humanoid event, Eelectronic fence, Cross-boundary, Off-duty detection, Passenger flow...
  • Page 42 O alta functie importanta ce se regaseste in acest meniu este cea de „Backup” – salvare inregistrari pe suport de stocare extern ( Stick sau Hdd extern USB) Meniu AI Acest meniu permite 2 actiuni principale „Face Library magagement” – Acest meniu permite gestionarea /cautarea evenimentelor de tip detectie si salvare faciala ( fata om) 2.
  • Page 43 „AI search” – Acest meniu permite efectuarea de cautari avansate in functie de evenimentele AI Meniu Camera Acest meniu permite accesul a 7 submeniuri cu setari ale camerelor: „Camera” – Acest submeniu ofera acces la partea de gestiune camere IPC: Adaugare, configurare, stergere, etc.
  • Page 44 preluat de la camera( daca este disponibila) 6. „PTZ” - Acest submeniu ofera acces la partea de gestiune a miscarii camerei ( daca este disponibila) „Upgrade from Cloud” - Acest submeniu ofera acces la partea de gestiune a actualizarii firmware de pe server ( daca este disponibila) Meniu Storage Acest meniu permite accesul la 3 submeniuri cu setari de inregistrare: „Record schedule”...
  • Page 45 4. „All files” - Acest meniu permite cautarea inregistrarilor video / pozelor dupa perioada selectata : Data inceput – Data sfarsit. Acest meniu permite si salvarea inregistrarilor selectate pe supot de stocare extern.
  • Page 46 Meniu System Acest meniu permite accesul la 6 submeniuri cu setari de sistem: „General settings” – aici gasim setari generale si avansate ale sistemului cum ar fi: Limba, data, nume, ID, numar camere, rezolutie de iesire, etc. 2. „User settings” – acest submeniu permite editarea/crearea/gestiunea utilizatorilor si a parolelor care acceseaza sistemul...
  • Page 47 3. „Network settings” – acest submeniu permite configurarea setarilor generale si avansate de retea/server/serie DID si aplicatie de mobil. „Event settings” – aici regasim partea de setari evenimente disponibila in functie de nivelul de echipare al camerelor de supraveghere.
  • Page 48 5. „Preview settings” – regasim setari de afisare a imaginilor , a alarmelor, a notificarilor audio si a grupurilor de camere. 6. „Voice setting” – acest submeniu permite configurarea alertelor audio pe care NVR-ul le poate transmite pe iesirea audio.
  • Page 49 Meniu Maintain Acest meniu permite accesul la 7 submeniuri cu informatii despre sistem si setari administrative: „Information” – contine informatii despre stare sistem, stare camere, stare inregistrari, stare retea, stare suport de stocare(HDD), utilizatori conectati, instalare. 2. „Log” – aici regasim un jurnal istoric cu toate evenimentele si modificarile de sistem efectuate in trecut.
  • Page 50 7. „Maintenance” – Acest submeniu permite o mentenanta regulata – repornire programata a sistemului odata la o anumita perioada setata de timp.
  • Page 51 Declaración UE de conformidad simplificada ONLINESHOP SRL declara que el NVR PNI House IP810 cumple con la Directiva EMC 2014/30/EU y la Directiva RED 2014/53/EU. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección de Internet: https://www.mypni.eu/products/9899/download/certifications...
