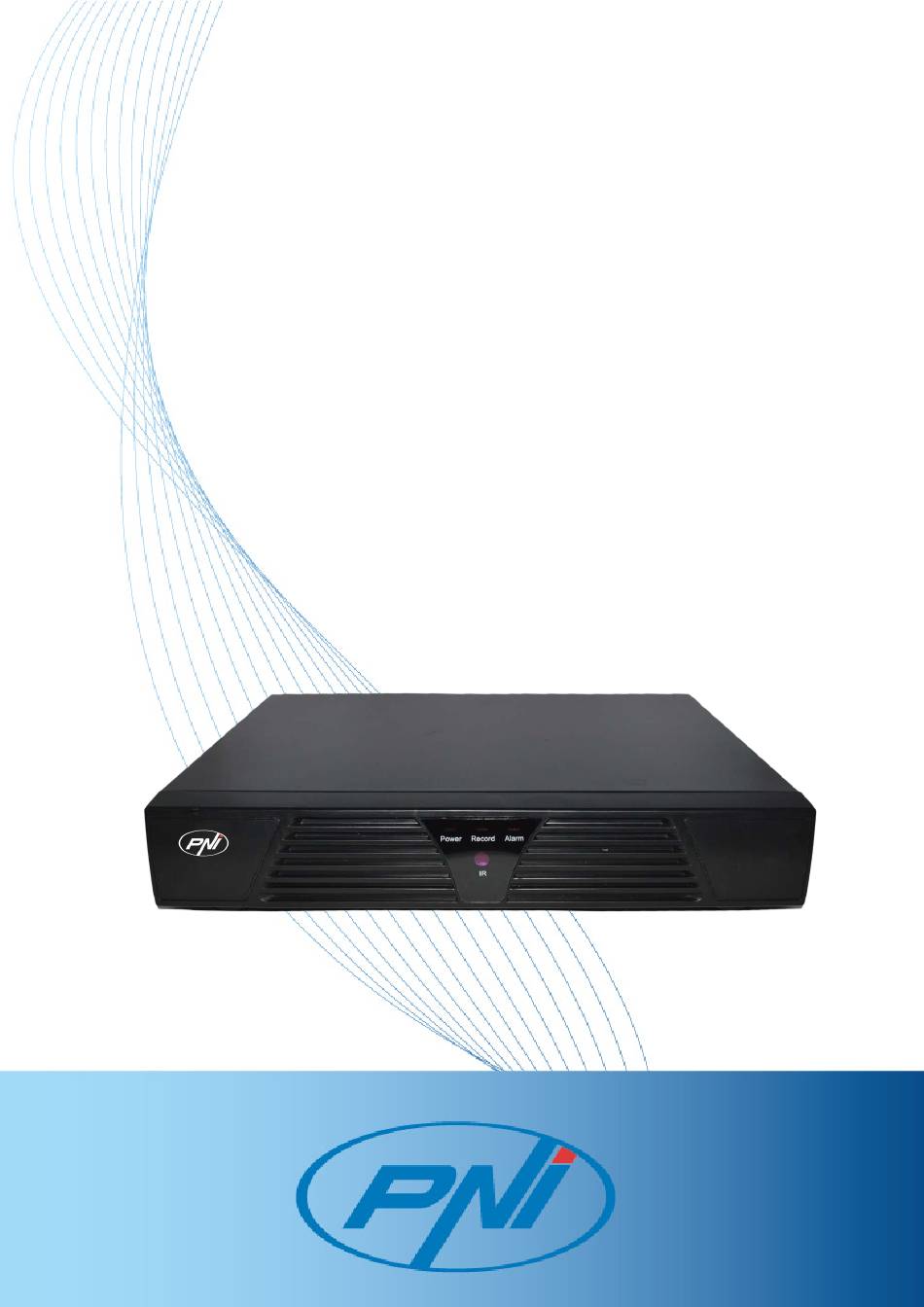

  • Page 1 User manual NVR PNI House PTZ720P Page 1...
  • Page 2 Welcome Thank you for purchasing our NVR! This manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series NVR features and functions, as well as a detailed menu tree.

  • Page 3: Table Of Contents

    Directory 1 Production Introduction ..........................4 1.1 Product overview ........................... 4 1.2 Main functions ..........................4 2 Open-package check and cable connections ..................6 2.1 Open-package check ........................6 2.2 Hard disk installation ........................6 2.3 Audio and video input and output connections ................7 2.3.1 Video input connections ......................
  • Page 4 3.5.2 Encode ..........................36 3.5.3 Network ..........................37 3.5.4 NetSevice .......................... 38 3.5.5 GUI Display ........................44 3.5.6 PTZ ............................ 46 3.5.7 RS232 ..........................46 3.5.8 Tour ............................ 47 3.6 Advanced ............................. 48 3.6.1 HDD Manage ........................48 3.6.2 Account ..........................49 3.6.3 Online user ........................

  • Page 5: Production Introduction

    1 Production Introduction 1.1 Product overview The series DVR is designed specially for security and defence field which is an outstanding digital surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264mp video compressed format and G.711A audio compressed format which insures the high quality image, low error coding ratio and single frame playing.
  • Page 6 individual real-time video recording as well as searching, playback, network surveillance, recording check, downloading and so on multi-playback mode zoom at arbitrary region Net operating through net tele-surveillance in the real time tele-PTZ control tele-recording check and real-time playback Communication interface RS485 interface which fulfills the alarm input and PTZ control standard ethernet network interface which fulfills the telecommuting function Intelligent operating...

  • Page 7: Open-Package Check And Cable Connections

    2 Open-package check and cable connections 2.1 Open-package check When you receive the DVR, please check first . First, please check whether there is any visible damage to the package appearance. The protective materials used for the package of the DVR can protect most accidental clashes during transportation. Then, please open the box and get rid off the plastic protective materials.

  • Page 8: Audio And Video Input And Output Connections

    ④fix the screw of hard disk ⑤ connect the data wire ⑥ connect the power wire ⑦cover the machine ⑧ fix the co ver 2.3 Audio and video input and output connections 2.3.1 Video input connections The video input port is BNC connector plug. The demand of input signal is PAL/NTSC ,75Ω).

  • Page 9: Front Equipment Grounding Note

    signal quality. D. The 485 AB lines of DVR can not connected with other 485 output equipments paralleled. E. The voltage between the AB lines of the decoder must be less than 5V. 2.5、Front equipment grounding note Bad grounding can lead to the burnout of the chip. 2.6 Speed dome connections 1、Connect the 485 lines of the speed dome with the DVR 485 interface.

  • Page 10: Turn On

    3 Basic operation Note: The button in gray display indicates nonsupport. 2.7 Turn on Plug the power supply and turn on the power supply switch. Power supply indicator light shining indicates turning on the video recorder. After the startup you will hear a beep. The default setting of video output is multiple-window output mode.

  • Page 11: Preview

    can’t be revised; user default is the default login user whose permission can be revised but not its password. Picture 3.1 System Login Password protection: If the password is continuous wrong three times, the alarm will start. If the password is continuous wrong five times, the account will be locked. (Through reboot or after half an hour, the account will be unlocked automatically).

  • Page 12: Main Menu

    Picture 3.2 Shortcut Menu 3.1.1 Main menu When you login, the system main menu is shown as below. Picture3.3 Main Menu 3.1.2 Playback There are two methods for you to play the video files in the hard disk. 1、 In the desktop shortcut menu. Page 12...
  • Page 13 2、 Main menu>Record->Playback Note: The hard disk that saves the video files must be set as read-write or read-only state.(4.5.1) Picture 3.4 video playback 1. listed files 2. file information 3. file searching 4. file backup 5. Operation hint 6. Playback control Note: The storage must be installed before the file backup.
  • Page 14 Picture 3.5 detect the storage Detect: Detect the storage connected with the DVR such as hard disk or universal disk. Erasure: Choose the file to delete and click erasure to delete the file. Stop: Stop the backup. Backup: Click backup button and the dialog box is popped up. You can choose the backup file according to the type, channel and time.
  • Page 15 【File searching】Search the file according to the searching parameter. Picture 3.7 file searching File type: Set the searching file type. Channel: Set the searching channel. Start Time: Set the searching time scan. 【Playback control】Refer to the following sheet for more information. Button Function Button...

  • Page 16: Record Mode

    3.1.3 Record Mode Please check current channel status: “○” means it is not in recording status, “●” means it is in recording status. Picture 3.8 Record Mode 【Schedule】Record according to the configuration. 【Manual】Click the all button and the according channel is recording no matter the channel in any state.
  • Page 17 【Speed】Set the PTZ rotation range. Default range: 1 ~ 8. 【Zoom】Click button to adjust the zoom multiple of the camera. 【Focus】Click button to adjust the focus of the camera . 【Iris】Click button to adjust the iris of the camera. 【Direction control】Control the PTZ rotation. 8 directions control is supportive.(4 directions in Front panel is supportive ) 【High speed PTZ】Full-screen show channel image.
  • Page 18 Preset point input blank Preset button Picture 3.11 Preset Settings 2）Preset Point Calls In Picture 3.10, click Page Shift button, enter PTZ control interface as shown in Picture 3.12. In the input blank, write the preset points, then click Preset button, PTZ turn to the corresponding preset point.
  • Page 19 been set up) Step 3: repeat step1 and step2 , until set out all the preset designated cruise lines。 Remove Preset：Please input preset value in the blank, click Remove Preset button, then remove the preset points. Remove Cruise Line：Input the number of cruise line, click Remove Cruise Lines button, then remove the cruise lines set。...
  • Page 20 Scan value blank Scan Button Picture 3.14 Scan Setup 2）Scan Calls In Picture 3.10, click Page Shift button, then enter PTZ control menu as shown in Picture 3.12. Please input the number of scan in the value blank , then click Scan button，PTZ begins to work on the scan line .
  • Page 21 2）Boundary Scan Calls In Picture 3.10, click Page Shift button, then enter PTZ control menu as shown in Picture 3.12. Please input the number of scan in the value blank , then click Scan button，PTZ begins to work on the scan line . Click Stop button to stop. 5、Horizontal Rotating Click Horizontally Rotating button, PTZ begins to rotate horizontally (relative to the original position of the camera).

  • Page 22: Color Setting

    3.1.5 Color setting Set the selective image parameters (current channel for single window display and cursor place for multi-window display). You can use the desktop shortcut menu and enter the interface. The image parameters include: tonality, brightness, contrast, saturation. You can set different parameters at different time sections.

  • Page 23: Window Switch

    Picture 3.20 Logout/Shutdown/Reboot the system 【logout】Quit the menu. Offer password next entrance. 【shut down】Quit the system. Turn off the power supply. When press the shut down button, there is schedule hint. After three seconds, the system is shut down. Cancel midway is of no effect. 【reboot】Quit the system.

  • Page 24: Main Menu

    3.2 Main menu 3.2 Main menu navigation Main menu Sub menu Function Config Set the recording configuration, recording type, recording time section Record playback Set recording look-up, recording play, video file storage backup Detect or format backup equipment, back the selective files Motion Set motion detect alarm channel, sensitivity, area, linkage parameters: detection...

  • Page 25: Record

    Serial port Configuration Set serial port function, baud rate, date bit, stop bit, check (RS232) Tour Set patrol mode and interval time Hard disk Set appointed hard disk as read-write disc, read-only disc or redundant management disc, clear data, resume date and so on User Modify user, team or password.
  • Page 26 recording in the first startup. You can enter [main menu]> [recording function]> [recording setup] to set. Note：There is at least one read-write hard disk.（refer to chapter 4.5.1） Picture 4.1 Record Config 【Channel】Choose the corresponding channel number to set the channel. Choose the all option to set the entire channels.

  • Page 27: Snapshot Storage

    Detect:Trigger the “motion detect”, “camera mask” or “video loss” signal. When above alarm is set as opening recording, the “detection recording” state is on. The video file type is “M”. 3.3.2 Snapshot Storage Setup snapshot parameters for different channels.At first time it's set for 24hours snapshot continuously, pls go to Main Menu->Record->Snapshot Storage for appropriate settings.

  • Page 28: Playback

    【Record type】Three types:regular,detect and alarm Regular: snapshot at set period Detect:snapshot at set period when motion detect,video blind and video loss which are preset for snapshot enable. 3.3.3 Playback Refer to chapter 3.5.2. 3.3.4 Backup You can backup the video files to external storage through setup. Note：The storage must be installed before the file backup.

  • Page 29: Alarm

    Picture 4.4 File Backup Remove：Clear the file information. Add：Show the file information satisfying the set file attributes. Start/pause：Click the play button to start the backup and click the pause button to stop the backup. Cancel：During backup you can exit the page layout to carry out other functions. 3.4 Alarm Function Alarm functions include: motion detect,video blind, video loss, 3.4.1 Motion Detect...
  • Page 30 Picture 4.4 Motion Detect 【Channel】Choose the set motion detect channel. 【Enable】■ means that the motion detect function is on. 【Sensitivity】Choose in the six options according to the sensitivity. 【Region】Click setup and enter the set area. The area is divided into PAL22X18. Green block means the current cursor area.
  • Page 31 Picture 4.6 set the time section 【Interval】Only one alarm signal is turned on even there are several motion detect signals in the set interval. 【Delay】Delay a few moments and stop when the alarm state is turned off. The range is 10~300 seconds.

  • Page 32: Video Blind

    Picture 4.8 PTZ Activation 【Delay】When alarm is over,recording will last some seconds(10~300sec),then stop. 【Show message】Pop the alarm information dialog box in the local host computer screen. 【Send EMAIL】■ means sending an email to user when the alarm is turned on. Note:Set in the [NetService] and send email.

  • Page 33: Video Loss

    3.4.3 Video Loss When the equipment can not obtain the channel video signal, the video loss alarm is turned on and the linkage function is turned on. Picture 4.10 Video loss Set method: refer to chapter 4.3.1. Motion detect Note:"Advanced" button is the same as rightclick. 3.4.4 Abnormal Analysing and inspecting current software and hardware of the device: When some abnormal events happen,the device will make a relative answer such as show message and buzzer.

  • Page 34: System

    【Event Type】 selecting abnormity you want to inspect 【Enable】 Select it to make sure abnormal function workable 【Show message】 Automatically alarm cue dialog box come out of the main screen 【Buzzer】 Device will have two long noise “di di” while alarm is happening 3.5 System setup Set the system parameters such as General,Encode,NetWork,NetService,GUI display,PTZ configure, RS232 and Tour setup.

  • Page 35: Encode

    【DVR No.】Only when the address button in the remote controller and the corresponding DVR number is matched, the remote operation is valid. 【Video Standard】PAL or NTSC. 【Auto Logout】Set the latency time in 0-60. 0 means no latency time. 【DST】Choose the summer time option and pop the dialog box as followed. Picture 4.14 DST (week) Picture 4.15 DST (date) 3.5.2 Encode setup...
  • Page 36 Picture 4.16 Encode setup 【Channel】Choose the channel number. 【Compression】Standard H.264 main profile. 【Resolution】Resolution type:D1/ HD1/CIF / QCIF. 【Frame Rate】P:1 frame/s~25 frame/s; N: 1 frame/s~30 frame/s 【Bit Rate Type】You can choose limited code stream or variable code stream. When you choose the variable code stream there are six image quality options.

  • Page 37: Network

    3.5.3 Network setup Picture4.17 Network 【Net Card】You can choose cable network card or wireless network card. 【DHCP Enable】Obtain IP address automatically(not suggested) Note：DHCP server is preinstalled. 【IP address】Set the IP address. Default: 192.168.1.10. 【Subnet mask】Set the subnet mask code. Default: 255.255.255.0. 【Gateway】Set the default gateway.
  • Page 38 functions or double click the service button to configure the parameters. Picture 4.18 NetService 【PPPoE setup】 Picture4.19 PPPOE Input the user name and password that ISP（Internet service provider）provides. After saving it reboot up your system. Then the DVR will build a network connection based on PPPoE. The IP address will change into dynamic IP address after above operation is well done.
  • Page 39 Picture 4.20 NTP The NTP server must be installed in the PC. Host computer IP:Input the IP address installed NTP server. Port:Default: 123. You can set the port according to NTP server. Time zone: select your local time zone Update Period:The same with the NTP server check interval. Default: 10minutes. 【EMAIL setup】...
  • Page 40 Port:Email server port number. SSL:Decide whether using Secure Socket Layer protocol to login. User Name:Apply the email server user name. Password:Input the password corresponding to the user. Sender:Set the email sender address. Receiver:Send the email to appointed receivers when the alarm is turned on. You can set three receivers at most.
  • Page 41 Local domain name：Provide the domain name registered by DDNS. User name：Provide the account registered by DDNS. Password：Provide the password registered by DDNS. When the DDNS is successfully configured and start, you can connect the domain name in the IE address column to visit. Note：The DNS setup must be configured correctly in the network setup.
  • Page 42 【User Name】User name of FTP 【Password】Password of user 【Max File Length】Max length for upload files at every packed,default 128M 【DirName】Directory of uploading files 【Wireless Config】ADSL through 3G net card,use CMS to visit and config the device Picture 4.25 Wireless Config 【Enable】Choose Enable to make all settings available 【Type】Dial type,default AUTO 【Wireless AP】3G access point...
  • Page 43 Picture 4.26 Mobile Monitor Setup 【Enable】 Select it to make sure abnormal function workable 【Port】 It’s a port of mobile monitoring which you need to make a router mapping of if want to visit it by mobile 【UPNP】UPNP protocol can auto port forwarding on router,make sure UPNP is running on router before use it.

  • Page 44: Gui Display

    3.5.5 GUI Display Configure the video output parameters including the front output mode and code output mode. Front output：In the local preview mode include: channel title, time display, channel title, record status, alarm status,bitrate info, transparency and region cover. Code output：In the network surveillance and video file mode include: channel title, time display, channel title, record status, alarm status,bitrate info, transparency and region cover.

  • Page 45: Ptz

    【Resolution】set display resolution. 【Channel】Choose the set code output channel number. 【Region Cover】 means the selective state. Click the cover area button and enter the corresponding channel window. You can cover the arbitrary using mouse. (Black region is for output) 【Time display】and 【Channel Title】 3.5.6 PTZ setup Picture 4.29 PTZ setup 【Channel】Choose the dome camera input channel.

  • Page 46: Advanced

    four windows, nine windows, sixteen windows patrol display or single display. Picture 4.31 tour setup 【interval】Set the patrol switch interval. The set range is 5-120 seconds. Note： means turn off/on the patrol. 3.6 Advanced 3.6.1 HDD Manage Configure and manage the hard disk. The menu displays current hard disk information: hard disk number, input port, type, status and overall capability.

  • Page 47: Account

    Picture4.32 HDD Manage 3.6.2 Account Manage the user purview. Note：1. The character length is 8 bytes at most for the following user and user team name. The blank ahead or behind the character string is invalid.The middle blank in the character string is valid. Legal characters include: letter, number, underline, subtraction sign, dot.
  • Page 48 Picture 4.33 Account 【Modify User】Modify the existed user attribute. 【Modify Group】Modify the existed team attribute. 【Modify Password】Modify the user password. You can set 1-6 bit password. The blank ahead or behind the char string is invalid. The middle blank in the char string is valid. Note：The user who possess the user control purview can modify his/her own or other users password Picture 4.34 Modify Password...
  • Page 49 We recommend that the common user’s purview is lower than the advanced user. Picture 4.35 add user 【Add Group】Add a user team and set the purview. There are 36 different purviews: shut down the equipment, real time surveillance, playback, recording setup, video file backup and so on. Picture 4.36 Add Group 【Delete User】Delete the current user.

  • Page 50: Online User

    Picture 4.37 Delete Group 3.6.3 Online User Look up the network user information in the local DVR. You can choose the network user and cut the connection. Then the user is locked until next boot-strap. Picture 4.38 Online User 3.6.4 TV adjust Refer to chapter 3.5.7 .

  • Page 51: Auto Maintain

    3.6.5 Auto Maintain The user can set the auto reboot time and auto file deleting time limit. Picture 4.39 Auto maintain 3.6.6 Restore The system restore to the default setup. You can choose the items according to the menu. Picture 4.40 Restore Page 51...

  • Page 52: Upgrade

    3.6.7 Upgrade Upgrade Picture 4.41 【 Upgrade】choose USB interface. 【Upgrade file】choose the file which needs upgraded. 3.6.8 Device Info Provide device interface info like audio in,alarm in/out to be conveniently used for user. Picture 4.42 Device Info. 3.7 Info 3.7.1 HDD info Display the hard disk state: hard disk type, overall capability, residual capability, the recording time and so on.

  • Page 53: Bps

    Picture 4.43 HDD Info Clue:○ means that the hard disk is normal. X means that the hard disk is broken-down.- means that there is no hard disk. If the user need to change the damaged hard disk, you must shut down the DVR and take up all the damaged hard disks,then install a new one.

  • Page 54: Log

    Picture 4.44 BPS 3.7.3 LOG Look up system log according to the set mode. Log information include: system operation, configuration operation, data management, alarm affair, recording operation, user management, file management and so on. Set the time section to look up and click the look up button.

  • Page 55: Version

    3.7.4 Version Display the basic information such as hardware information, software edition, issue data and so on. Picture 4.46 Version 3.8 Shut down system Refer to chapter 3.5. Page 55...
