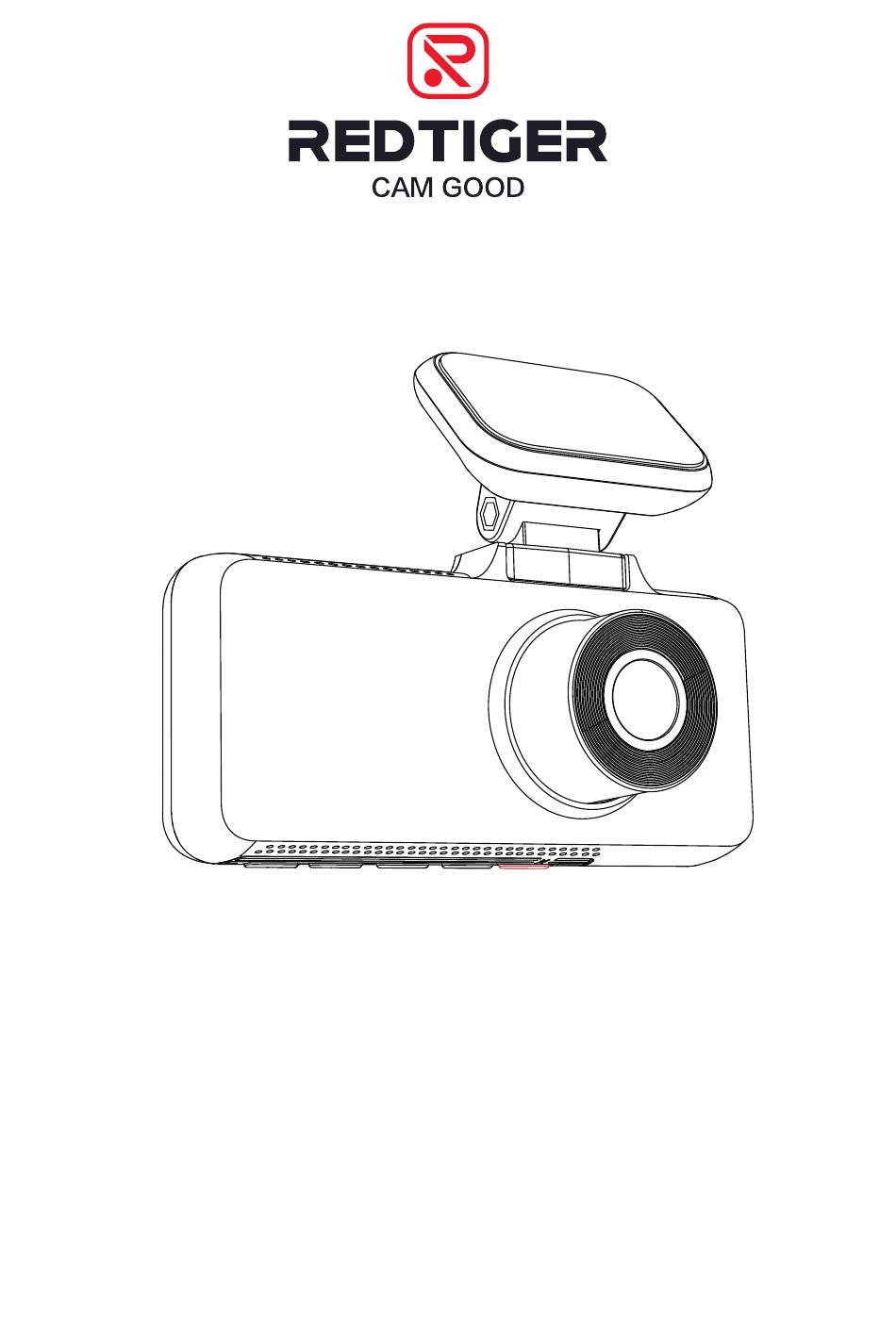

- Page 1 V2.0 User Manual redtigercam.com The information in this manual is subject to change without notice.
- Page 2 IC WARNING This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: that may cause undesired operation of the device. Radiation Exposure: This equipment complies with Canada's To maintain compliance with IC's RF Exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
- Page 3 Content Notice ........... Package Contents .
- Page 4 Notice • Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. • Improper installation will void the manufacturer's warranty. The installation instructions do not apply to all types of vehicles and are written as guidelines to assist in installing the system.
- Page 5 Item Name F17 Dash Cam Video Format Screen Size 3" IPS Photo Format Front4K+Inside1080P+Rear1080P Recording Front2.5K+Inside1080P+Rear1080P Resolution Front2.5K+Inside2.5K/Front4K+Rear1080P Lens F1.5 Input DC 12V/24V -4°F~158°F DC 5V-2.5A Temperature 32GB-256GB Warranty Micro SD card 1 Year (64GB included) Period Note: If you have any problems during use, we will provide 1 year free After registering information on redtigercam.com, you may extend...
- Page 6 · F17 4K Dash cam · GPS Mount · Power Supply Cable · Rear Cam Cable · 1080P Rear Camera with Car Charger · 3M Adhesive · · Tool · Electrostatic · Cable Clips*5 · User Manual Sticker *2...
- Page 7 Micro SD GPS Mount Card slot Rear Camera input terminal (AV-IN) Type-C 4 infrared lights IPS Screen Inside Camera 3M Adhesive Front Camera Power button Menu button OK button Left button Right button...
-
Page 8: Left Button
Power Button Recording Mode: • • Setup Mode: • Playback Mode: • Menu Button Recording Mode: • • Setup Mode: • Playback Mode: • Left Button Recording Mode: • Setup Mode: • Playback Mode: •... - Page 9 Recording Mode: • Setup Mode: • Playback Mode: • • played OK Button Recording Mode: • Setup Mode: • Playback Mode: •...
- Page 10 • G-Sensor sensitivity Whether to connect the hardwired kit and set up parking monitoring Fatigue driving function is on GPS status Wi-Fi status...
- Page 11 Camera system sound status Voice recording status Which camera is being displayed Recording status and recording time Emergency recording is on Date and time of the camera Photograph Playback Switching from front, inside and rear cameras...
- Page 12 • Press right button to enter Playback mode. Press left or right button to select the folder you want to play. Press OK button to watch the recorded video. Press the button to delete the current video /all videos.
- Page 13 adjust various functions. Front4K+Inside1080P+Rear1080P Resolution Front2.5K+Inside1080P+Rear1080P Front2.5K+Inside2.5K/Front4K+Rear1080P Format Format SD card. All data will be deleted Loop recording 1/3/5mins Clock Setting Update With GPS Time Style 12h/24h Time Zone Choose Your Time Zone Language Choose Your Prefered Language Wi-Fi ON/OFF G-sensor GPS Info Display GPS signal strength...
- Page 14 OFF/1/3/5min, Screen Saver Rear Cam Flip *Need to connect rear camera Mirror Flip *Need to connect rear camera Fliker Click Tone ON/OFF Sound Record Sound Rocording Date Stamp ON/OFF Speed Stamp ON/OFF Format Reminder Reminder to Clear Data Daylight Saving Time ON/OFF Inside Image...
- Page 15 Speed Units A Reminder Will be Made During Fatigue Driving 1h/2h/3h/OFF Card Speed Card Speed Detection Reset setup Reset.All Settings Help Center Scan the QR code to contact us Version Software Version Note: • For a smooth user experience, we recommend formatting the SD card once a month.
- Page 16 -- Apple APP Store or Google Play Store APP Download search "Redtiger". 2. Turn on the Wi-Fi on the dash cam, the Wi-Fi and SSID and password will appear on the screen. the password to connect.
- Page 17 • REDTIGER-F17_XXXXXX Return to the previous step Switch the front and rear GPS information camera video screens Full screen display Take pictures dash cam settings...
- Page 18 • Note: Please update the Redtiger APP to the latest version to use this function. 1. Disconnect the mobile phone and dash cam Wi-Fi. Connect the phone to lan for 5 seconds, then disconnect. Finally, connect the dash cam Wi-Fi.
- Page 19 Video play window (Front) Map and track display Play control panel Speed and driving state indication Play list Note: button and drag and drop it onto the video player to play it.
- Page 20 Available when the hardwire kit is connected. * not included in the package • Mode 1: Dash cam will record the video in the parking state at a frame rate of 1fps in the next 12/24 hours. • Mode 2: G Sensor Trigger Recording...
- Page 21 WARNING Please make sure to connect all cameras and wires before power on the cam screen, otherwise, the camera cannot work properly. Please follow the instructions below for the •...
- Page 22 • it to where you want to stick it. Attach the front camera to the...
- Page 23 • The car charger is connected to the cigar socket. Connect the other end of the car charger to the dash cam. Use the crowbar to run the power cable along the front windshield and the roof, and hide the cable down the A-pillar, so as not to block the driver's sight and cause danger.
- Page 24 • it to where you want to stick it. Attach the camera to the...
- Page 25 • 1. Clean and reconnect the probe on the main unit and bracket. windshield, radio antenna, or radar detector. 2. Move your car to an open area. 3. If the GPS icon is , it means the GPS signal is good. If the GPS icon is , it means there is no GPS signal.
- Page 26 • 1. Make sure you are using the original car charger. accessories. 3. Reset the machine through the small hole at the bottom of the driving recorder. used normally. 6. If it is not resolved, please contact your dedicated customer •...
- Page 27 If you have any problems using or installing the dash cam, please contact us with any questions. Help Center WhatsApp redtiger_dashcam After sales: help@redtigercam.com Business Cooperation: contact@redtigercam.com +1 888 966 8028 (US)
- Page 28 Check us out here. Instagram: @redtiger_dashcam Facebook: Redtiger Dash Cam www.redtigercam.com...
