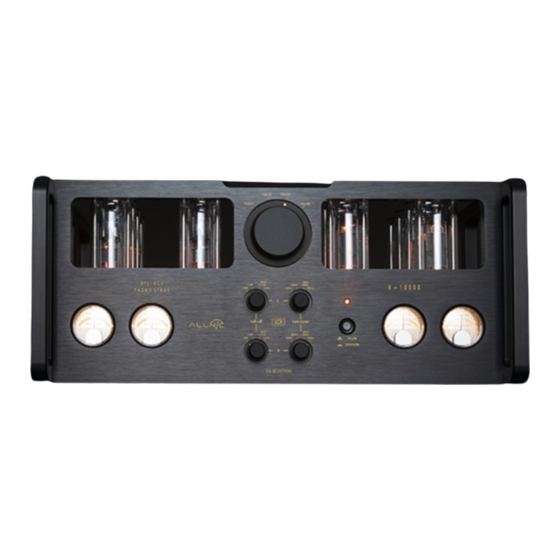

- Page 1 ALLNIC AUDIO H-10000 OTL/OCL “SIGNATURE” PHONO-STAGE PREAMPLIFIER OWNER’S MANUAL...
- Page 2 PREAMPLIFIER Thank you for purchasing the Allnic Audio H-10000 OTL/OCL Signature Phono-stage Preamplifier. We are certain your trust in Allnic Audio and its dealers worldwide, as well as your appreciation for the sound of this high- quality device, will be rewarded by its excellent operation for years to come.
-
Page 3: Table Of Contents
SPECIFICATIONS WARRANTY FIGURES TABLES Please read about SAFETY before you attempt to use the H-10000 OTL/OCL Signature Phono-stage Preamplifier - we care about our customers and the equipment, and we want you to enjoy this product for a long time! -
Page 4: Introducing The H-10000 Otl/Ocl Signature Phono-Stage Preamplifier
The H-10000 OTL/OCL Signature is Allnic Audio’s top-of-the line phono-stage preamplifier. It is Allnic Audio’s only Output Transformer-less (OTL) and Output Capacitor-less (OCL) phono-stage preamplifier. - Page 5 this, Allnic uses a “floating power supply circuit”, a design that deals with the issue by not creating any DC potential in the first place, or such a small potential that it is harmless. The H-10000’s OTL/OCL circuit is basically SEPP, “Single-Ended, Push-Pull”, so a “cancellation circuit” is required to adjust the balance of signal between the upper and lower power output tubes’...
- Page 6 RIAA equalization is a form of establishing a flat frequency response for the playback of recorded music. The necessity for this equalization process arises from mechanical difficulties inherent in record production. To prevent the cutting needle from over-cutting into the next record groove in the bass, as a record is cut, some bass frequencies are attenuated.
- Page 7 LCR RIAA unit and has developed a 600 ohms impedance matching method. In addition, the H-10000 OTL/OCL Phono-stage preamplifier features Class A, balanced operation. As are all Allnic Audio products, the H-10000 OTL/OCL is fully RoHS (EU Reduction of Hazardous Substances regulation) compliant in construction and materials.
-
Page 8: What's In The Box
• Do not attempt any repairs. • Do not remove the units’ chassis covers except as directed by this manual or with specific authorization from Allnic Audio or its authorized representative. • Keep the power cords away from heat sources. -
Page 9: Cleaning
INITIAL SET-UP LOCATION, LOCATION, LOCATION Like all audio products using tubes, the Allnic Audio H-10000 OTL/OCL phono-stage preamplifier and its power supply need to be placed on a solid stand in a location that provides good air circulation around both the phono stage and the power supply. -
Page 10: Power Connections
POWER CONNECTIONS The H-10000 power supply uses a standard three prong male IEC connection for AC input. You need to use a power cord with a female three prong IEC connector at one end. The H-10000 power supply connects to the phono stage itself using the two (2) supplied umbilical cables. -
Page 11: Moving Coil (Mc) Step-Up Transformer Controls
are closest to the outside edge of the chassis. The output connections for each pair are arranged vertically with the left channel connections above the right channel connections (See Figure 4). You may have both balanced and unbalanced outputs connected at the same time. MOVING COIL (MC) STEP-UP TRANSFORMER CONTROLS The moving magnet (MM) input impedance of the H-10000 is 47KΩ... -
Page 12: Initial Power On
When the power supply is on, the light on its front panel will illuminate and, if it is in the “operate” position, the light above the muting switch on the front panel of the Allnic Audio H-10000 OTL/OCL phono-stage will illuminate after a brief automatic protective “mute” period. -
Page 13: Tubes
When you are finished listening, turn off your power amplifier(s); then turn off your preamplifier and then turn off the H-10000 last by pressing the on-off switch on the front panel of the power supply. In the case of any failure, please contact your Allnic Audio authorized representative for assistance. TUBES The H-10000 OTL/OCL Signature uses the following tubes (Please see Figure 5): •... -
Page 14: Specifications
SPECIFICATIONS FOR THE ALLNIC AUDIO H-10000 OTL/OCL SIGNATURE PHONO-STAGE PREAMPLIFER Inputs: Moving Coil (MC) × two (2) pairs unbalanced (RCA) - Inputs 1 and 2 Moving Magnet (MM) x two (2) pairs unbalanced (RCA) – Inputs 3 and 4 Outputs:... -
Page 15: Warranty
After expiry of the applicable warranty period or if the warranty is void, Allnic Audio and its authorized representatives are not responsible for nor obligated in any manner whatsoever to undertake, or to cover or reimburse the costs of any repairs or modifications to this product. -
Page 16: Figures
FIGURES FIGURE 1: H-10000 Power Supply – Rear View... - Page 17 FIGURE 2: H-10000 Power Supply – Front View...
- Page 18 FIGURE 3: H-10000 Front View...
- Page 19 FIGURE 4: H-10000 Rear View...
- Page 20 FIGURE 5: H-10000 Top View...
- Page 21 FIGURE 6: H-10000 Step-up Transformer Gain Controls...
-
Page 22: Tables
TABLES Table 1: H-10000 Some Common Equalization Settings RECORD LABEL TURN-OVER ROLL-OFF HMV, EMI-ANGEL, 500Hz -16dB (Sometimes -13.7dB) WESTMINSTER, EPIC, & COLUMBIA (Early versions 250Hz) (Early versions 0dB) 500Hz -11dB DECCA *Early ffrr 700Hz -11dB L'OISEAU-LYRE 500Hz -13.7dB ARGO, RCA (New Orthophonic), & BRUNSWICK (RIAA) 700Hz...
