Not to scale
Scan the QR for the digital

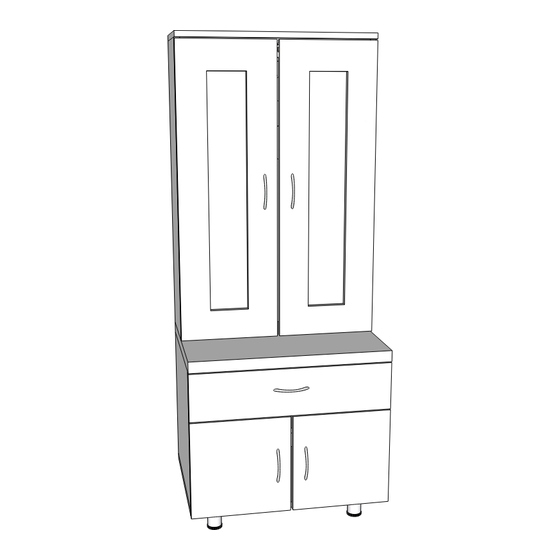

This guide works for the following SKUs
MWCS-23-116-391-602418
MWCS-23-116-401-602418
MWD-23-108-391-482416
Not to scale
Assembly Guide #06
Mandir Assembly Guide # 06
v2.0
© 2022. The Mandir Store®. All Rights Reserved.
Page
1
of
24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWCS-23-116-391-602418 and is the answer not in the manual?

Questions and answers

Summary of Contents for The Mandir Store MWCS-23-116-391-602418

  • Page 1 Not to scale Assembly Guide #06 Page Mandir Assembly Guide # 06 Scan the QR for the digital This guide works for the following SKUs MWCS-23-116-391-602418 MWCS-23-116-401-602418 MWD-23-108-391-482416 Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 2: Table Of Contents

    Step 2: Prepare cabinet doors Step 3: Assemble the base structure Step 4: Affix the back panel to the base structure Step 5: Attach the center panel and decorate the mandir Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 3: Step 1: Assemble The Inner Drawer(S)

    Gather the required planks K, L, M, N, O and P to assemble the inner drawer. Required hardware is shown below

 handle screw drawer screw minifix pull handle philips screw driver x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 4 1.a. screw 8 mini fixes into the pre-drilled holes on planks K, M and O ↓ 1.b. attach side panels K and M against rear panel L and tighten CAM(s) to secure ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 5 1.c. flip the structure such that part K is to your right and attach part N is such that it is flush with the back of part L ↓ 1.d. secure one handle S on the drawer plank O using the provided screws ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 6 1.e. attach the drawer front O on the drawer structure and tighten the CAMs to secure ↓ 1.f. simply rest platform extension plank P on the drawer box ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 7: Step 2: Prepare Cabinet Doors

    Gather the required planks X and Y to prepare the cabinet doors Required hardware is shown below

 hinge screw handle screw pull handle philips screw driver x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 8 2.a. secure the door hinges in place on doors X and Y using the provided screws ↓ 2.b. secure the handles S on the doors X and Y using the provided screws ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 9: Step 3: Assemble The Base Structure

    Gather the required planks AA, F, G, H, I, J and Z to assemble base storage structure


 Required hardware is shown below leg screw legs minifix philips screw driver x16 | optional x4 | optional x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 10 3.a. screw 12 mini fixes into the pre-drilled holes on parts G and I ↓ 3.b. attach planks H, AA and Z to side plank G, tighten CAM(s) to secure in place ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 11 ↓ 3.d. (optional) attach legs to the bottom of plank F, you can simply screw the legs in by applying pressure on the screw head ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 12 3.e. screw 12 mini fixes into the pre-drilled holes on planks F and J ↓ 3.f. place base plank F onto the assembled structure, tighten CAM(s) to secure it↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 13 3.g. flip the assembled structure and place plank J on it, tighten CAM(s) to secure it↓ 3.h. gently pull the inner slides from the base structure and slide the drawer box on them ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 14 Not to scale Assembly Guide #06 Page 3.i. clip on the male door hinges on doors X and Y onto the female hinges on the base ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 15: Step 4: Affix The Back Panel To The Base Structure

    Gather the required parts A, A1, A2, A3, A4, A5, A6 and C as shown below Required hardware is shown below


 hood / jharoka screw minifix philips screw driver X3 | optional x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 16 4.b. attach shelf A1 on the left side of plank A, and A2 on the right side. Start from the top row and tighten the CAM(s) before working your way down to other rows. ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 17 4.d. attach shelf A3 on the left side of plank A, and A4 on the right side and tighten the CAM(s) to secure. Do not forget to secure the CAM under the shelf facing the side↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 18 ↓

 4.f. attach 6 mini-fixes to the assembled base structure as shown below ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 19 fingers. Tighten the CAM(s) to secure it ↓

 4.h. attach part C (Jharoka) to the back of part A5 ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 20 4.j. attach male hinges and handles to doors as shown in steps 2.a and 2.b. and then clip on the doors as done before in step 3.i. ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 21: Step 5: Attach The Center Panel And Decorate The Mandir

    Gather the below shown parts to finish decorating your mandir. Required hardware is shown below hex bolt hex key / allen key cover plate screw philips screw S hook driver x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 22 5.a. Attach center element / religious symbol part R to the center panel A7↓

 5.b. place the center element inside the mandir by passing the cover plate through ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 23 5.c. using the hex bolts and hex key secure the center panel onto the back panel. Next screw in the cover plate ↓
 5.d. use S hooks for placing small brass bells onto the Jharoka ↓

 Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 24 Note: A socket pin converter may be included in your package based on your delivery location Congratulations! You have now completed the mandir assembly.
 For any questions, comments or suggestions, email us at info@themandirstore.com Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
