Not to scale
Scan the QR for the digital
This guide works for the following SKUs
MWC-08-108-301-753622
MWC-14-108-345-754822
MWC-08-108-301-674818
Not to scale

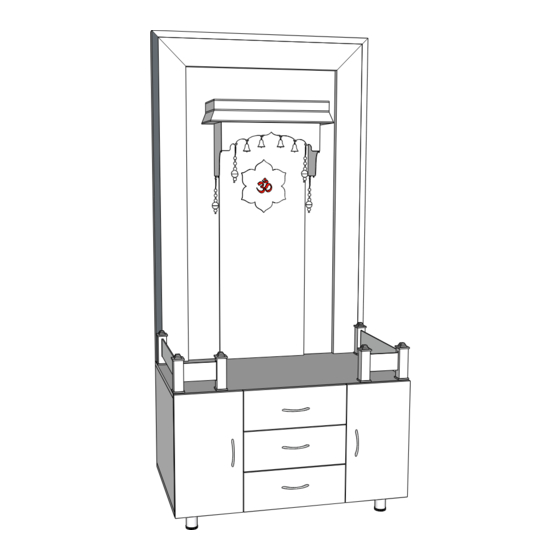

Assembly Guide #03
v2.0
© 2022. The Mandir Store®. All Rights Reserved.
Page
1
of
24

Advertisement

loading
Need help?

Need help?

Do you have a question about the MWC-08-108-301-753622 and is the answer not in the manual?

Questions and answers

Summary of Contents for The Mandir Store MWC-08-108-301-753622

  • Page 1 Not to scale Assembly Guide #03 Page Scan the QR for the digital This guide works for the following SKUs MWC-08-108-301-753622 MWC-14-108-345-754822 MWC-08-108-301-674818 Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 2 Gather the required planks K1, L1, M1, N1, O1 and P to assemble the inner drawer => Drawer 1. Required hardware is shown below
 handle screw minifix pull handle philips screw driver x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 3 1.a. screw 8 mini fixes into the pre-drilled holes on planks K, M and O ↓ 1.b. attach side panels K and M against rear panel L and tighten CAM(s) to secure ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 4 Page 1.c. slide the drawer base panel N along the routed lines ↓ 1.d. secure one handle S on the drawer plank O using the provided screws ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 5 1.e. attach the drawer front O on the drawer structure and tighten the CAMs to secure ↓ 1.f. simply rest platform extension plank P on the drawer box ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 6 1.g. repeat steps 1.a through 1.f to assembly two more drawers ↓ Parts for drawer 2 = K2, L2, M2, N2, O2 = Drawer 2 Parts for drawer 3 = K3, L3, M3, N3, O3 = Drawer 3 Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 7 Gather the required planks X and Y to prepare the cabinet doors Required hardware is shown below hinge screw handle screw pull handle philips screw driver x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 8 2.a. secure the door hinges in place on doors X and Y using the provided screws ↓ 2.b. secure the handles S on the doors X and Y using the provided screws ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 9 Gather the required planks F, G, H, H1, H2, I, J and AA (x2) to assemble base storage structure Required hardware is shown below
 leg screw minifix philips screw driver x16 | optional x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 10 2.a. (optional) you may choose to replace the rubber legs with SS legs on base plank F ↓ 2.b. screw 4 mini fixes into the pre-drilled holes on parts G and I ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 11 2.c. screw 4 mini fixes into the pre-drilled holes on part H ↓ 2.d. screw 20 mini fixes into the pre-drilled holes on parts J and F ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 12 2.d. attach side G to rear plank H, tighten CAM(s) to secure in place ↓ 2.e. attach side plank I to the above assembled structure, tighten CAM(s) to secure it ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 13 2.f. attach side plank H1 to the above assembled structure, tighten CAM(s) to secure it ↓ 2.g. attach side plank H2 to the above assembled structure, tighten CAM(s) to secure it ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 14 2.h. place base plank F onto the assembled structure, tighten CAM(s), x5 each side, to secure it↓ 2.i. flip the assembled structure and place plank J on it, tighten CAM(s), x5 each side, to secure it ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 15 2.j. tilt and slide the two shelves labeled AA onto their respective shelf supports↓ 2.k. gently pull the inner slides from the base structure and slide the drawer Drawer 3 on them ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 16 2.l. repeat step 2.k and place Drawer 2 in the center and Drawer 1 on top ↓ 2.m. clip on the male door hinges on doors X and Y onto the female hinges on the base ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 17 Gather the required hardware, back panel A and the fully assembled base structure Required hardware is shown below hex bolt hex key / allen key x5 or 6 Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 18 Note: Be sure to align all the bolts using your fingers before fastening any one of the bolts completely. Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 19
 Required hardware is shown below hex bolt hex key / allen key hanger screw philips screw S hook driver x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 20 4.a. slide the jharoka hanger onto the placeholder tiles and fasten the screws to secure ↓ 4.b. repeat the same for the other jharoka hanger side pieces ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 21 4.c. using the hex bolts and hex key secure the hood onto the back panel.
 Note: Make sure the hood is completely flush against the back panel and there are no visible gaps where the hood and the panel meet. Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 22 Once the pillars are laid out, peel the double sided tape on the bottom of the pillar to stick the pillar onto the mandir base. Then slide the longer fences into the provided slots ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 23 ↓ 4.g. use the ’S’ hooks to hang the latkans and brass bells onto the jharoka hanger ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
  • Page 24 Note: A socket pin converter may be included in your package based on your delivery location Congratulations! You have now completed the mandir assembly.
 For any questions, comments or suggestions, email us at team@themandirstore.us Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
